7-3
MIDSECTION
DISASSEMBLY / REASSEMBLY

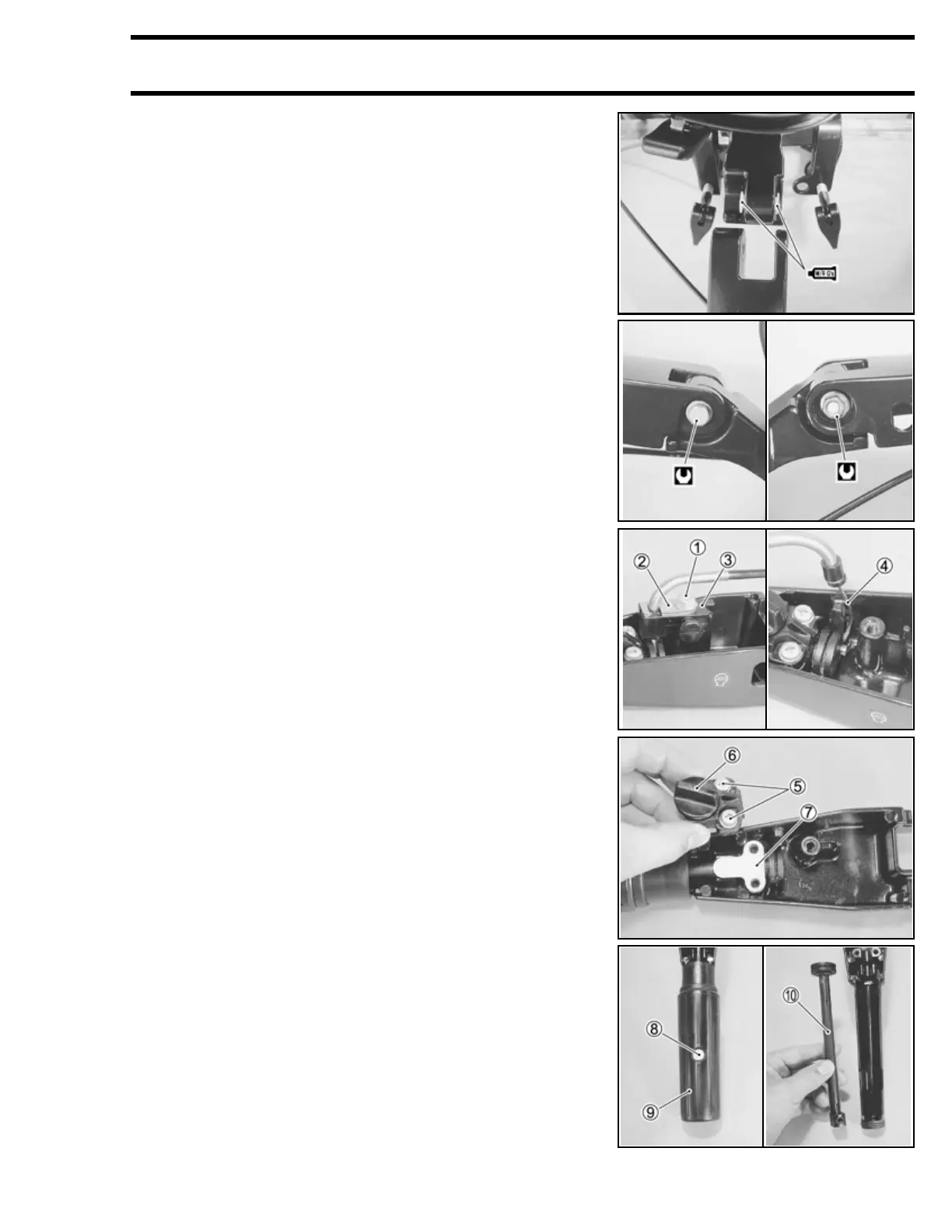

Installation
Installation is reverse order of removal with special attention
to the following steps.
• Apply Triple-Guard grease to the bushings.
 Triple-Guard grease
• Tighten the pivot bolt and the pivot nut to the specified
torque.
 Tiller handle pivot bolt: 12 N·m (1.2 kg-m; 8.5 lb-ft)
 Tiller handle pivot nut: 17 N·m (1.7 kg-m; 12.5 lb-ft)
• Install the throttle control inner cable to the carburetor.
(See page 4-5)
• Check that the throttle control is smoothly operated from
the fully closed position to the fully opened position.
DISASSEMBLY / REASSEMBLY
Disassembly
1. Remove the bolt 1, the plate 2 and the cable stopper
3.
2. Remove the throttle control cable 4 from the drum of the
handle rod.
3. Remove the two screws 5, the throttle adjuster 6 and
the adjuster plate 7.
4. Remove the screw 8 and the control grip 9.
5. Remove the handle rod 0.
