MIDSECTION
STEERING BRACKET / DRIVESHAFT HOUSING / SWIVEL BRACKET / CLAMP BRACKET

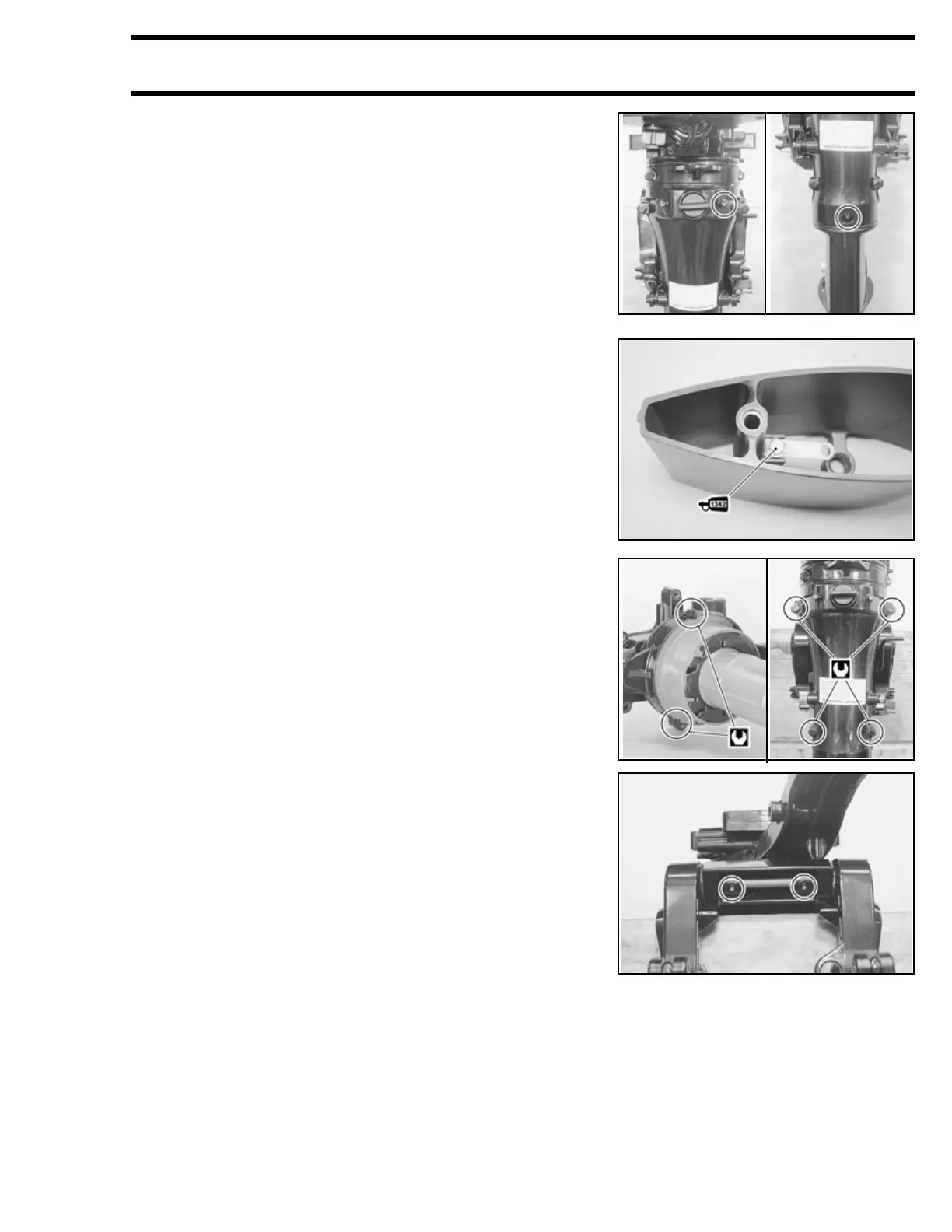

• Tighten the two steering bracket cover bolts to the speci-
fied torque.
Steering bracket cover bolt:
10 N·m (1.0 kg-m; 7.0 lb-ft)
• Tighten the four swivel bracket cover bolts to the specified
torque.
Swivel bracket cover bolt:
10 N·m (1.0 kg-m; 7.0 lb-ft)
• Apply Nut Lock to the water tube guide plate bolt and
tighten the bolt.
Nut Lock
Lubrication
After completing reassembly of the midsection, apply Triple-
Guard grease through each grease nipple.
Triple-Guard grease
