9-3
WIRE / HOSE ROUTING

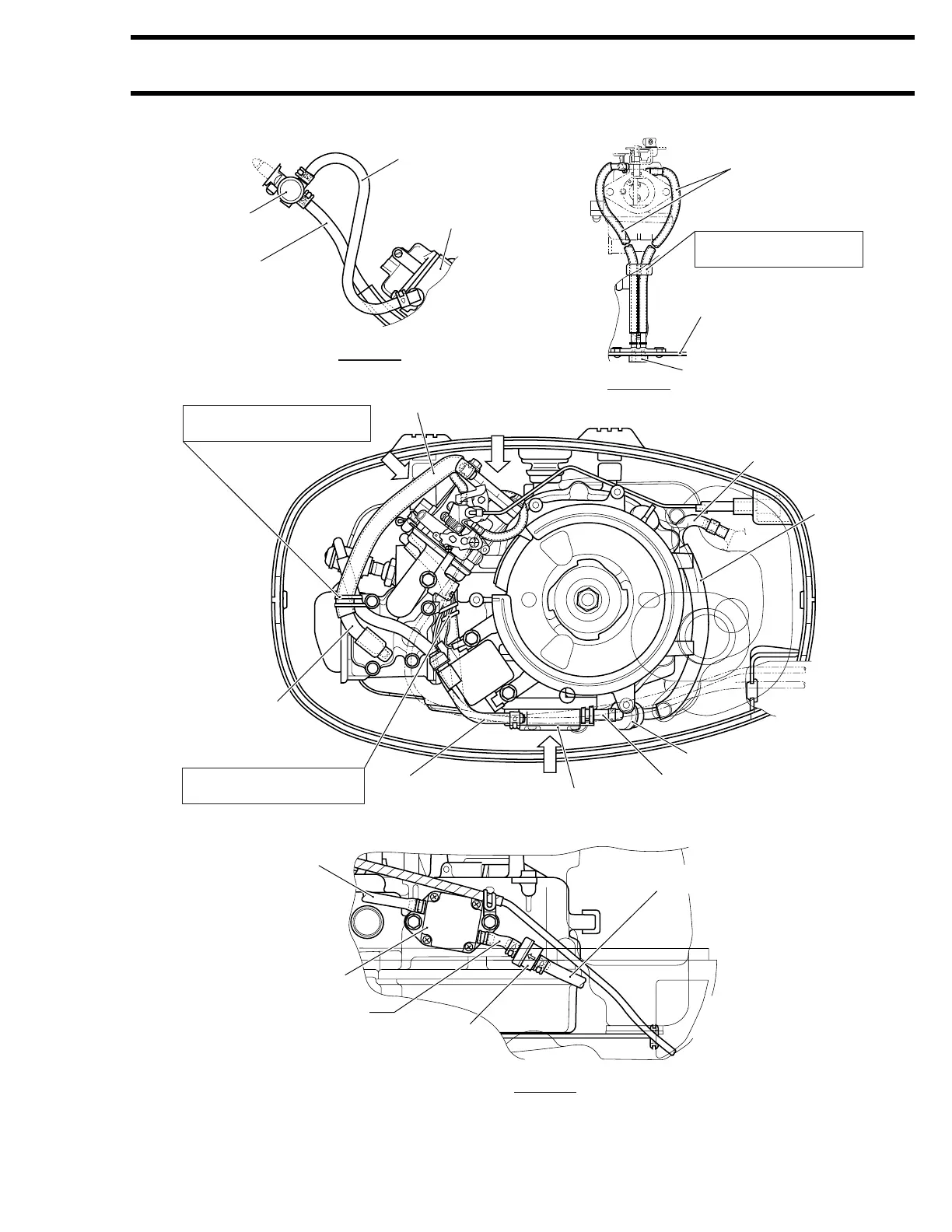

WIRE AND HOSE ROUTING
4 HP Models
VIEW A
VIEW C
VIEW B
Air vent hose
Lower cover plate
Grommet
Protector
Fuel cock
Carburetor
Fuel hose
(Fuel cock to Carburetor)
Fuel hose
(Fuel pump to Fuel cock)
Protector
Clamp:
Fix the hose/protector and the
lead wires.
Clamp:
Clamp:
Air vent hose does not touch
motor cover and recoil case.
C
B
Fuel pump
Fuel hose
(Fuel pump to Fuel clock)
Fuel hose
(Fuel pump to Fuel clock)
Breather hose
Fuel hose
(Fuel filter to Fuel pump)
Fuel hose
(Fuel tank to Fuel filter)
Fuel filter
A
Fix the breather hose/protector
and the high-tension cord.
Fuel hose
(Fuel tank to Fuel filter)
Fuel pump
Fuel filter
Fuel hose
(Fuel filter to Fuel pump)
To Next Page
