BRP Johnson 4HP - Disassembly; Reassembly

4-14
FUEL SYSTEM
FUEL TANK AND FUEL COCK
DISASSEMBLY / REASSEMBLY

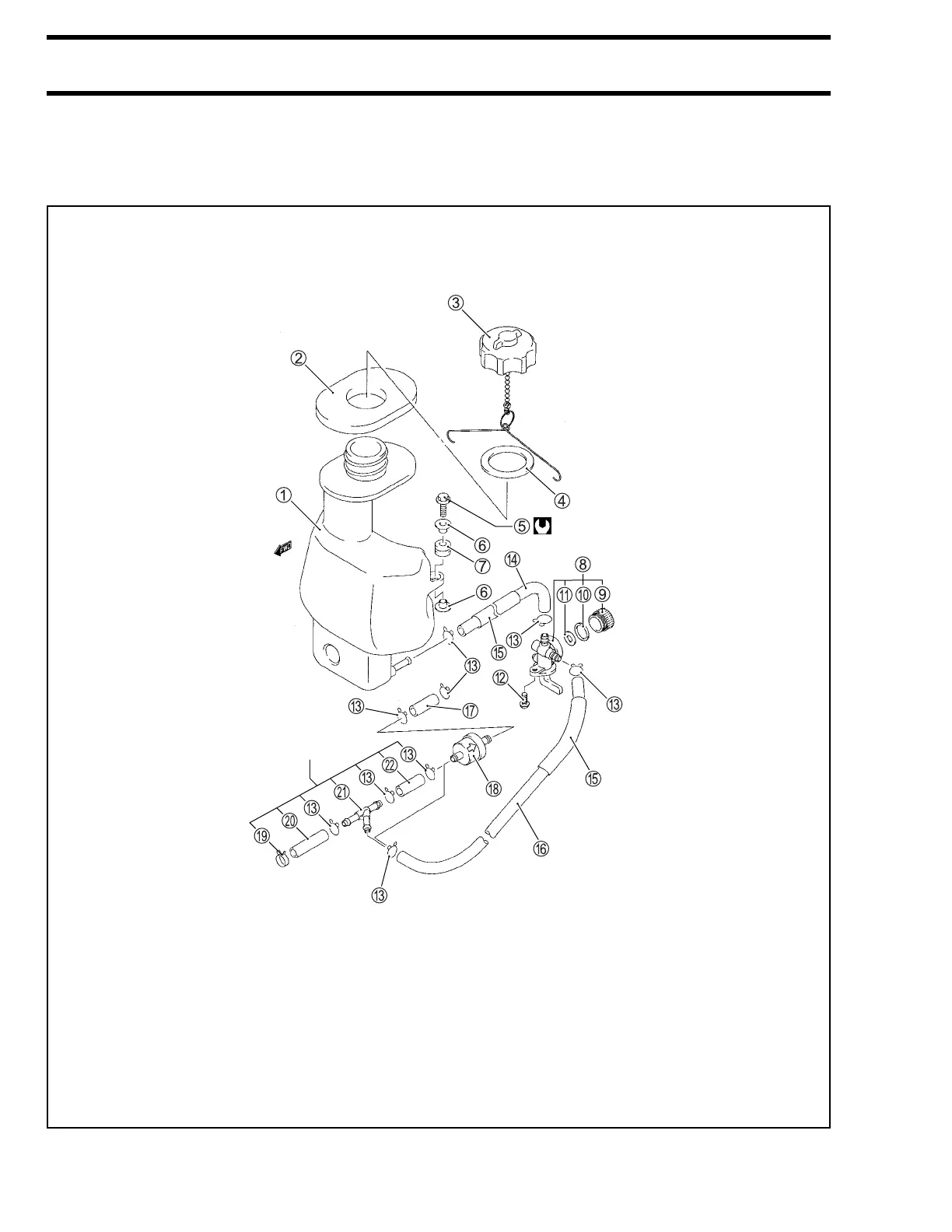

When disassembling or reassembling the fuel tank and the related parts, refer to the construction dia-
gram below.
Built-in fuel tank
1 Fuel tank (1)
2 Cushion (1)
3 Tank cap assembly (1)
4 Gasket (1)
5 Bolt (2)
6 Washer (2)
7 Cushion (2)
8 Fuel cock assembly (1)
9 Cock cap (1)
0 O-ring (1)
A Gasket (1)
B Screw (2)
C Clip (6) for 4 HP
Clip (9) for 5 HP
D Hose (1)
E Protector (2)
F Hose (1)
G Hose (1)
H Fuel filter
I Clip (1)
J Hose (1)
K 3-way joint (1)
L Hose (1)
10 N·m (1.0 kg-m; 7.0 lb-ft)
Only for 5 HP
