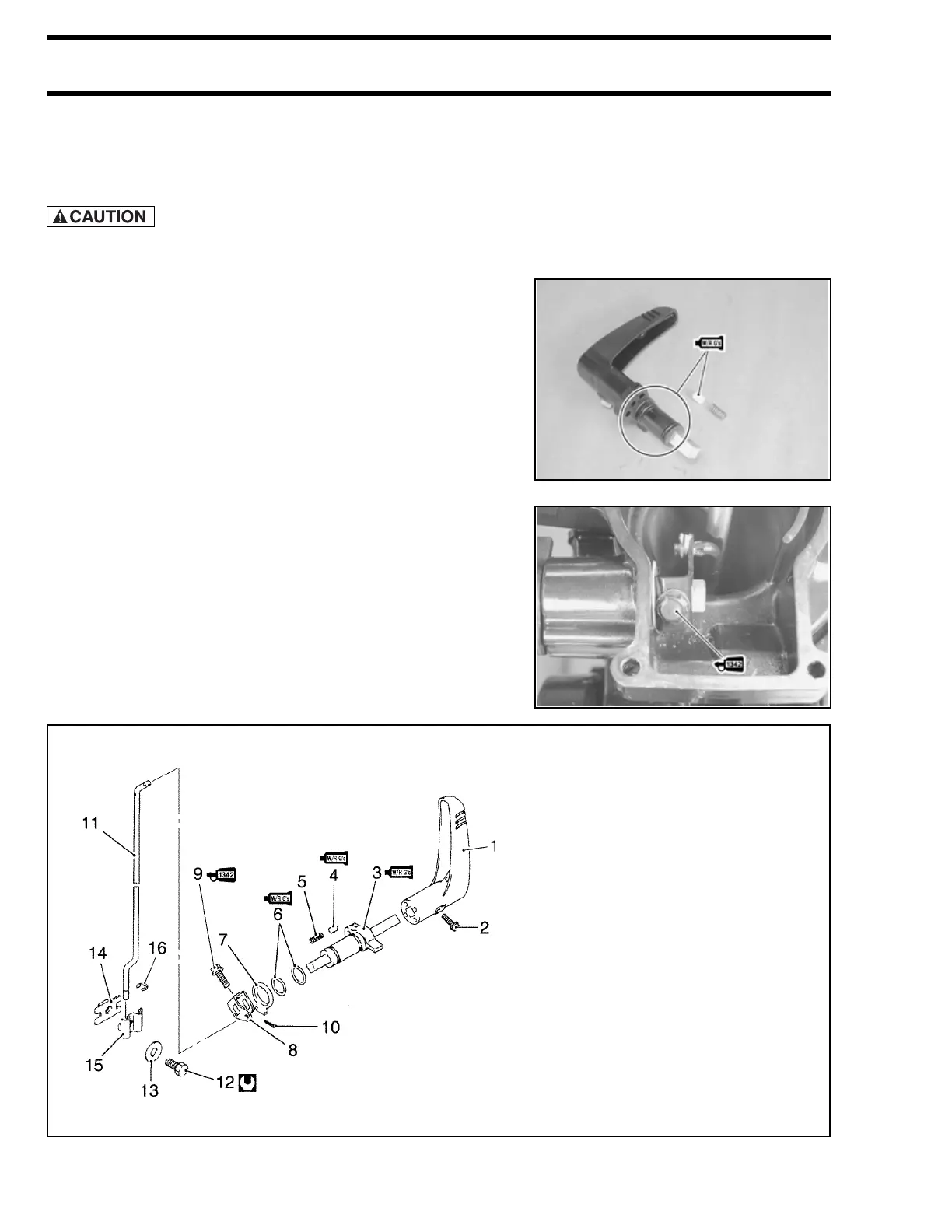

7-6
MIDSECTION
CLUTCH LEVER / ROD
Installation
Installation is reverse order of removal with special attention
to the following steps.
Do not re-use the O-ring, the E-ring and the cotter pin
once removed. Always use new parts.
• If excessive wear or other damage is found on the notch
pin or clutch lever notch plate, replace.
• Apply Triple-Guard grease to the notch pin, the notch holes
and the O-rings on the clutch notch plate.
Triple-Guard grease
• Apply Nut Lock to the clutch rod arm bolt.
Nut Lock
11 N·m (1.1 kg-m; 8.0 lb-ft)
1. Clutch lever (1)
2. Bolt (1)
3. Clutch notch plate (1)
4. Notch pin (1)
5. Spring (1)
6. O-ring (2)
7. Spacer (1)
8. Clutch rod arm (1)
9. Bolt (1)
10. Cotter pin (1)
11. Clutch rod (1)
12. Bolt (1)
13. Washer (1)
14. Connector nut (1)
15. Connector plate (1)
16. E-ring (1)
