BRP Johnson 4HP - Clutch Lever; Rod; Removal

7-5
MIDSECTION
CLUTCH LEVER / ROD
CLUTCH LEVER / ROD
Removal

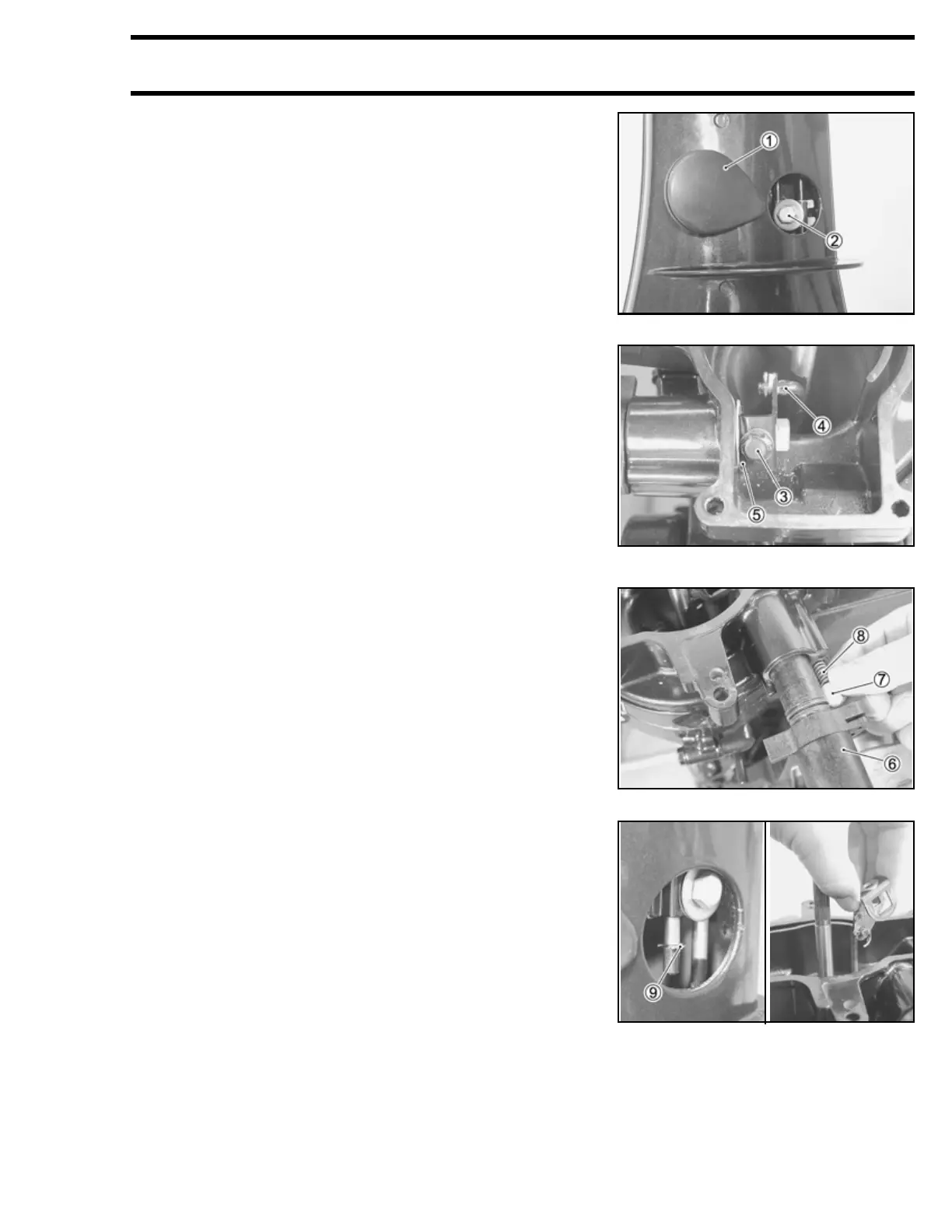

1. Remove the powerhead. (See page 6-2)
2. Shift the clutch lever in the Neutral position.
3. Remove the clutch adjust hole cover 1, then loosen the
clutch rod connecting plate bolt 2.
NOTE:
Do not over-loosen the rod connecting plate bolt. Loosen the
bolt approximately one turn.
4. Remove the bolt 3, the clutch rod / arm 4 and the
spacer 5 from the shaft of the clutch notch plate.
5. Remove the clutch lever 6 with the clutch notch plate,
the notch pin 7 and the spring 8 from the driveshaft
housing.
6. Remove the E-ring 9.
7. Take out the clutch rod / arm from the top.
