4-10
FUEL SYSTEM
FUEL PUMP
FUEL PUMP
Removal / Installation
Before servicing the fuel system, read and understand
“PRECAUTION ON FUEL SYSTEM SERVICE” in the pre-
vious section.

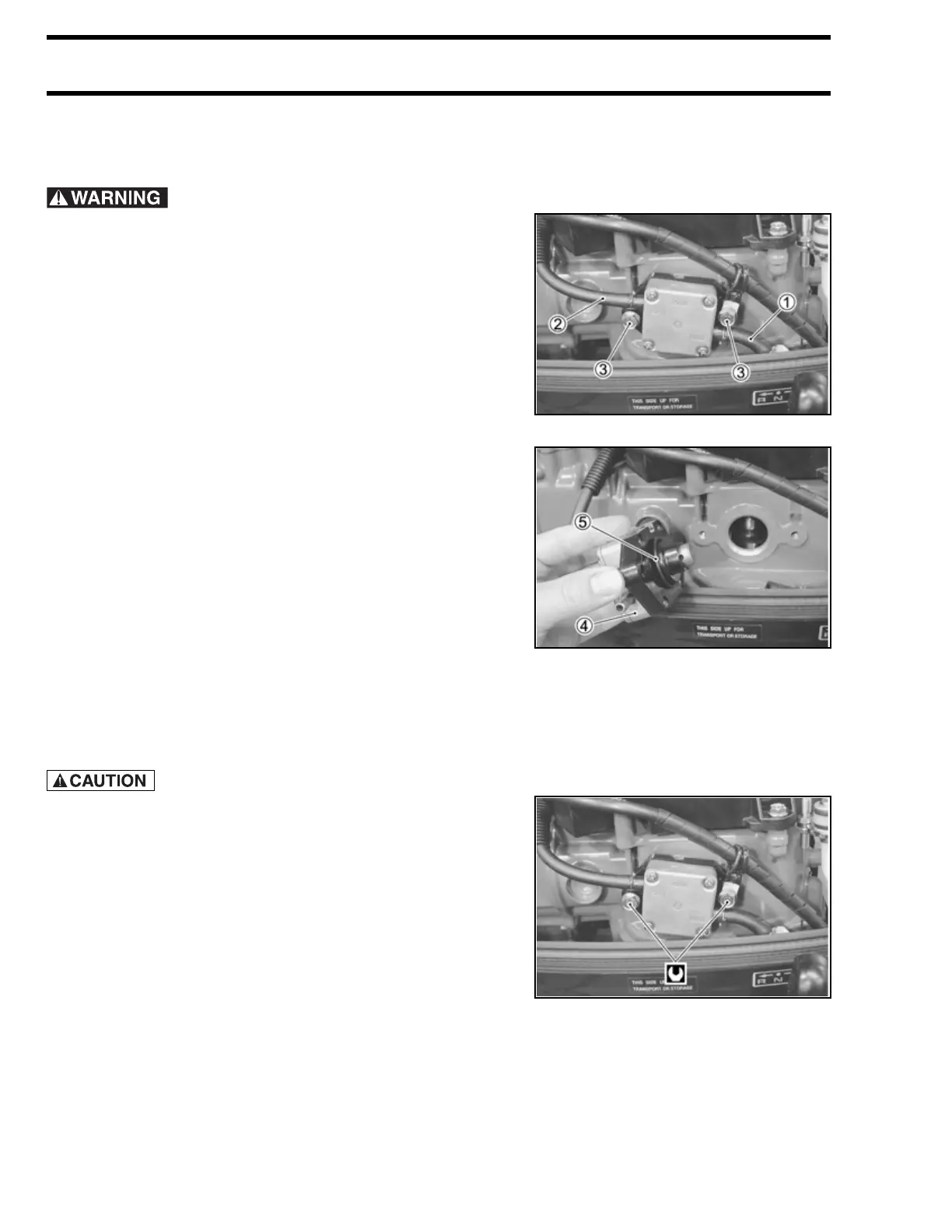

REMOVAL
1. Disconnect the inlet hose 1 and the outlet hose 2 from
the fuel pump.
2. Remove the two bolts 3.
3. Remove the fuel pump 4 and the O-ring 5.
INSTALLATION
Installation is reverse order of removal with special attention
to the following steps.
Do not re-use the O-ring once removed. Always use a
new O-ring.
• Tighten the fuel pump mounting bolts to the specified
torque.
Fuel pump mounting bolt: 8 N·m (0.8 kg-m; 6.0 lb-ft)
• Make sure that the fuel filter is installed with the arrow
mark on the filter toward the fuel pump.
