BRP Johnson 4HP - Swivel Bracket; Clamp Bracket; Driveshaft Housing; Steering Bracket

7-12
MIDSECTION
STEERING BRACKET / DRIVESHAFT HOUSING / SWIVEL BRACKET / CLAMP BRACKET

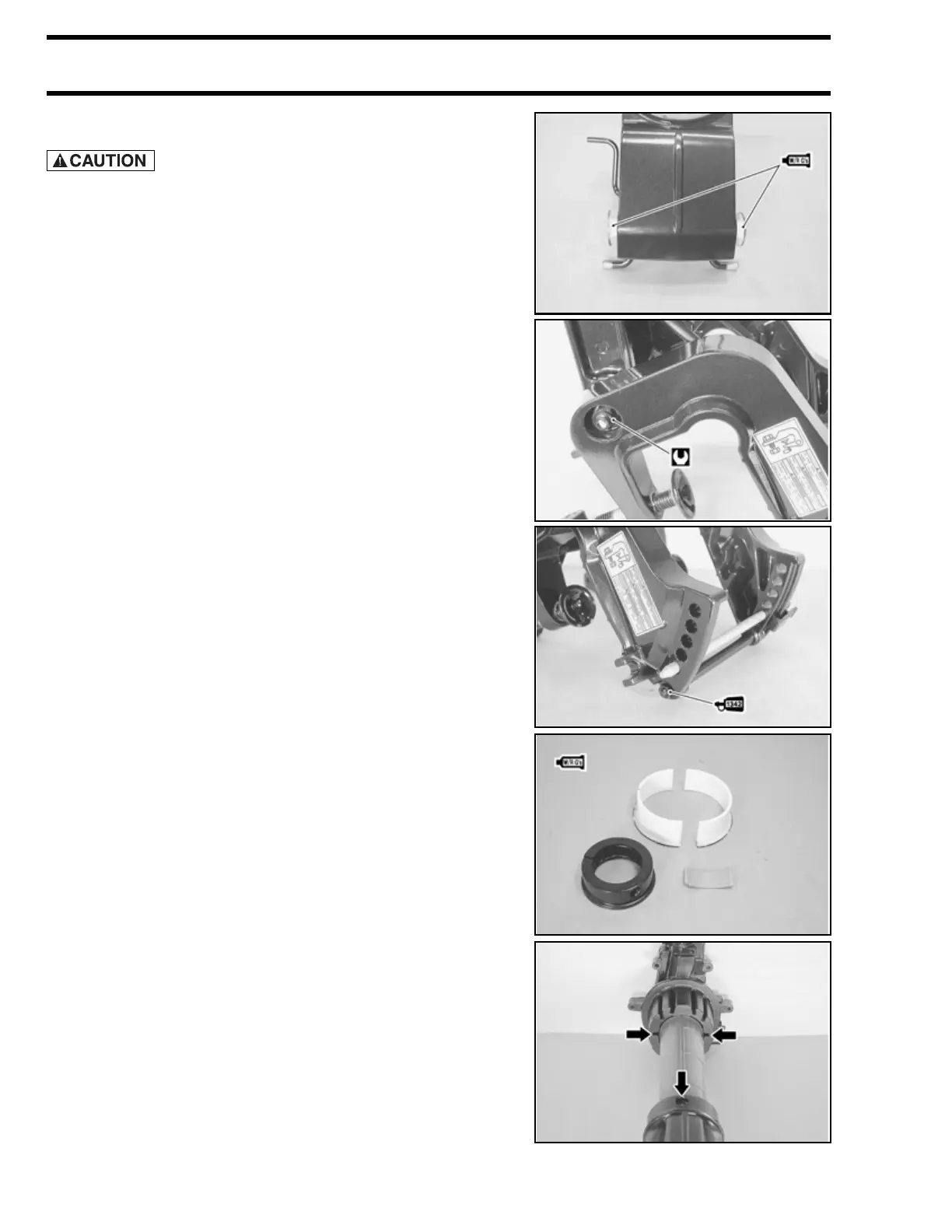

Swivel Bracket / Clamp Bracket
Do not re-use the cotter pin once removed. Always use a
new cotter pin.
• Apply Triple-Guard grease to the clamp bracket bushings.
 Triple-Guard grease
• Tighten the clamp bracket shaft nut to the specified torque.
 Clamp bracket shaft nut:
25 N·m (2.5 kg-m; 18.0 lb-ft)
• Apply Nut Lock to the clamp bracket lower rod nut.
 Nut Lock
Driveshaft Housing / Steering Bracket
• Apply Triple-Guard grease to the following parts:
• Inside and outside surfaces of the bushings
• Inside surface of the lower mount
• Steering adjuster
 Triple-Guard grease
• Install the upper mount and the lower mount positioned as
shown in the figure.
