NEUTRAL START INTERLOCK (NSI)
NEUTRAL START INTERLOCK (NSI)

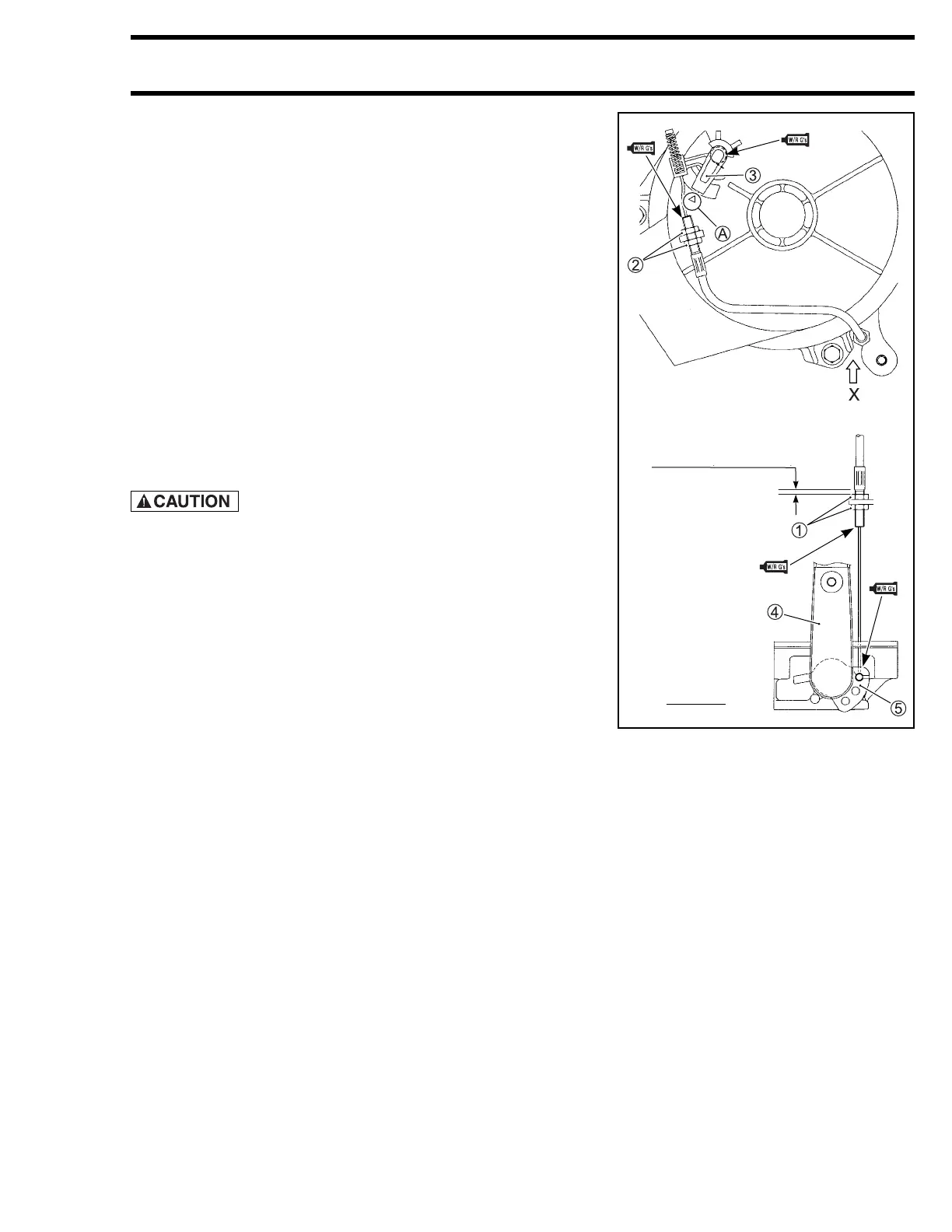

ADJUSTMENT
1. Shift into “NEUTRAL” position.
2. Adjust and tighten the lock nuts 1 as shown position.
3. Loosen the adjustment nuts 2.
4. Adjust the nuts 2 until the center of the reel stopper 3
aligns with the arrow mark a.
5. Tighten the nuts 2.
6. Pull the recoil starter and make sure that the starter does
not work when the shift lever 4 is in “FORWARD” and
“REVERSE” position.
7. Apply Triple-Guard grease to the inner cable, the clutch
notch plate 5 and the reel stopper 3.
Triple-Guard grease
If the NSI cable is removed or left without correct adjust-
ment, there is a high risk of losing one’s balance and/or
being thrown overboard if the motor starts in gear.
2 – 3 mm (0.08 – 0.11 in)
VIEW X
