FUEL SYSTEM
CARBURETORS
CARBURETORS
Before servicing the fuel system, read and understand
“PRECAUTION ON FUEL SYSTEM SERVICE” in the pre-
vious section.
Removal / Installation
REMOVAL

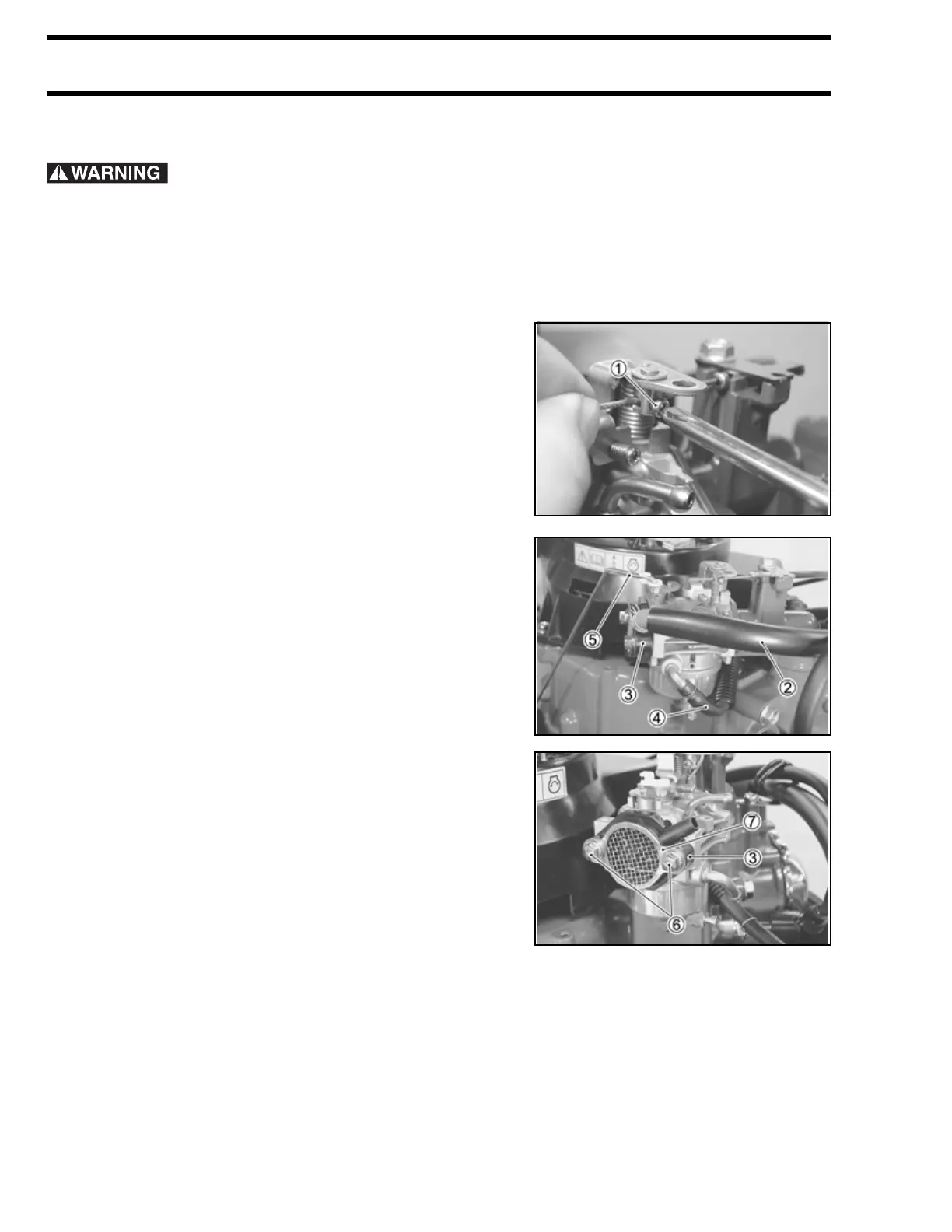

1. Loosen the screw 1 securing the throttle control inner
cable.
2. Remove the breather hose / protector 2 from the flame
arrester holder 3.
3. Remove the fuel inlet hose 4 from the carburetor.
4. Detach the choke rod 5 from the linkage.
5. Remove the two bolts 6, the flame arrester holder 3,
the flame arrester 7, the carburetor and the gasket from
the intake manifold.
