BRP Johnson 4HP - Disassembly of Propeller Shaft Components

8-5
GEARCASE
REMOVAL AND DISASSEMBLY

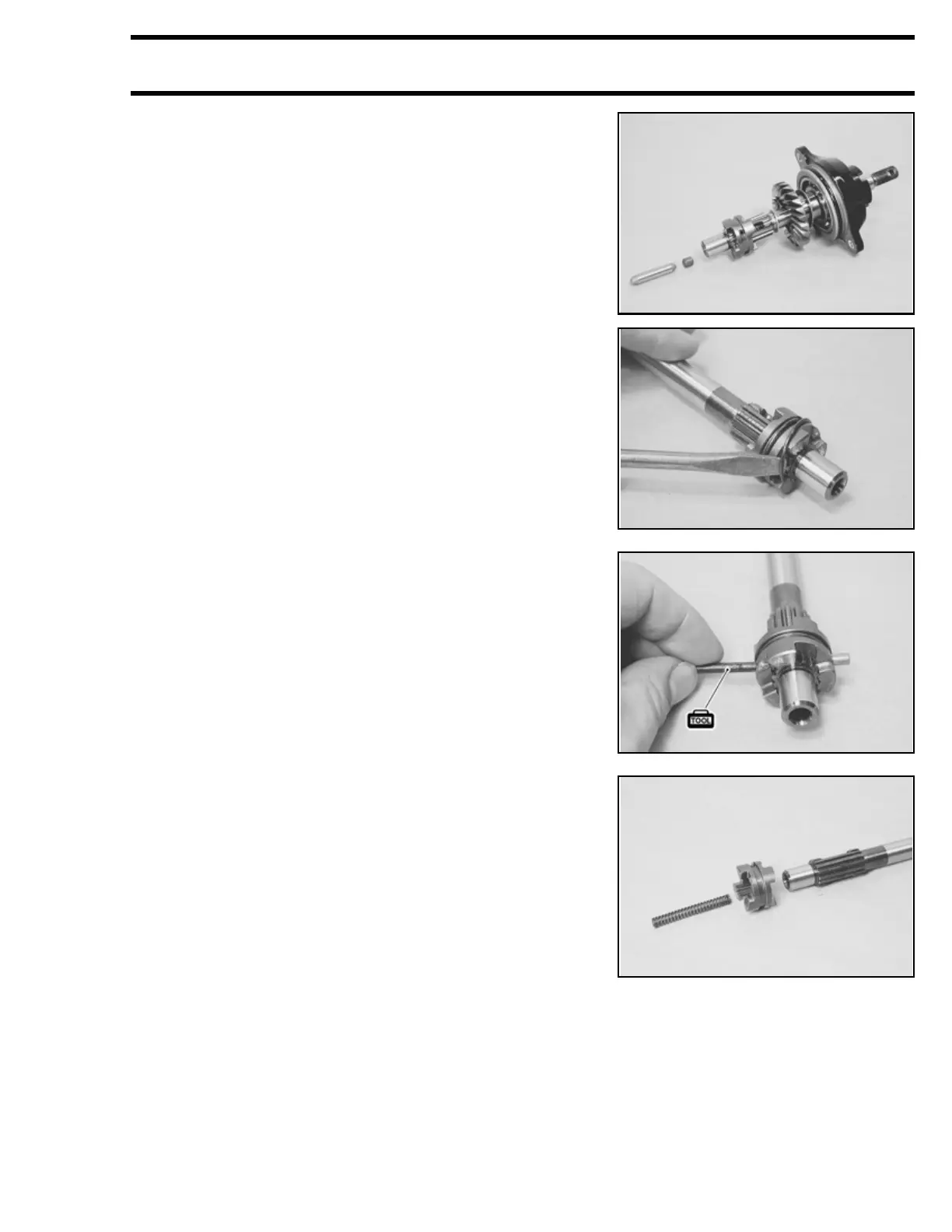

Disassembly of Propeller Shaft Components
1. Separate the following parts.
• Bearing housing
• Reverse gear backup shim
• Reverse gear
• Reverse gear thrust washer
• Push rod
• Push rod pin
2. Remove the dog spring.
3. Drive the dog pin out of the clutch dog shifter.
 Pin remover
4. Remove the clutch dog shifter and the dog spring.
