BRP Johnson 4HP - 5;6 Hp Models

9-4

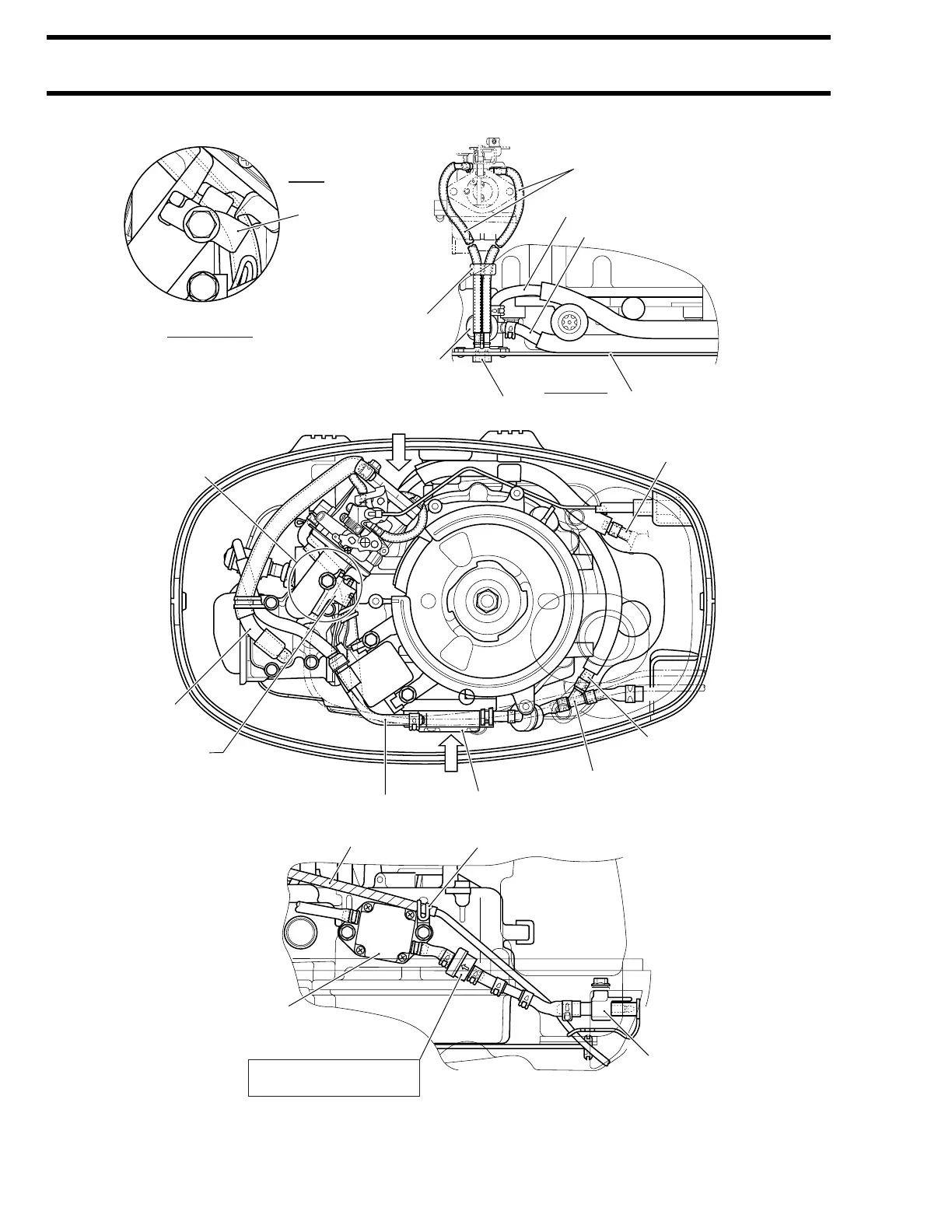

WIRE / HOSE ROUTING
WIRE AND HOSE ROUTING
5/6 HP Models
Fuel filter
Fuel pump
Install the filter with the arrow
mark toward the fuel pump.
VIEW C
DETAIL A
DF6
Throttle cable
holder
Clamp
Fuel cock
Grommet
Air vent hose
Fuse hose (Fuel tank to Fuel cock)
Fuse hose (Fuel cock to 3 way joint)
Lower cover plate
Fuel hose
(Fuel tank to Fuel cock)
Fuel hose
(Fuel cock to 3-way joint)
Fuel hose
(Fuel pump to Carburetor)
Throttle cable holder
(For DF5)
C
B
A
3-way joint
Fuel connector plug
Fuel pump
Protector
Breather hose
Clamp
