BRP Johnson 4HP - Engine Stop Switch

3-5
IGNITION AND ELECTRICAL
INSPECTION
Engine Stop Switch
 Digital Voltmeter
 Tester range:  (Continuity)
Inspect the continuity of the engine stop switch.
Stop switch continuity:
If the result is out of the specification, replace the engine stop
switch.
Tester probe connection
Probe Other probe
Blue/Red Black
Switch condition Continuity
Lock plate IN No
Lock plate OUT Yes
Lock plate IN and button
depressed
Yes

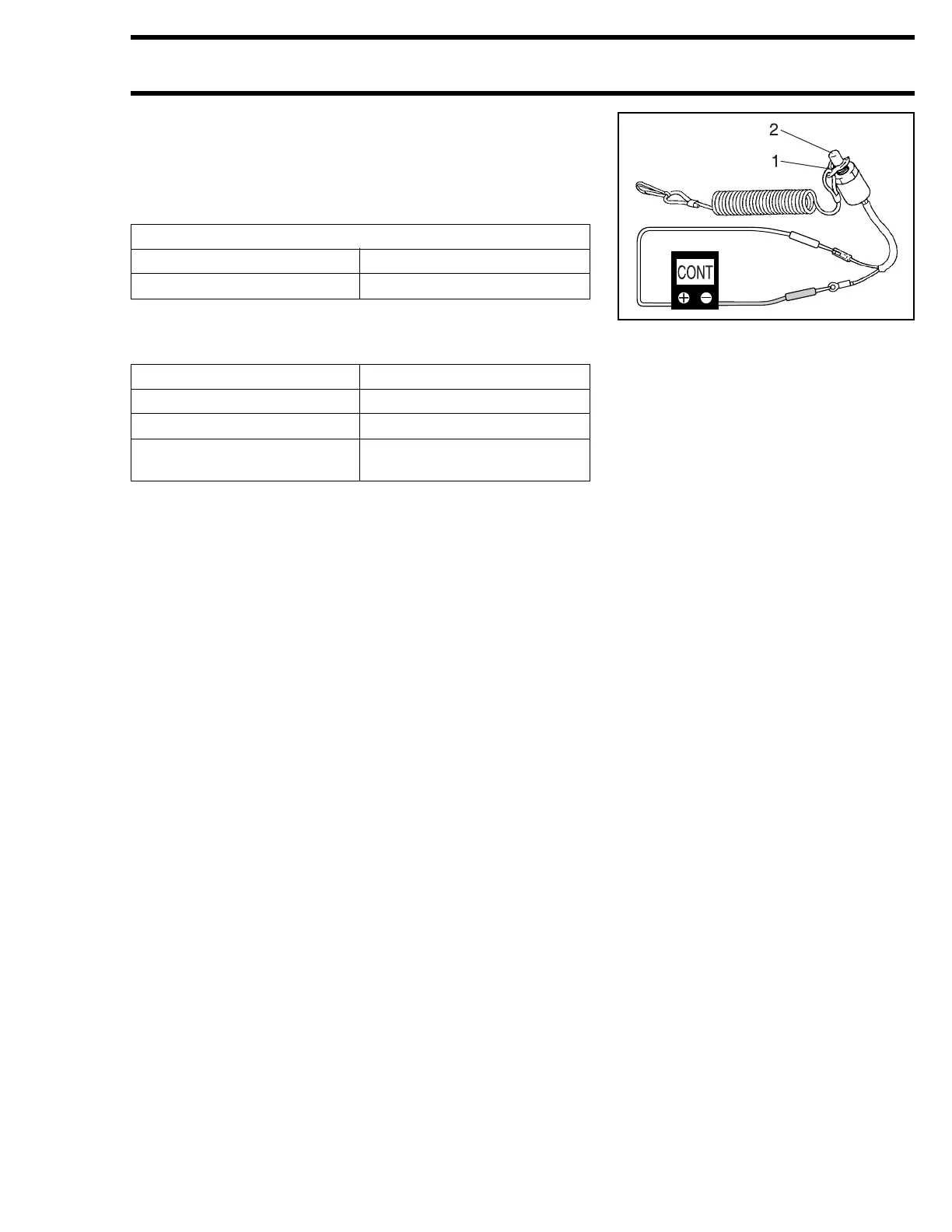

1. Lock plate
2. Button
Bl/R
