7-11
MIDSECTION

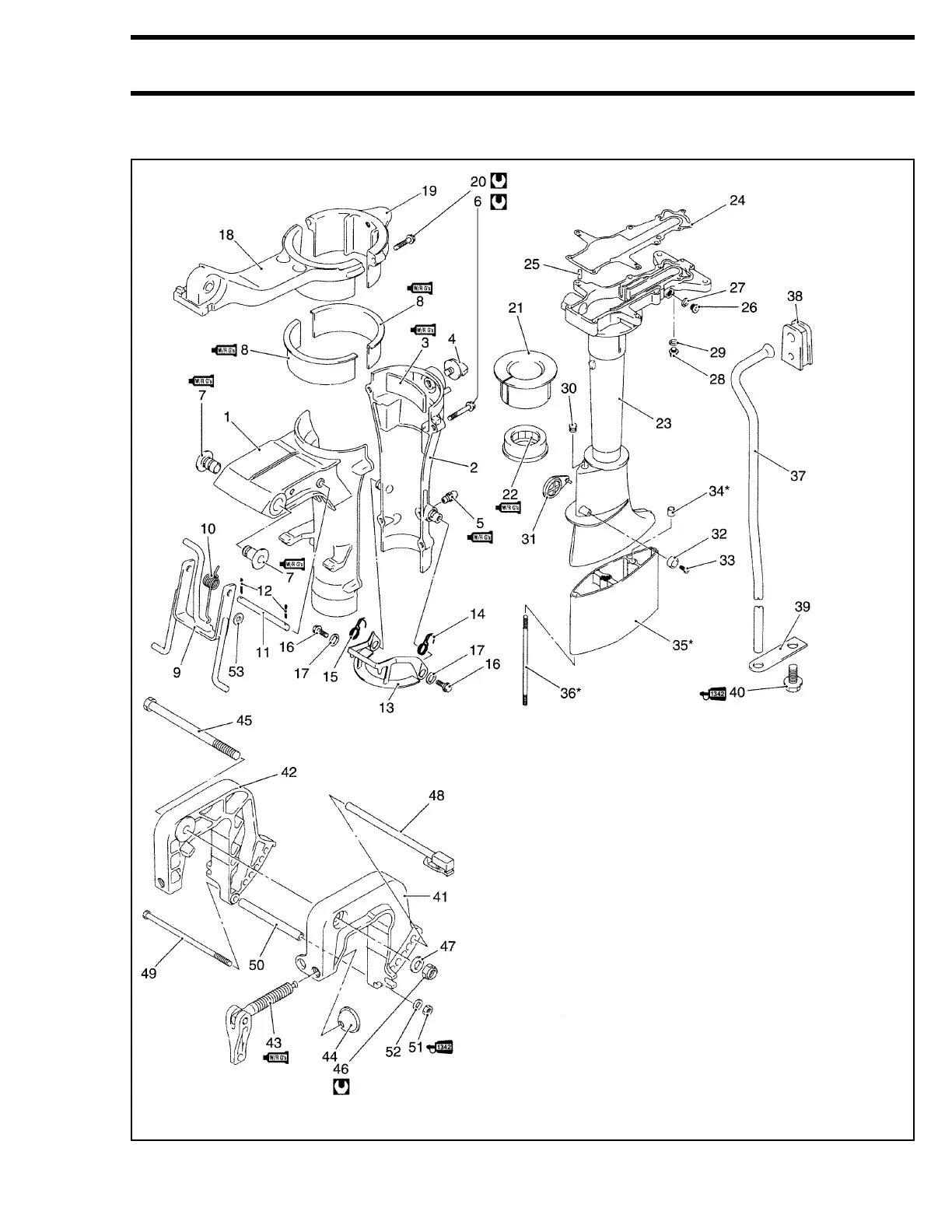

STEERING BRACKET / DRIVESHAFT HOUSING / SWIVEL BRACKET / CLAMP BRACKET
REASSEMBLY
Reassembly is reverse order of disassembly with special attention to the following steps.
1. Swivel bracket (1)
2. Swivel bracket cover (1)
3. Steering adjuster (1)
4. Adjuster knob (1)
5. Grease nipple (1)
6. Bolt (4)
7. Bushing (2)
8. Steering bushing (2)
9. Sharrow drive arm (1)
10. Spring (1)
11. Pin (1)
12. Cotter pin (2)
13. Reverse lock arm (1)
14. PORT spring (1)
15. STBD spring (1)
16. Bolt (2)
17. Washer (2)
18. Steering bracket (1)
19. Steering bracket cover (1)
20. Bolt (2)
21. Upper mount (1)
22. Lower mount (1)
23. Driveshaft housing (1)
24. Gasket (1)
25. Dowel pin (2)
26. Plug (1)
27. Gasket (1)
28. Water inspection plug (1)
29. Gasket (1)
30. Grommet (1)
31. Hole cover (1)
32. Anode (1)
33. Bolt (1)
34. Dowel pin (1)*
35. Extension case (1)*
36. Stud bolt (2)*
37. Water tube (1)
38. Grommet (1)
39. Guide plate (1)
40. Bolt (1)
41. PORT clamp bracket (1)
42. STBD clamp bracket (1)
43. Clamp screw (2)
44. Plate (2)
45. Bolt (1)
46. Nut (1)
47. Washer (1)
48. Tilt pin (1)
49. Bolt (1)
50. Lower rod (1)
51. Nut (1)
52. Washer (1)
53. Washer (1)
* : Only for transom “L” model
10 N·m (1.0 kg-m; 7.0 lb-ft)
10 N·m (1.0 kg-m; 7.0 lb-ft)
25 N·m
(2.5 kg-m; 18.0 lb-ft)
