7-4
MIDSECTION
DISASSEMBLY / REASSEMBLY

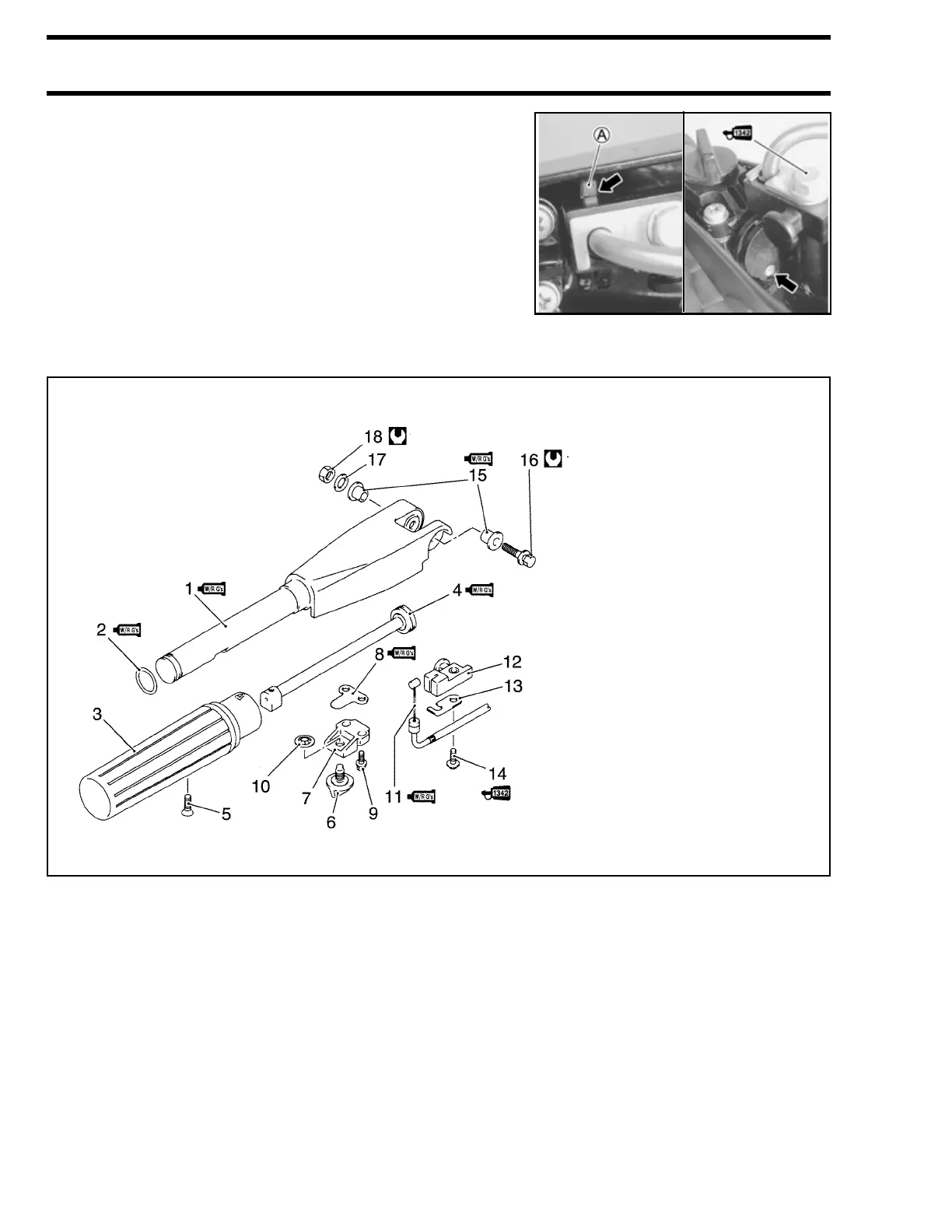

Reassembly
Reassembly is reverse order of disassembly with special
attention to the following steps.
• Install the cable stopper to avoid being on the boss A of
the handle body.
• Apply Nut Lock to the cable stopper bolt.
Nut Lock
• Make sure that the throttle control inner cable fits in the
groove on the drum of the handle rod.
Triple-Guard grease
17 N·m (1.7 kg-m; 12.5 lb-ft)
12 N·m (1.2 kgf-m; 8.5 lb-ft)
1. Tiller handle (1)
2. O-ring (1)
3. Control grip (1)
4. Handle rod (1)
5. Screw (1)
6. Adjusting knob (1)
7. Support (1)
8. Plate (1)
9. Screw (2)
10. Nut (1)
11. Throttle control cable (1)
12. Cable stopper (1)
13. Plate (1)
14. Bolt (1)
15. Bushing (2)
16. Bolt (1)
17. Washer (1)
18. Nut (1)
