6-8
POWERHEAD
DISASSEMBLY

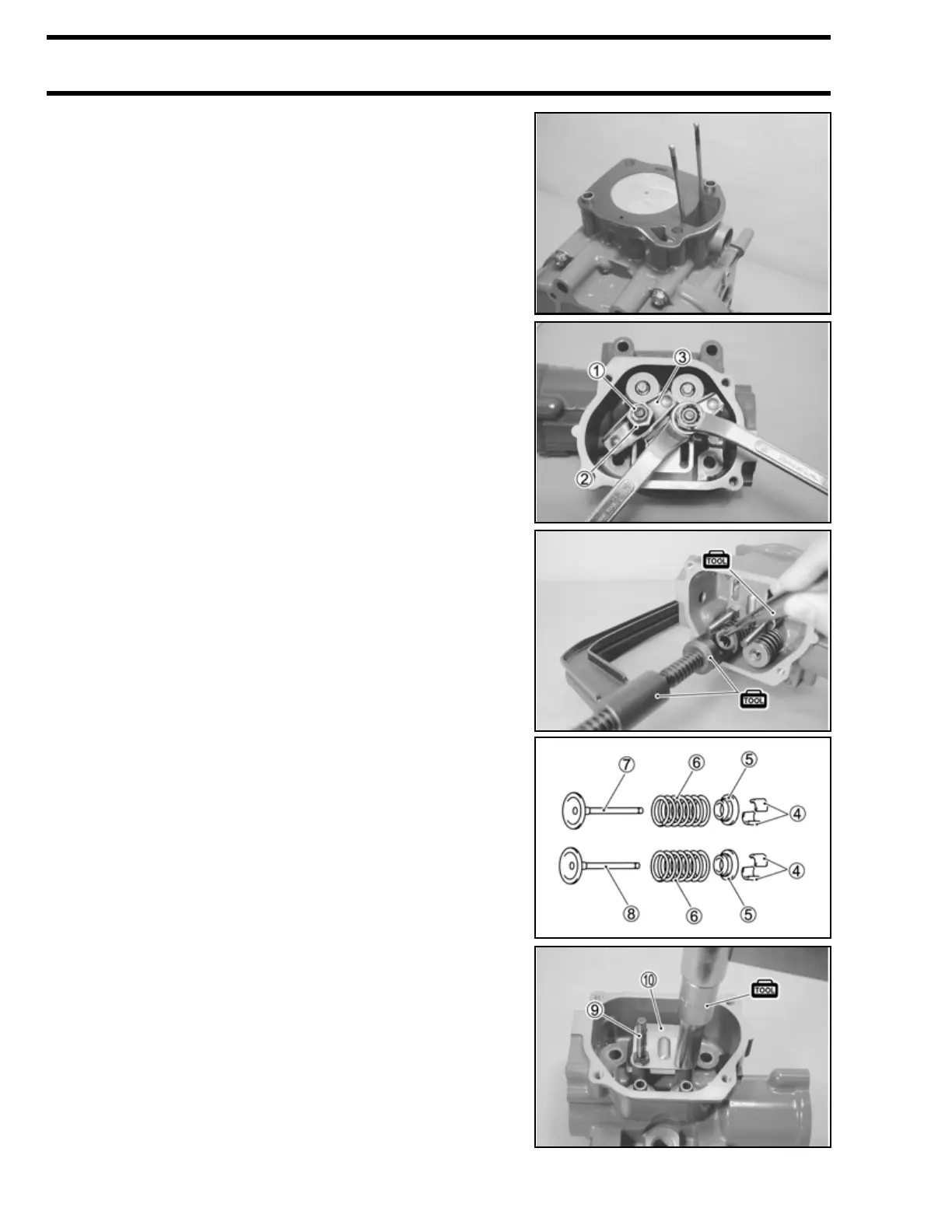

4. Remove the gasket, the dowel pins and the push rods
from the cylinder block.
5. Remove the valve adjusting lock nuts 1, then remove
the pivot nuts 2 and the rocker arms 3.
6. Using the special tools, remove the valve cotters 4 while
compressing the valve spring.
Valve lifter
Attachment
Tweezers
7. Remove the valve spring retainers 5, the valve springs
6, and the valves 7 / 8.
8. Remove the rocker arm pivot bolts 9 and the rod guide
plate 0.
Deep socket wrench
