Bruker BPHG 90 - Figure 7.21 Warm­up Dialogue and Information Screen; Figure 7.22 Warm­up Progress Screen with Abort Function

Operation
54 Z33081_00_001

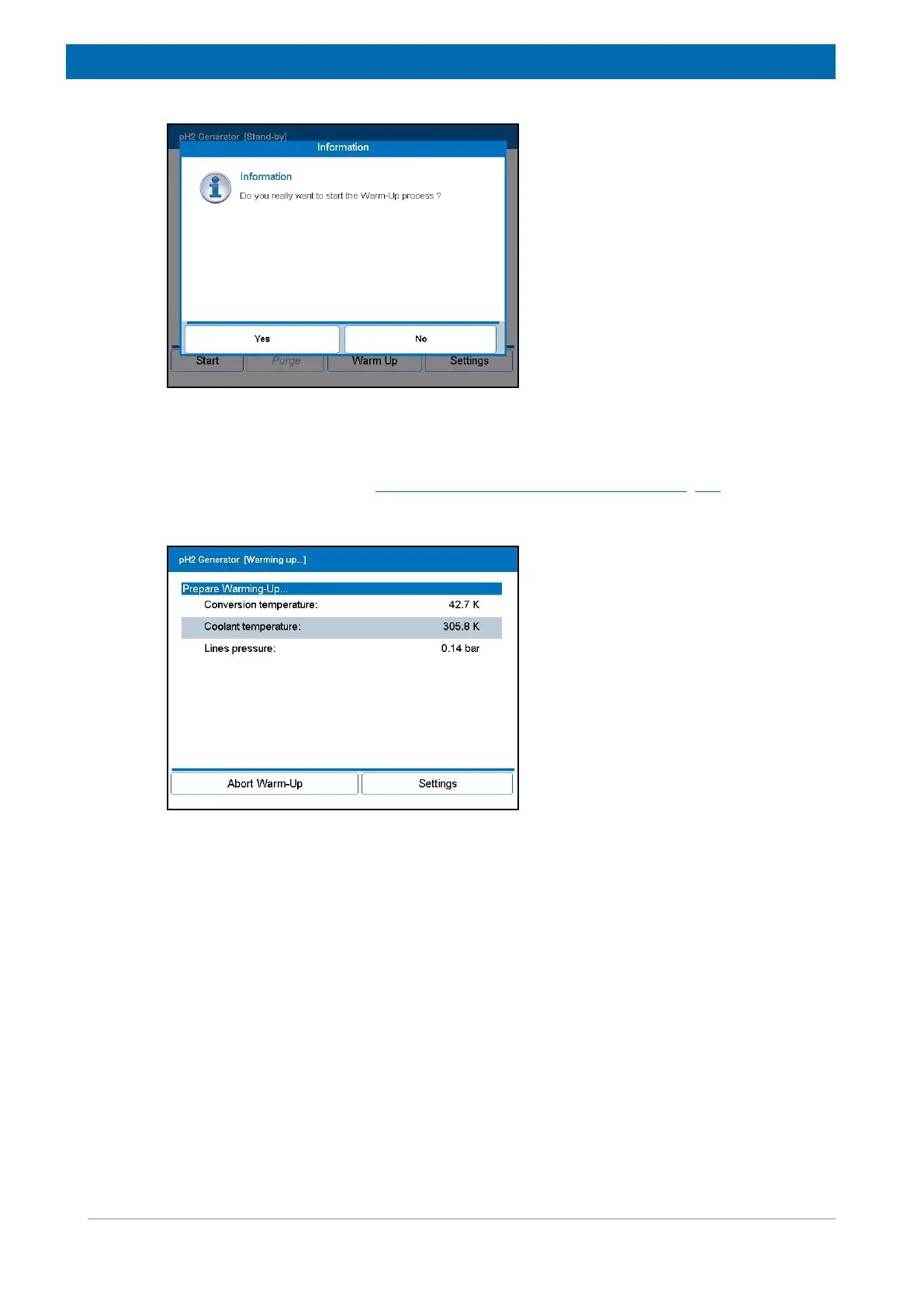

Figure7.21:WarmupDialogueandInformationScreen
Thewarmupprocedurestops whenthepresetwarmup temperaturehasbeen reached.
Progress is indicated in the Warming up screen and the process can be aborted by
tappingtheAbortbutton(seeWarm up progress screen with abort function [}53]).
Once the warmup preset temperature has been reached, the system returns to the
Standbyscreen.Thenthegeneratorcanbesafelyturnedoff.
Figure7.22:WarmupProgressScreenwithAbortFunction
