Helium Level Sensor
The helium level sensor is inserted in the helium fill-in turret.
Helium Level Sensor Material No. Value Unit
Level Sensor Type Z58114 1300/690
Overall length 1300 mm
Active length 690 mm
Calibration 0 %, Calibration resistor Z28630
blue
140 Ω
Calibration 100 %, Calibration resistor Z28628
black
15 Ω
Table A.2: Helium Level Sensor

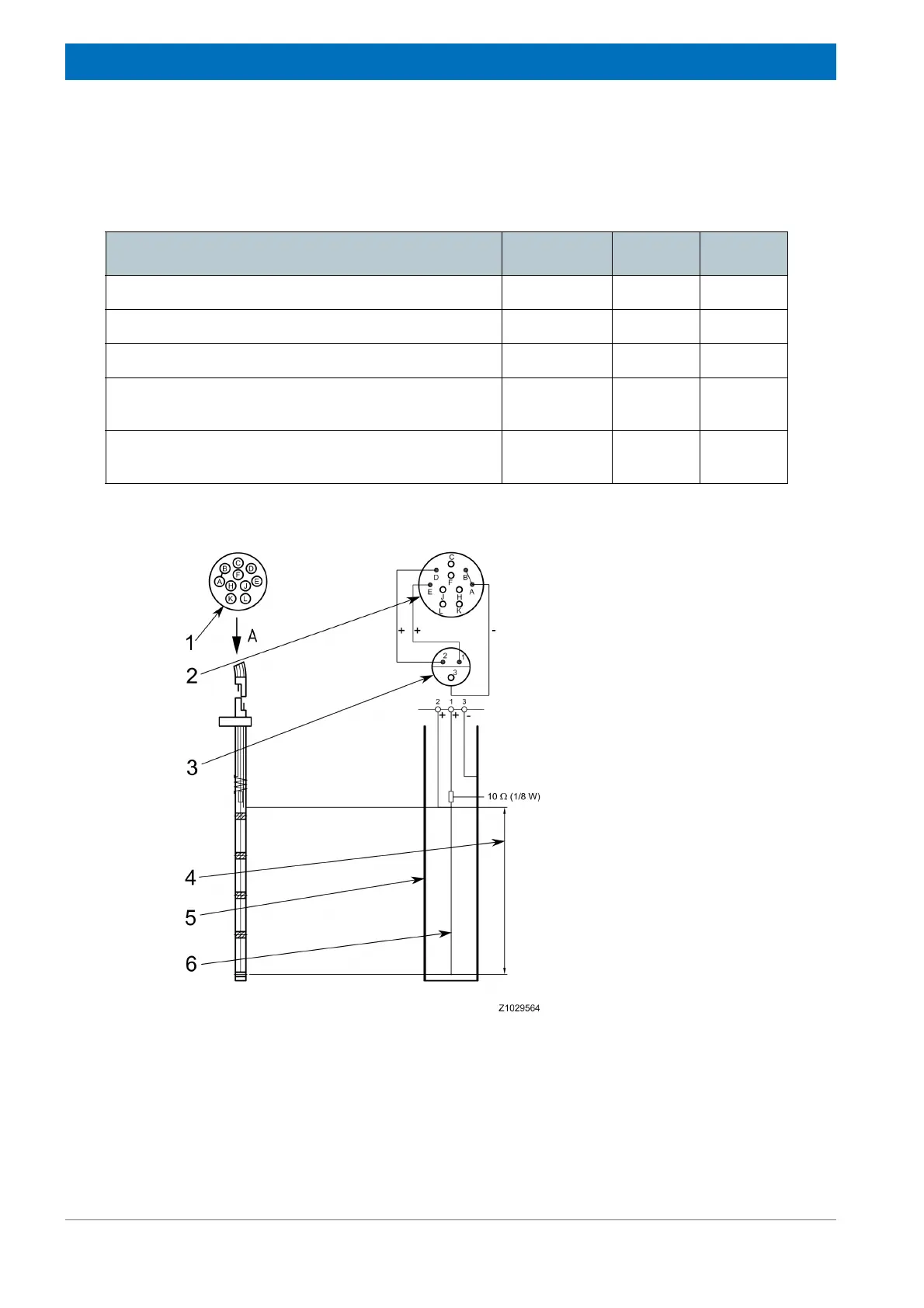

Figure A.1: Helium Level Sensor
1 Pin-Side
2 Solder-Side
3 Pin connector
4 Active length
5 Sensor tube
6 Superconductor
