Assembling
4.3.1.3 Checking the Feedthrough Plate
4.3.1.4 Assembling the Nitrogen Tube
Bottom of Cryostat
Top of the Cryostat

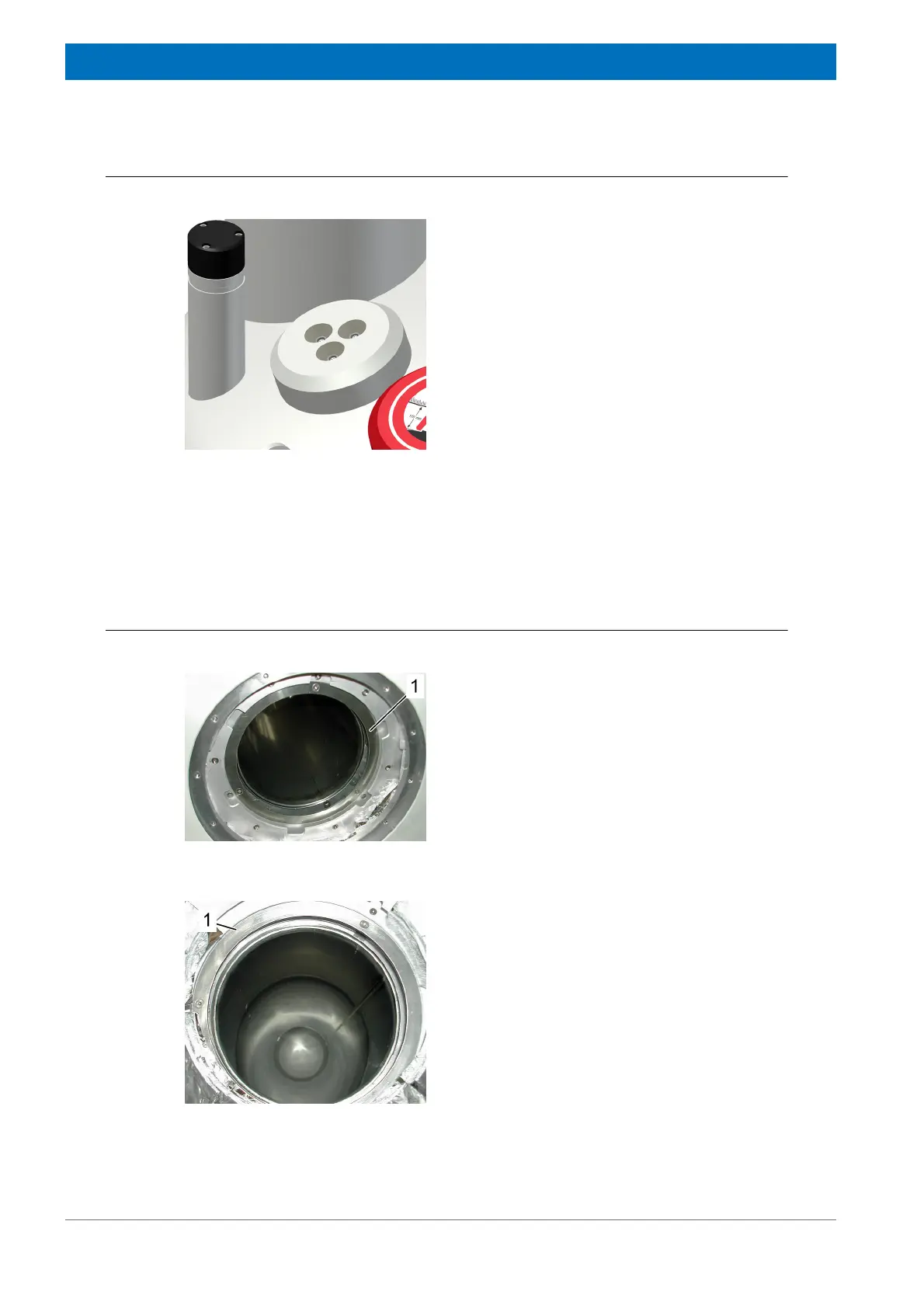

Figure 4.11: Checking and fitting the Feedthrough Plate
1. Check through the top opening of the
cryostat that all connectors at the inner side
of the feedthrough plate are plugged and the
cables are not stressed or bent.
2. Check the feedthrough plate is correct
assembled.
Figure 4.12: Assembling the Nitrogen Tube - step 1
1. Mount the lower RS reduction flange (1) to
the radiation shield clips.
Figure 4.13: Assembling the Nitrogen Tube - step 2
2. Mount the upper RS reduction flange (1) to
the radiation shield clips.
