Disassembling
8.2.7 Assembling of the Transportation Lock
Bottom of Cryostat
Top of the Cryostat

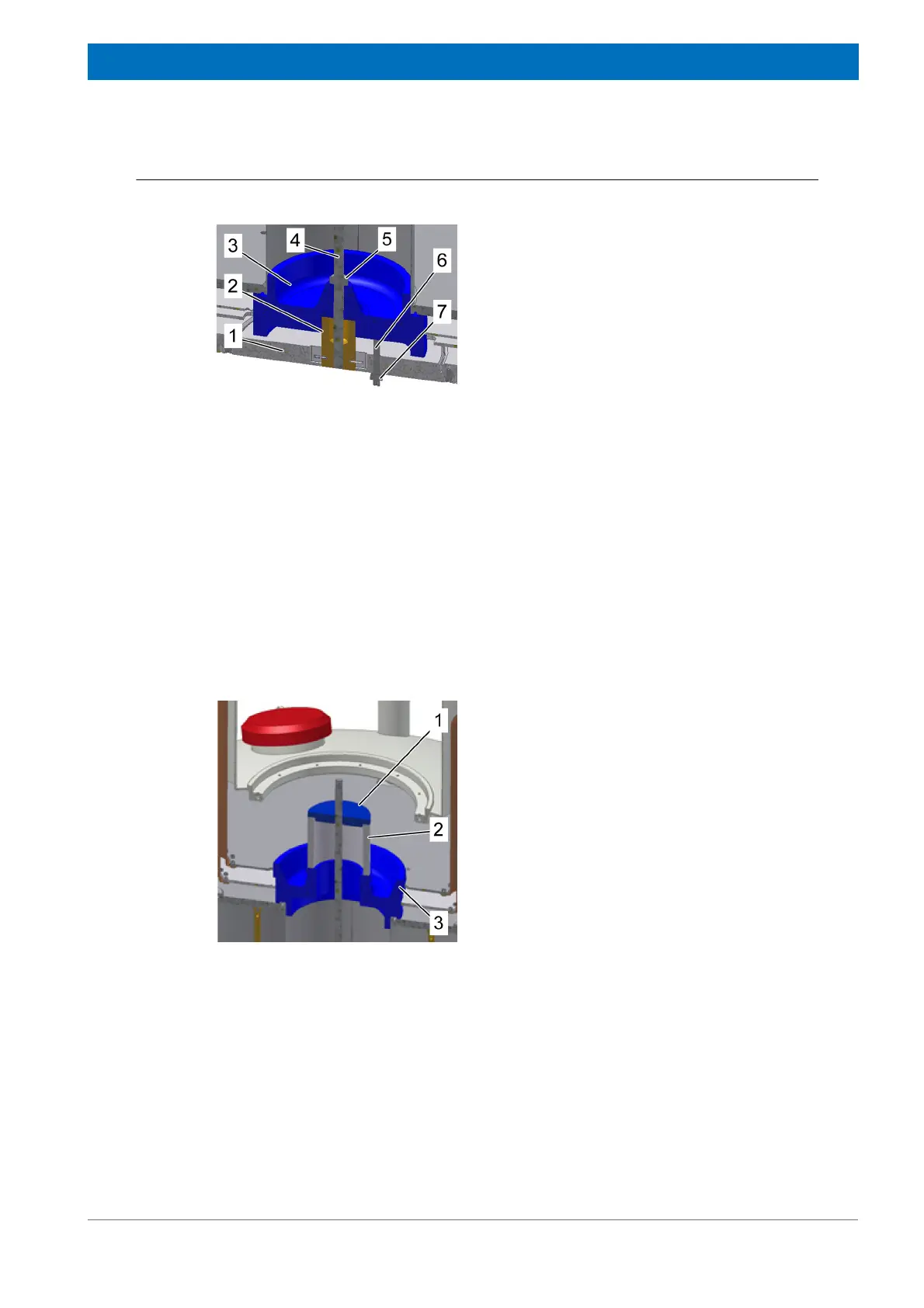

Figure 8.7: Assembling the transportation lock - step 1
1. Insert brass nut (2) into the transport bottom
plate (1).
2. Attach the bottom fixture flange (3) onto the
brass nut (2).
3. Insert threaded bar (4) from the top.
4. Screw threaded bar (4) into the brass nut
(2).
5. Fix the lock nut (5).
6. Insert the assembly of the lower transporta-
tion lock into the helium bore tube. Prevent
clamping the super-insulation with the
transportation lock.
7. Fix the transport bottom plate (1) with twelve
M 5 x 12 screws.
8. Insert and fix the three threaded bolts M 8
(6).
9. Fix the three nuts M 8 (7).
Figure 8.8: Assembling the transportation lock - step 2
10. Insert the top fixture flange (3).
11. Insert intermediate flange (2).
12. Insert short top fixture flange (1).
