Transportation
3.5 Transportation with a Crane
Recommended for lifting the cryostat out of the box.
Approved Persons: Approved crane operator
Precondition: The crane must be approved for the transportation weight (see chapter
Appendix, Technical Data).
Attachment Points

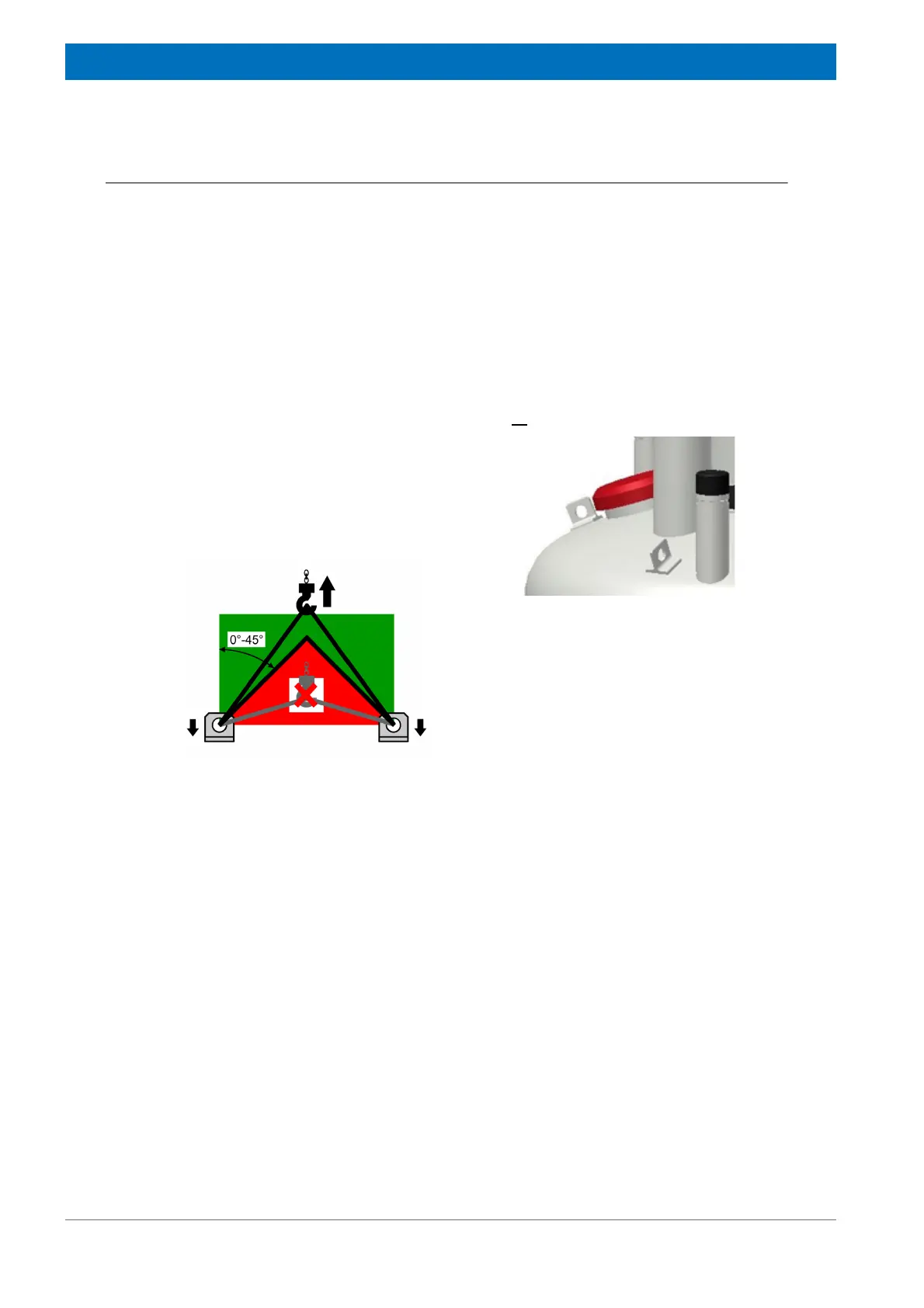

Figure 3.3: Attachment points for lifting equipment
1. Exclusively use the marked eyelets (1) as
attachment points for the lifting equipment.
2. Use all
eyelets for the lifting equipment.
3. Follow the instructions on the label on the
top of the cryostat. This label gives
important information about correct
attachment and transportation.
4. Check for correct fastening of the lifting
equipment before lifting the cryostat.
5. Make sure that any movement of the crane
is as slowly as possible to avoid any
damage due to acceleration.
6. Check for correct leveling of the cryostat
while hanging on the crane.
