Assembling
4.3 Assembling Work
4.3.1 Preparing the Cryostat
4.3.1.1 Removing the Transportation Locks

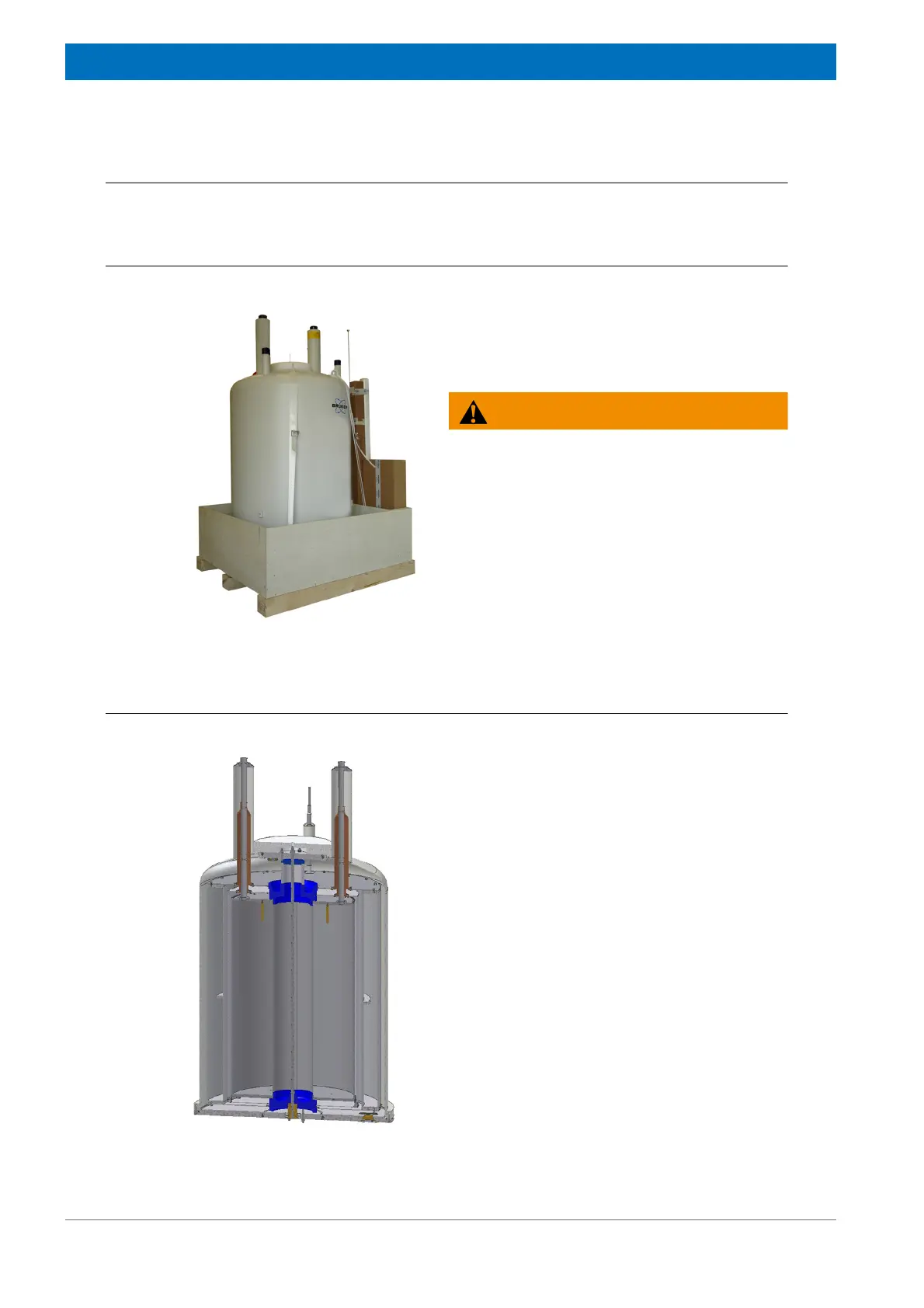

Figure 4.2: Preparing the cryostat
1. Remove the top and side panels of the box.
2. Loosen the fixing straps from the cryostat.
3. Lift the cryostat out of its box.
4. Attach the magnet stand to the cryostat.
Follow the instructions in the manual of the
supplied magnet stand respecting the
warnings given there.
WARNING: Heavy Weights
Figure 4.3: Overview Transportation Locks
Overview positions of the transportation lock
(colored blue).
