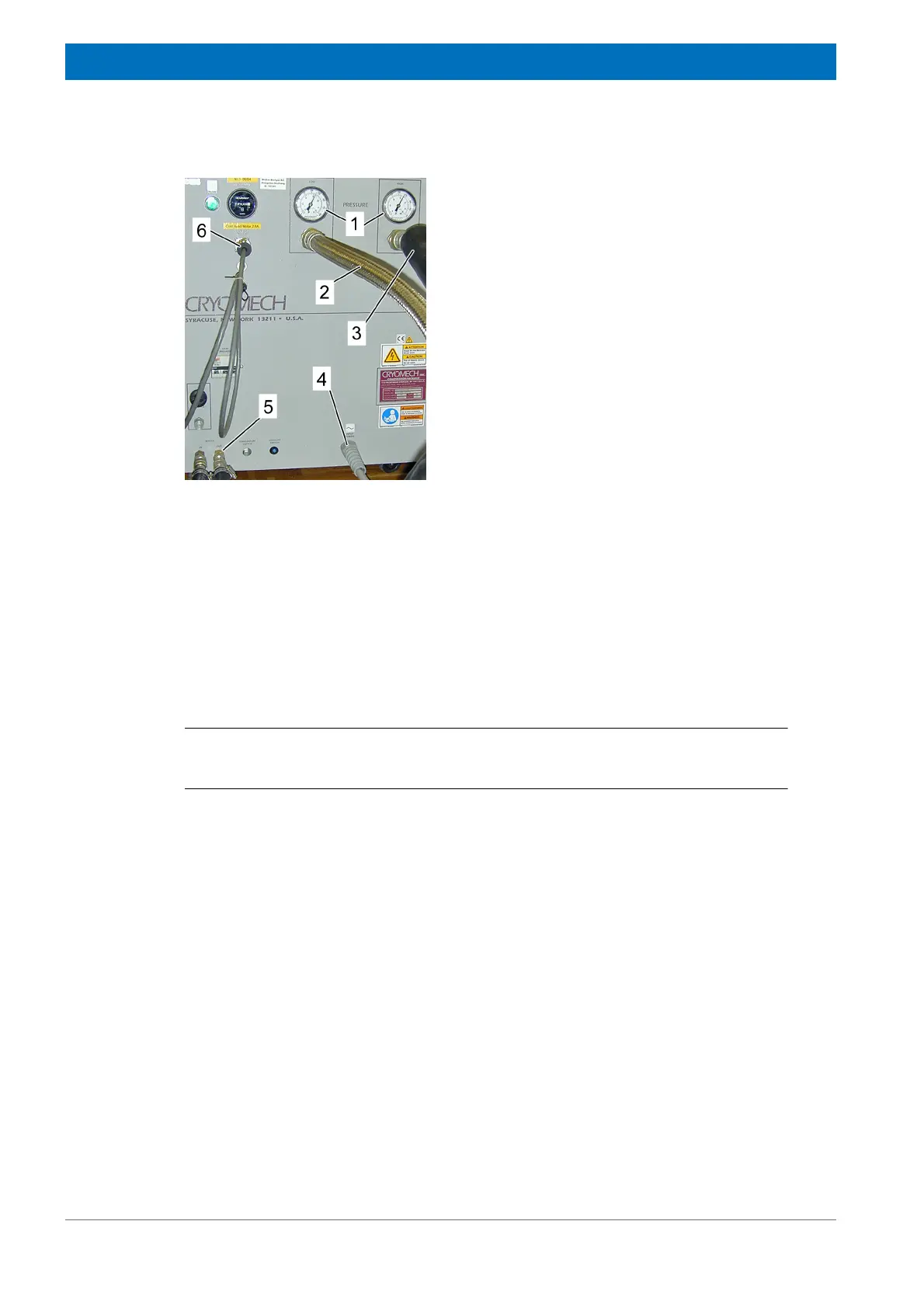

4. Check the compressor pressure at the
gauges on the front panel (1).
5. Prepare the compressor location.
Ambient temperature must be in the range 7
to 38 °C (45 to 100 °F), compressor must be
in a levelled position (within 5°).
6. Connect the low pressure flex line (2) to the
compressor. Tighten cap nuts and loosen
them with 1/4 rotation.
7. Connect the high pressure flex line (3) to the
compressor. Tighten cap nuts and loosen
them with 1/4 rotation.
8. Only compressor with water cooling option:
connect the water lines (5) to the compres-
sor respecting the flow direction.
9. Connect the motor cord (6) to the compres-
sor.
10. Connect the compressor to the main power
with the attached power cable (4).
11. If supplied mount the noise protection cover.
12. Cut the supplied Velcro® fastener in pieces
of 400 mm to arrange and fix the flex lines
and the motor cord.
