Assembling
i
Installation has been completed correctly, if both readings of MICS and the External
Temperature Control Unit show the same temperature values.

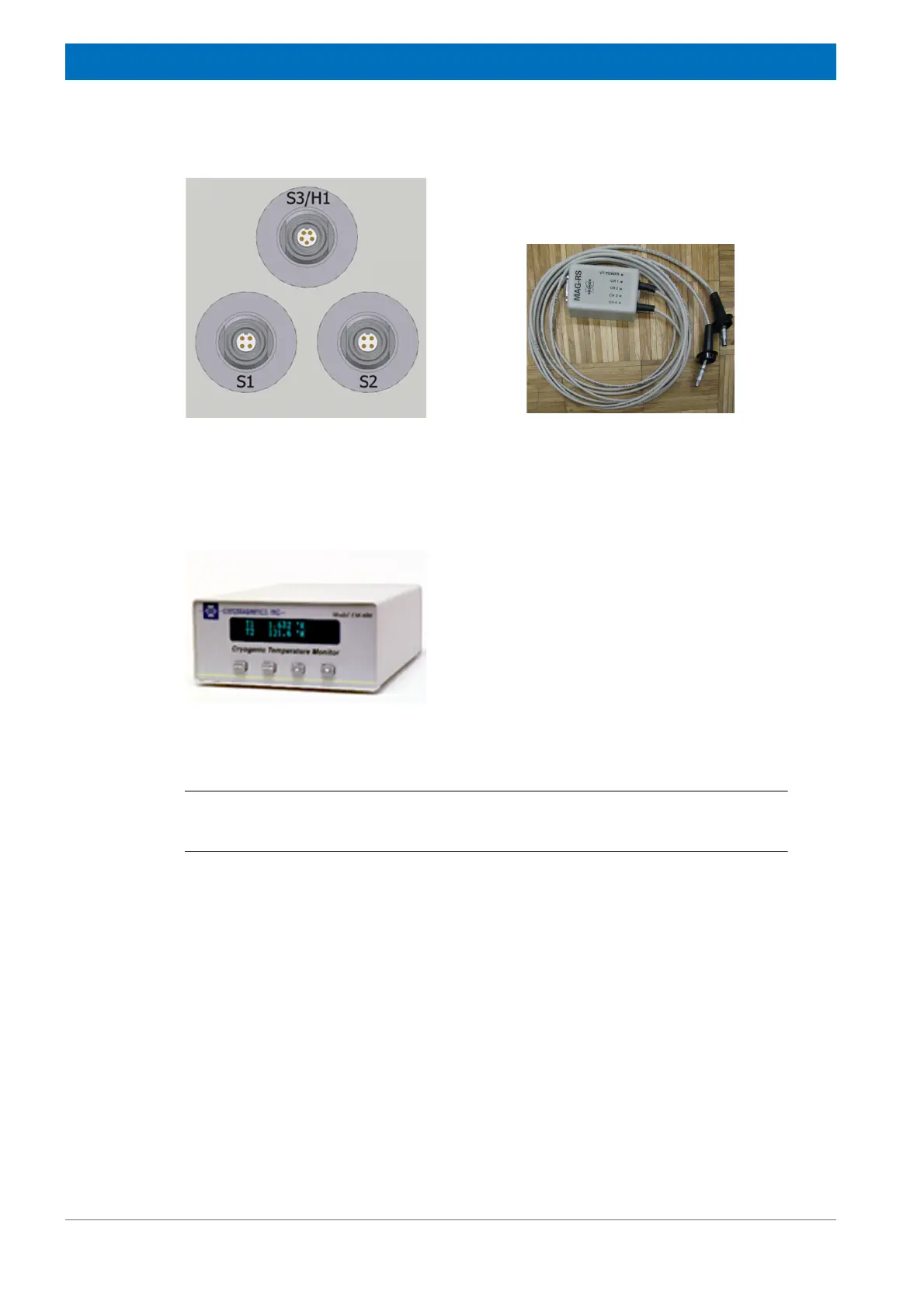

Figure 4.75: Mounting the Temperature Control - step 1
1. Connect the VTA MAG-RS (figure below)
with the S1 and the S3 / H1 port at the feed-
through plate respecting the number of pins.
2. Connect the VTA MAG-RS to the BSMS
board at the console with the supplied BSVT
cable.
Figure 4.76: Mounting the Temperature Control - step 2
3. Connect the S2 port of the feedthrough plate
to the External Temperature Control Unit
with the supplied cable.
For further steps follow the instructions given in
the supplied manual of the External Temperature
Control Unit.
