2.6.2 Running Therapy Screen
2.6.3 Electrotherapy – Settings during Therapy
2.6.3.1 Setting the Intensity in 4-electrode Therapies
Making a therapy with four electrodes, your can set different intensities between each pair of electrodes. In case of 4-
pole interference the output intensity is set by the intensity (18) button on both channels at the same time (the screen
button 1+2 is pressed) or on each channel separately (the screen button 1 or 2 is pressed).
If the intensity on one of the channels is set to zero, the therapy is terminated.
2.6.3.2 Manual Control of Vector in Dipole Interference
Dipole angle is set manually by the select (14) button during therapy. Dipole position is schematically displayed on
the screen below time value.
intensityintensity
select

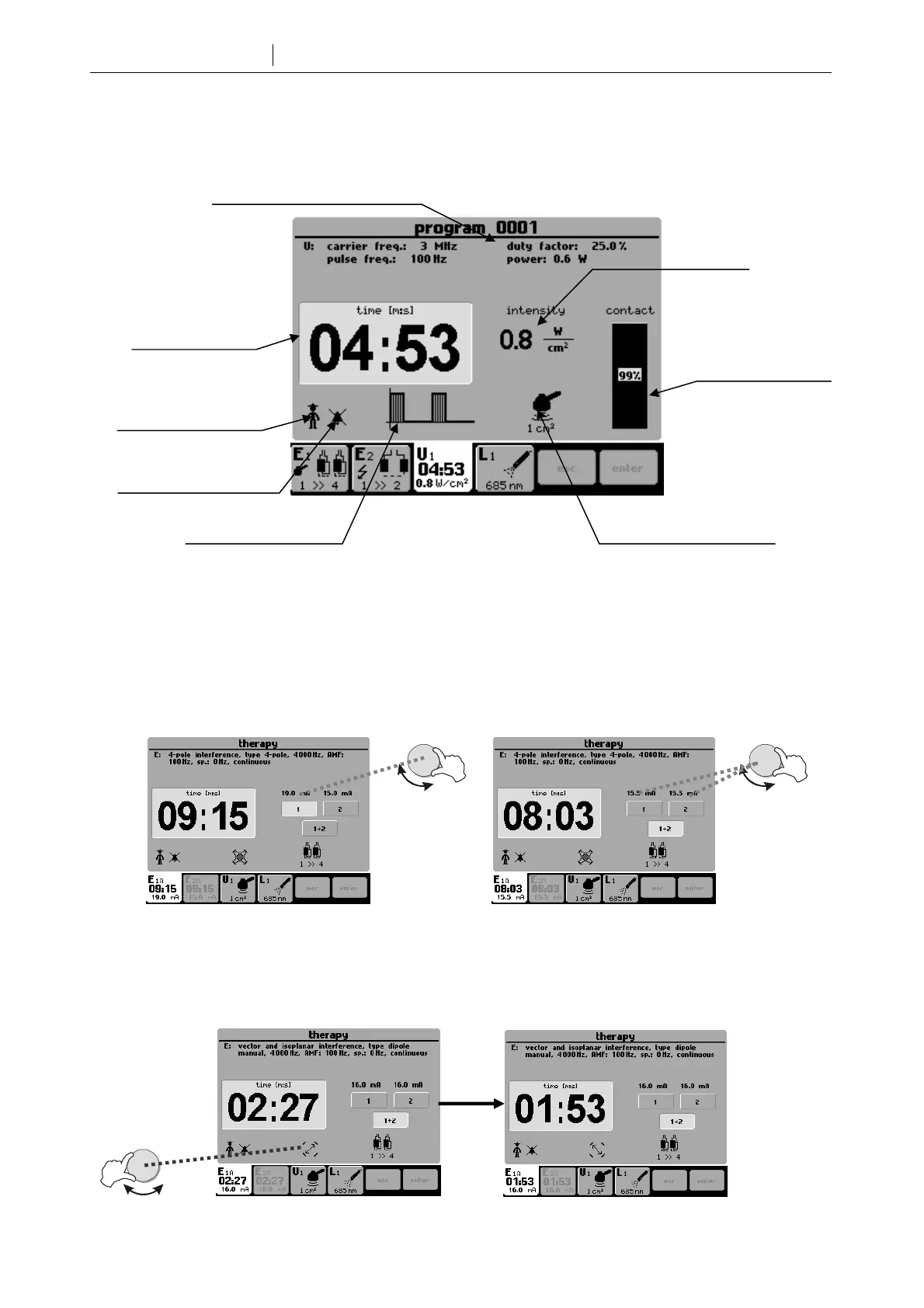

Therapy description
Indication if monitoring of
contact between therapy
applicator and patient is
switched on /off
Intensity
Indication of sound
control (on/off)
Time till end of
therapy
Symbolic description
of generation
Icon and info
on connected accessory
Info in the head's contact
with patient (ultrasound)
