BTL-5000 SERIES
USER'S MANUAL
page 26 of 56
2.10 INTERCONNECTION OF UNITS
2.10.1 Interconnection of BTL-5000 Puls (Combi) and Vacuum
Unit BTL vac
Combine any BTL-5000 Puls or Combi unit with the vacuum unit BTL vac to apply electrotherapy currents by means
of suction cup electrodes. Adjustable vacuum pressure ensures simple and convenient attachment of patient
electrodes, especially on the parts of body hard to reach with classic electrodes. Moreover, the pulse mode provides
mechanical massage of the tissue, improves body metabolism and increases blood supply.

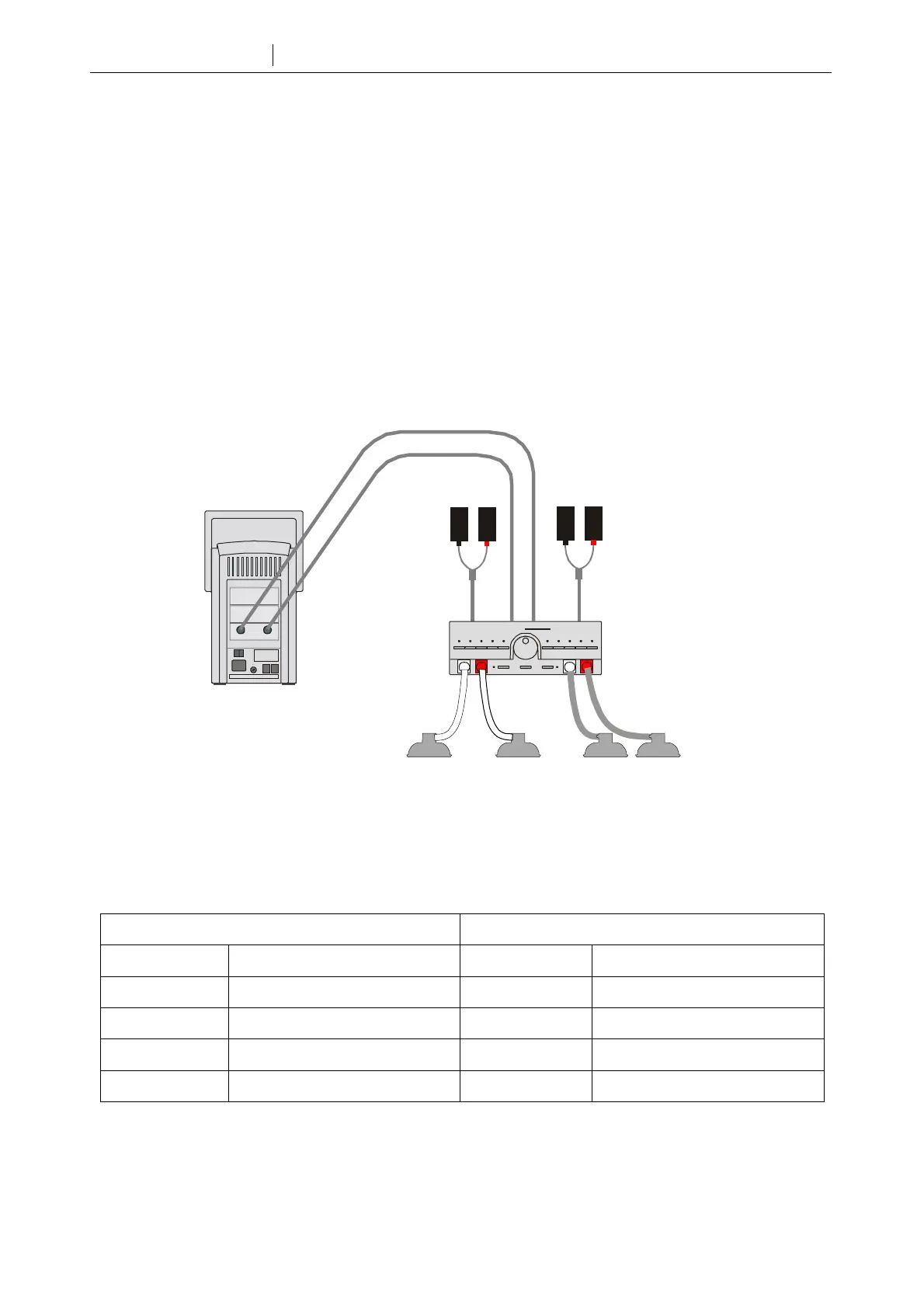

The electrotherapy unit has its outputs connected with the vacuum unit. Both vacuum and flat electrodes are attached
to the vacuum unit. Each channel on the vacuum unit has a switch. When the switch is on, current is brought to the
vacuum electrodes. When the switch is off, current is brought to the standard electrodes.
(the pictures serve only as an illustration, for actual interconnection follow the table Tab. 2.1 Configuration of output
connectors)
For interconnection, use the interface cables leading from BTL-5000 Puls outputs E1 and E2 and connected to BTL
vac inputs IN1 and IN2. See the BTL vac manual for details.
2.10.2 Interconnection of BTL-5000 Puls and BTL-5000 Sono
If combined therapy is used, connect the ultrasound and electrical stimulation units together.
Electrotherapy unit BTL-56xx Puls Ultrasound unit BTL-5710 Sono
Connector Connected accessories Connector Connected accessories
E1 Interface cable for ultrasound U1A 1 cm
2
ultrasound head
E2* electrodes E2* U1B 4 cm
2
ultrasound head
E3* electrodes E3* E input Interface cable for electrotherapy
* if they are available E output electrodes E1
BTL-5000
Puls (Combi)
BTL vac
