BTL-5000 SERIES
USER'S MANUAL
page 21 of 56
2.6.5.2 Ultrasound Therapy

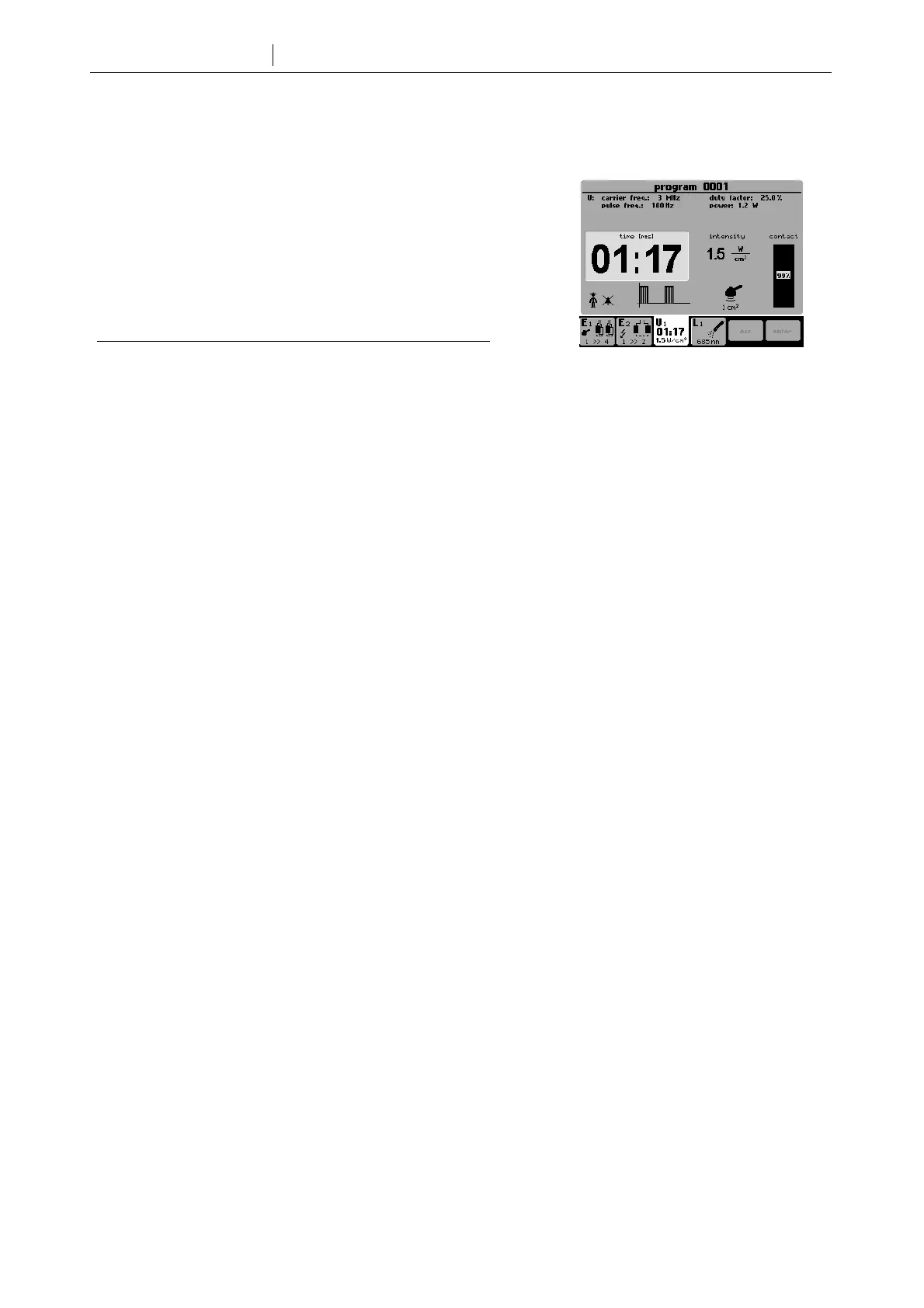

Generation of ultrasound energy by ultrasound head BTL-237 is indicated:
• on the screen – by value of intensity
• on the screen – by bar-graph showing contact of head with tissue
• on the screen – by time value showing the remaining time till the
end of therapy
• on the screen – by icon of ultrasound head and icon of signal type
• on the channel tab – by value of intensity and time
• On the ultrasound accessory BTL-237 – by blue light ring
Insufficient contact between the ultrasound head and the tissue
is indicated
by rapid blinking of the blue light ring on the head and blinking of the
information on intensity and time on the channel tab of the corresponding ultrasound generator.
This function is indicated by a figure symbol on the screen.
Acoustic indication is signaled by a symbol of bell. (If the function is disabled, the bell is crossed-out.)
2.6.5.3 Laser Therapy
Laser irradiation by BTL-448 laser probe is indicated:
• on the screen – by intensity value
• by acoustic signal (cannot be disabled)
• on the screen – by time value showing the remaining time till the end of therapy
• by green pilot light on laser probe
• by green or red beam
• on the screen - by icon of laser probe and signal
• on the channel tab – by value of intensity and time
Laser irradiation by BTL-445 laser cluster is indicated:
• on the screen – by intensity value
• by acoustic signal (cannot be disabled)
• on the screen – by time value showing the remaining time till the end of therapy
• by blue focusing beam
• on the screen - by icon of laser cluster and signal
• on the channel tab – by value of intensity and time
2.7 THERAPY PARAMETERS
Therapy parameters vary. Only the parameters are displayed that characterize the therapy and that can be set in
manual mode – by pressing the man button. For detailed description of parameters for individual therapies refer to the
User’s Guide.
