BTL-5000 SERIES
USER'S MANUAL
page 7 of 56

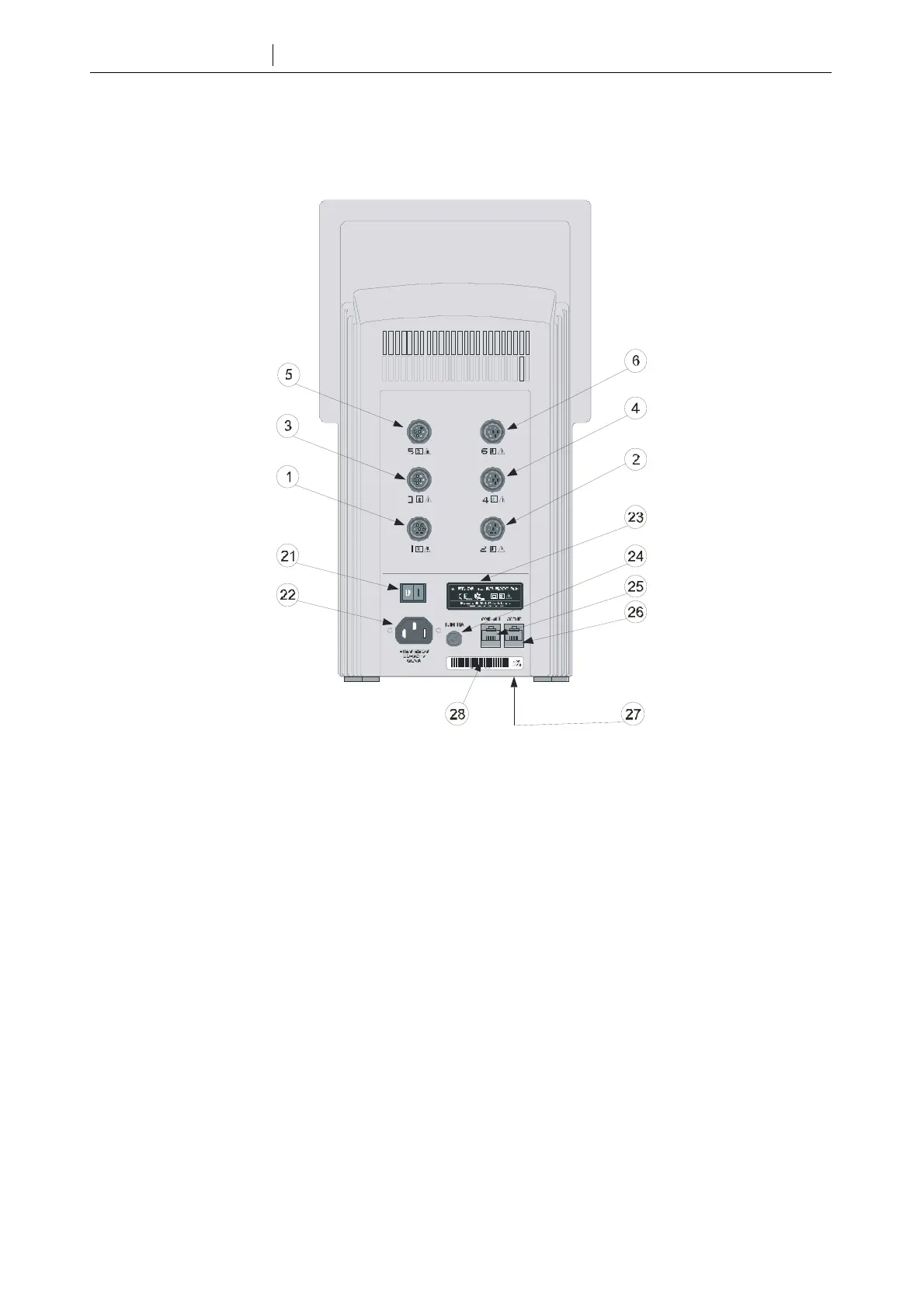

2.2 REAR VIEW
1 - 6 patient outputs – for exact configuration see Tab. 2.1
21 mains switch to switch the power supply on/off
22 socket for connection of the mains cable
23 label showing equipment type and manufacturer and safety precautions and warnings
24 mains fuse receptacle
25 in – communication line input
26 out – communication line output
27 voltage switch 230V / 115V (underneath the chassis)
28 label showing serial number and production date
