BTL-5000 SERIES

USER'S MANUAL

page 25 of 56

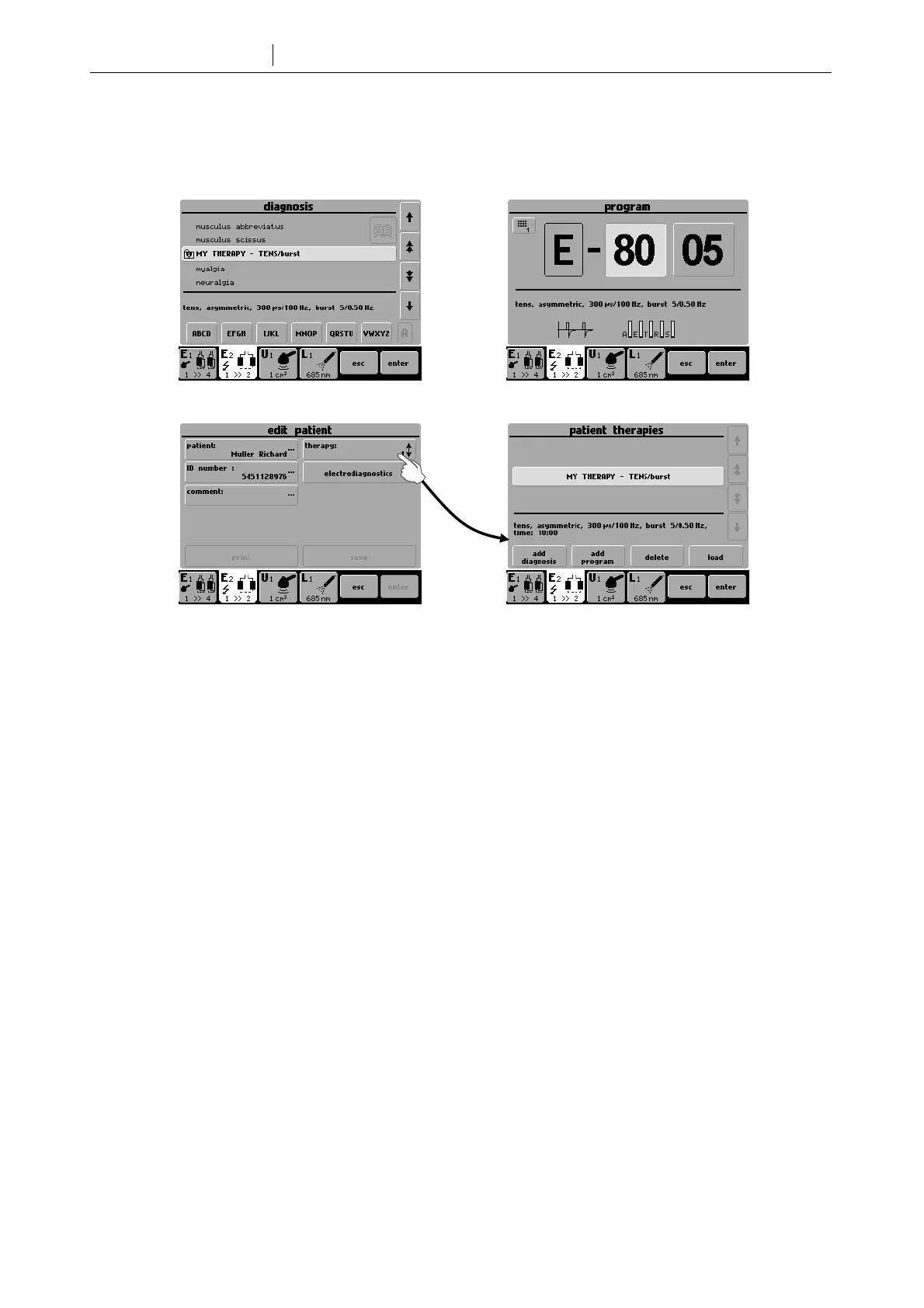

A saved therapy will be visible in the:

and in the list of therapies of the

selected patient

List of diagnoses List of programs
