Maintenance
Maintenance Plan
SnackFix 2016-08 81

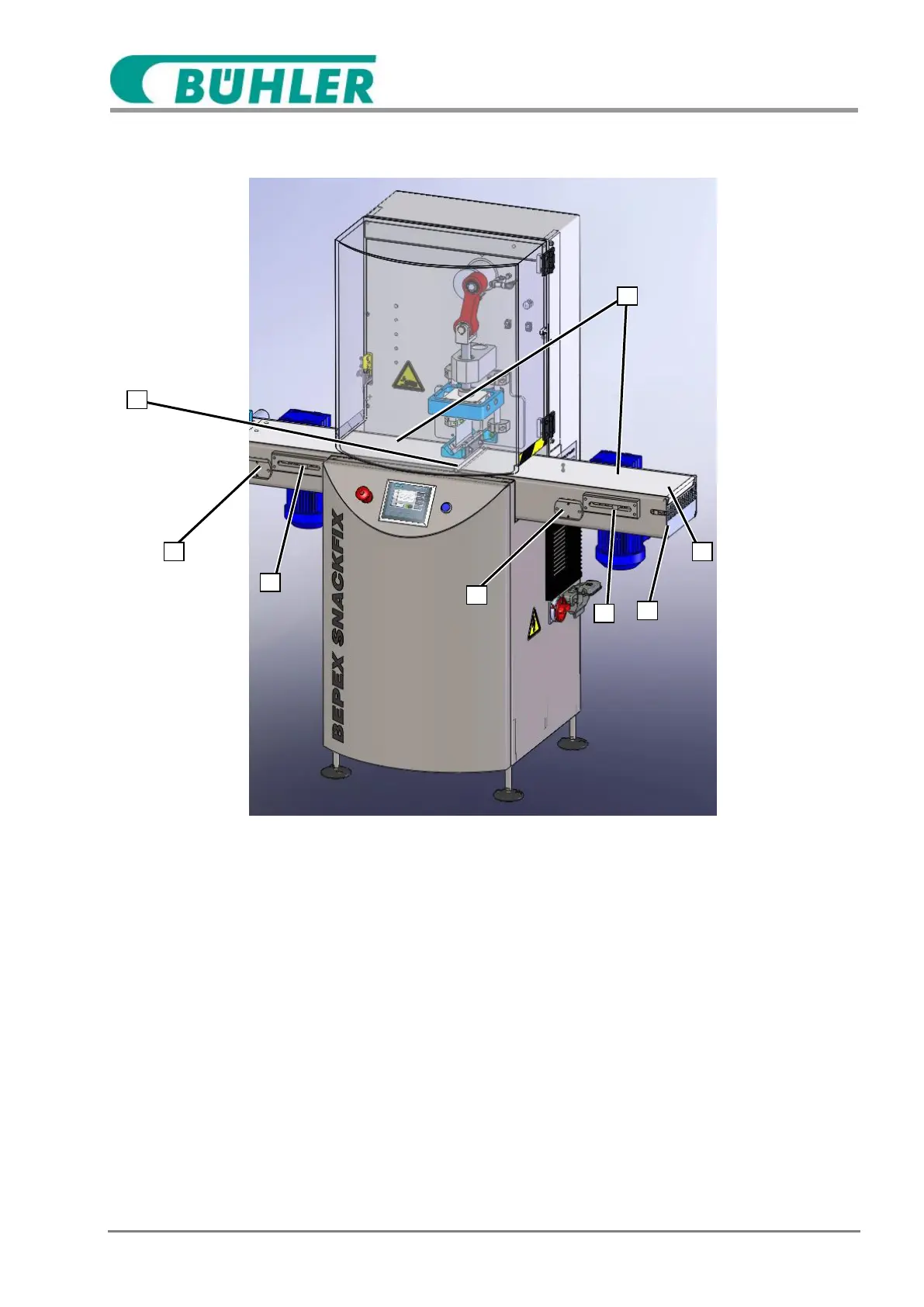

Fig. 29: Cutting unit
1
Belt edge
2
Scraper
3
Belt
4
Belt drive roll
5
Safety cover
6
Tensioning roll
9.
Release belt (6).
10.
Remove scraper and clean it.
11.
Clean surface and bottom side of the belt (3).
12.
Clean belt drive roll (4), belt tensioning roll (6).
13.
After wiping, install all demounted and cleaned parts.
14.
Tension the belt.
Conveyor belt
1
1
3
4
6
6
4
5
