Calorex PPT12 - 17 Spare Parts Lists; Ppt8 Alx Electric Box Assembly

Technical Manual
PPT8/12/16/22LX/LY SLIMLINE
Page 44
SD638160 ISSUE 22d
®
Calorex Heat Pumps Ltd. · The Causeway, Maldon, Essex CM9 4XD, UK
17.0 Spare Parts Lists
ASSY No SA639101 AT ISS 5 (07/11/2012). ELECTRIC BOX ASSY PPT8ALX
ITEM NO. PART No. DESCRIPTION QUAN UNITS
3 SD612053 CONTACTOR 25A 3+1N/O AUX 1 off
4 SD406350 TERMINAL BLOCK WDU16 2 off
5 SD409350 TERM BLOCK WDU 2.5N 15 off
6 SD403950 END BRACKET (EW35) 8.5mm 2 off
7 SD158551
CAPACITOR 55uF 470V 50Hz
±
5% 1 off
9 SD216550 FUSE HOLDER 1 off
10 SD035350 FUSE 3A 2 off
11 SD073150 HARD START CAPACITOR/RELAY 1 off
12 SD609811 LOOM ASSY PPT8/12 ALX/ALY 1 off
33 SD630911 EARTH LOOM 1 off
34 SD296650 TERM BLOCK BRASS 8 WAY (EARTH) 1 off
35 SD403851 TERMINAL BLOCK BARRIER WAP 16-35 1 off
36 SD072650 TERMINAL BLOCK 6 WAY 1 off

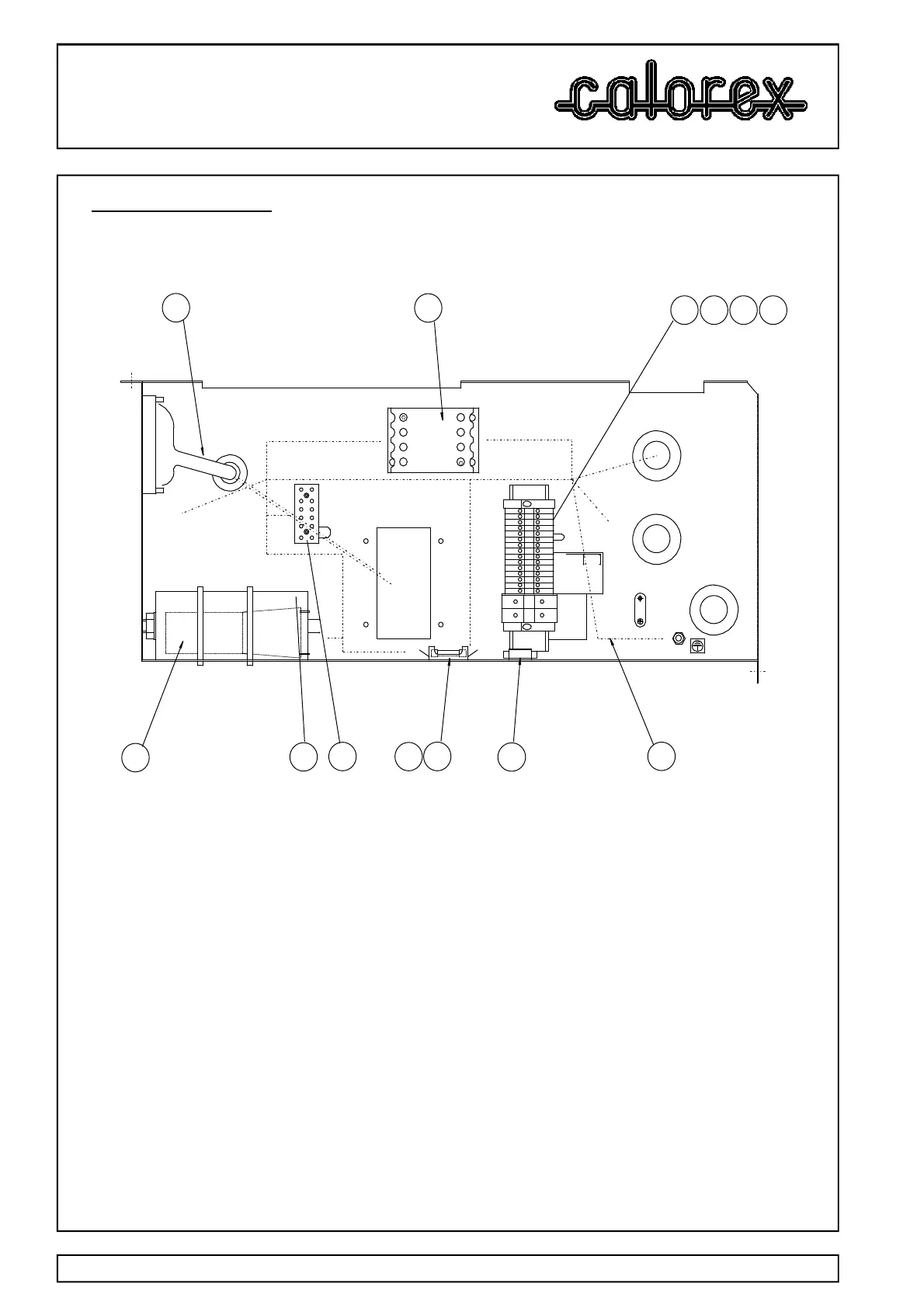

PPT8ALX ELECTRIC BOX ASSEMBLY
12
10
910
7
3
33
4 6 35 5
152 2
NEATLY COIL LEAD TO
TOP COVER INSIDE BOX
(800mm LONG)
36
HARD START
CAPACITOR
(WHEN FITTED)
EARTH BLOCK
1 3 5 13 2 4 6 14
NO NO
A1 A2
12 1 3 14 15
N
L
5 6 7 8 9
'Y' VRSN
ONLY
REVERSING
VALVE
WATER FLOW
SWITCH
FAN CAP
FAN NFAN L
16 17 18 1910 1 1
11
COMPRESSOR
CAPACITOR
