Calorex PPT12 - Electric Box Assy Ppt22 Alx (S)

Page 47
Calorex Heat Pumps Ltd. · The Causeway, Maldon, Essex CM9 4XD, UK
Technical Manual
PPT8/12/16/22LX/LY SLIMLINE
SD638160 ISSUE 22d
®
ASSY No SA639104 AT ISS 4 (11/09/2012). ELECTRIC BOX ASSY PPT22ALX(S)
ITEM NO. PART No. DESCRIPTION QUAN UNITS
3 SD612054 CONTACTOR 32A 3 +1 N/O AUX 1 off
4 SD612550 CONTACTOR OVERLOAD 25-32A 1 off
5 SD406350 TERMINAL BLOCK WDU16 2 off
6 SD409350 TERM BLOCK WDU 2.5N 15 off
7 SD403950 END BRACKET (EW35) 8.5mm 2 off
8 SD106553
CAPACITOR 70μF 420V 50/60Hz 1 off
10 SD216550 FUSE HOLDER 1 off
11 SD035350 FUSE 3A 2 off
13 SD609831 LOOM ASSY PPT16/22ALX(Y) 1 off
32 SD073150 CAPACITOR HARD START 2 off
35 SD630912 EARTH LOOM 1 off
36 SD296650 TERM BLOCK BRASS 8 WAY (EARTH) 1 off
37 SD403851 TERMINAL BLOCK BARRIER WAP 16-35 1 off
38 SD072650 TERMINAL BLOCK 6 WAY 1 off

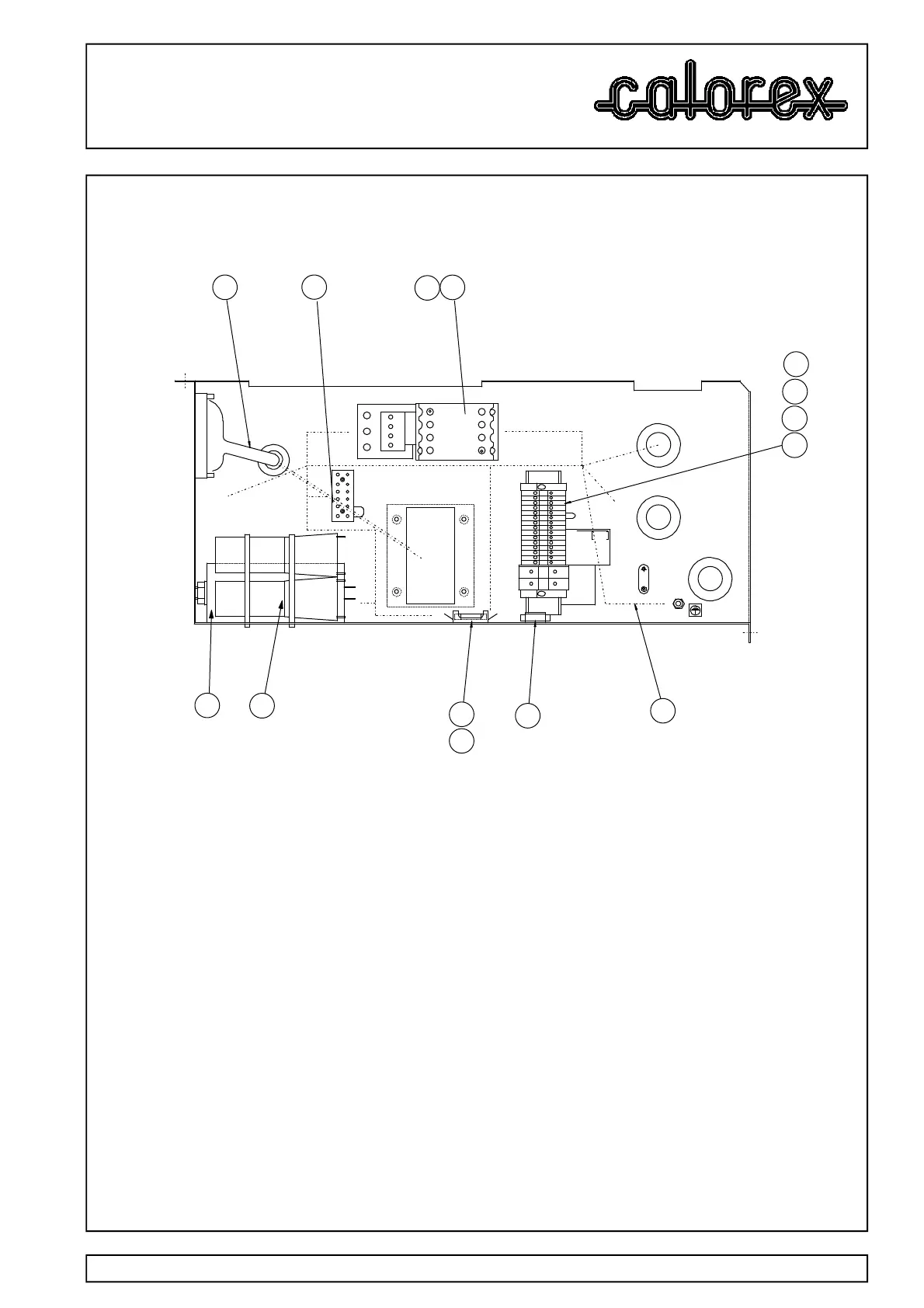

ELECTRIC BOX ASSY PPT22ALX (S)
3
4
13
11
10
11
8
35
2
5
7
37
6
15
2
38
EARTH BLOCK
3
5
13 NO
2 4 6 14
NO
A1
A2
2
4
6
9598 97 96
NO NC
121314 15
N
L
5
6
7
8
9
'Y' VRSN
ONLY
REVERSING
VALVE
WATER FLOW
SWITCH
FAN CAP
FAN N
FAN L
161718
19
10
11
32
2
HARD START
CAPACITOR
COMPRESSOR
CAPACITOR
1
