PPT8/12/16/22LX/LY SLIMLINE
SD638160 ISSUE 22d
®

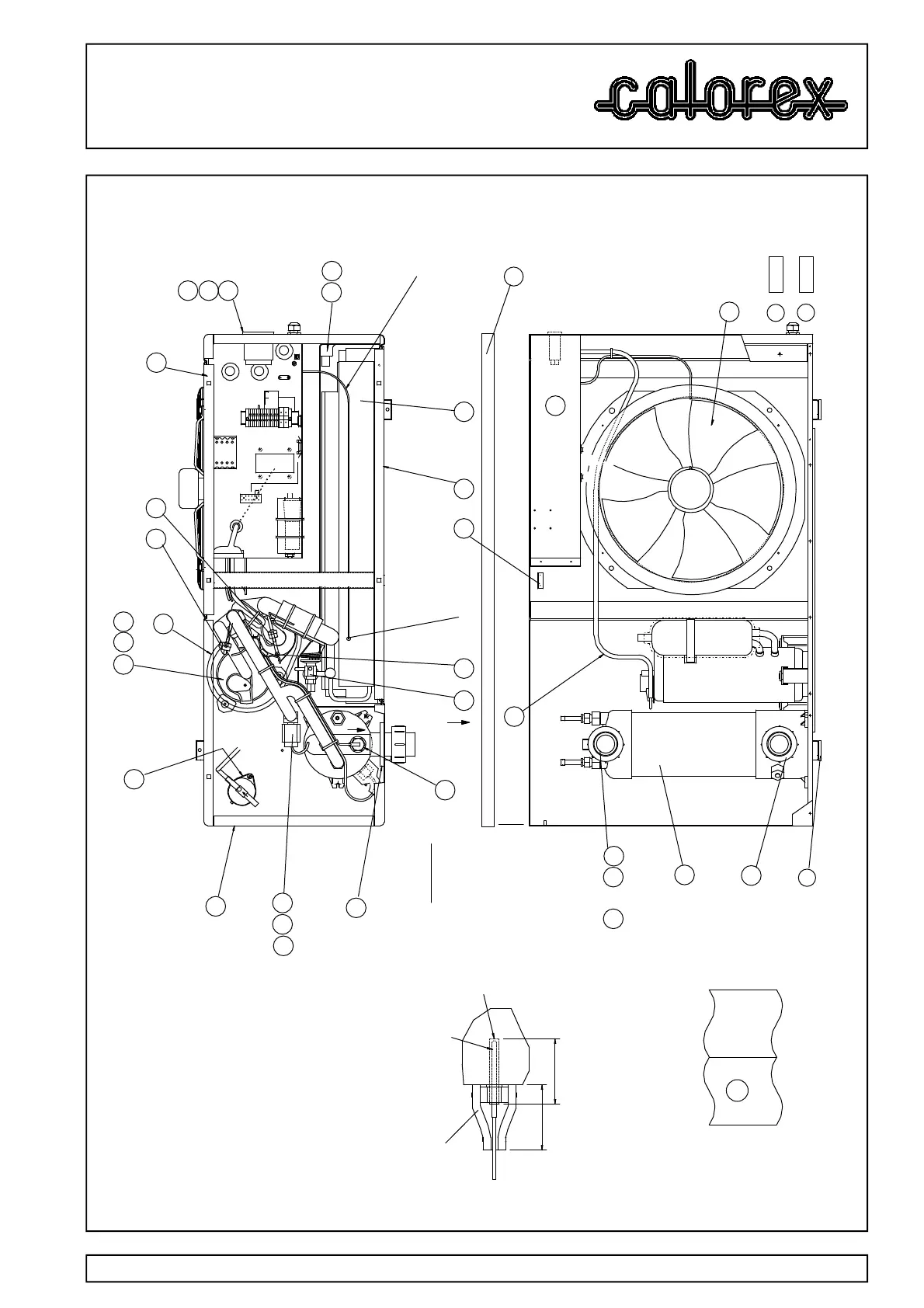

MAIN ASSEMBLY PPT12ALX
i
15
TEMPERATURE POCKET
85.00
CONDENSER WATER
SENSOR PROBE
(PART OF ITEM 20)
CABLE TIE AROUND
CABLE
CABLE TIE AROUND
POCKET NUT
PLACE THERMAL MASTIC INTO POCKET
THEN FULLY INSERT PROBE.
FIT THE INSULATION SLEEVE AND SECURE
WITH CABLE TIES TO BOTH THE POCKET
NUT AND THE PROBE CABLE TO SEAL
THE PROBE FROM AMBIENT AIR.
FIG 3
TEMP PROBE DETAIL
85.00 REF
(POCKET DEPTH)
INSULATION
NOTE DIRECTION OF ARROW
FLOW SWITCH TO BE HAND TIGHT (8Nm)
DO NOT USE A TOOL
WATER TEMPERATURE
SENSOR PROBE POCKET
(SEE FIG.3)
2
90
89
USE
OR
DEFROST STAT PROBE
POSITION IN EVAPORATOR
78
2
EARTH BLOCK
1213 1415
N
L
5 6 7 8 9
'Y' VRSN
ONLY
REVERSING
VALVE
WATER FLOW
SWITCH
FAN CAP
FAN N
FAN L
1617 18191011
4
6
7
14
28
3
5
16
10
8
25
13
2721
3
87
2
95
2
DEFROST PROBE CABLE (BLACK)
94
COMPRESSOR
JACKET
17
18
19
20
88
OR
9192
93
24 23
22
26
96
82
75
