Calorex PPT12 - Electric Box Assy Ppt22 Aly(S)

Technical Manual
PPT8/12/16/22LX/LY SLIMLINE
Page 54
SD638160 ISSUE 22d
®
Calorex Heat Pumps Ltd. · The Causeway, Maldon, Essex CM9 4XD, UK
ASSY No SA639111 AT ISS 1 (10/09/2012). ELECTRIC BOX ASSY PPT22ALY
ITEM NO. PART No. DESCRIPTION QUAN UNITS
3 SD612054 CONTACTOR 32A 3 +1 N/O AUX 1 off
4 SD612550 CONTACTOR OVERLOAD 25-32A 1 off
5 SD406350 TERMINAL BLOCK WDU16 2 off
6 SD409350 TERM BLOCK WDU 2.5N 15 off
7 SD403950 END BRACKET (EW35) 8.5mm 2 off
8 SD106553 CAPACITOR 70uF 420V 50/60Hz 1 off
10 SD216550 FUSE HOLDER 1 off
11 SD035350 FUSE 3A 2 off
13 SD609831 LOOM ASSY PPT16/22ALX(Y) 1 off
32 SD073150 CAPACITOR HARD START 2 off
35 SD630912 EARTH LOOM 1 off
36 SD296650 TERM BLOCK BRASS 8 WAY (EARTH) 1 off
37 SD403851 TERMINAL BLOCK BARRIER WAP 16-35 1 off
38 SD072650 TERMINAL BLOCK 6 WAY 1 off

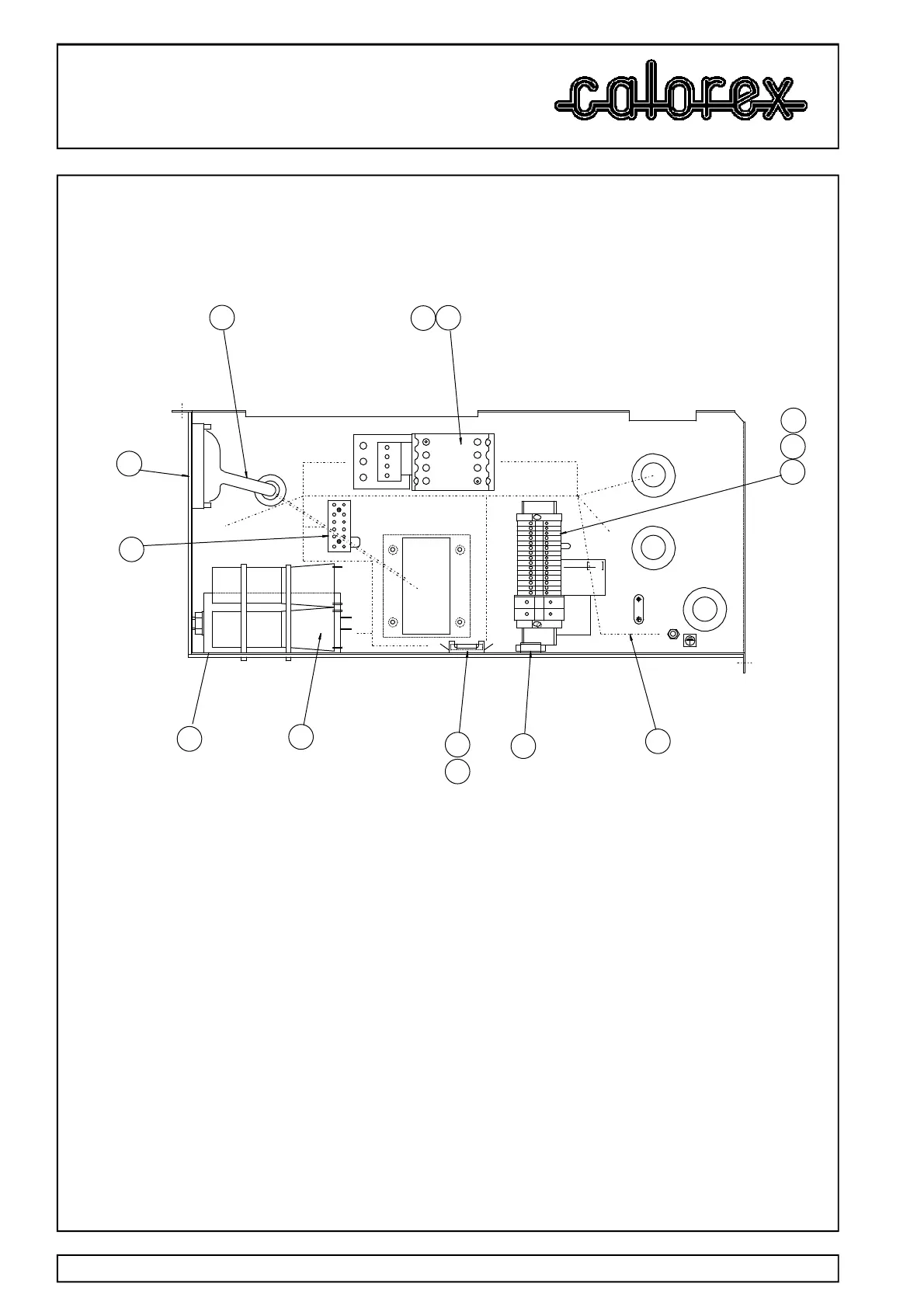

ELECTRIC BOX ASSY PPT22ALY(S)
3
4
13
11
10
11
35
5
7
6
15
2
2
32
2
8
38
36
EARTH BLOCK
1 3 5 13
NO
2 4 6 14
NO
A1
A2
2 4
6
98 97 96 95
NO NC
12
13
14 15
N
L
5 6 7 8 9 10 11
'Y' VRSN
ONLY
REVERSING
VALVE
WATER FLOW
SWITCH
FAN CAP
FAN N
FAN L
1617
18
19
HARD START
CAPACITORS
COMPRESSOR
CAPACITOR
