Calorex PPT12 - Soft Start for Ppt22 Alxs & Ppt22 Alys

Page 79
Calorex Heat Pumps Ltd. · The Causeway, Maldon, Essex CM9 4XD, UK
Technical Manual
PPT8/12/16/22LX/LY SLIMLINE
SD638160 ISSUE 22d
®
PUSH
RE-SET
TO
FAULT
LAMP
X
A
X
13
10
40 4114
31
12
2
11
1
44
COMPRESSOR
LOOM IN
S/START KIT
LOOM OUT
15
33343635
42
SECTION X-X
VIEW WITH LID REMOVED
VIEW ON ARROW A
WARNING
DISCONNECT
--------
240V AC
CENTRE LINE
1 3 5 13
14642
NL
A1 A2
1 2 3 4 5 6

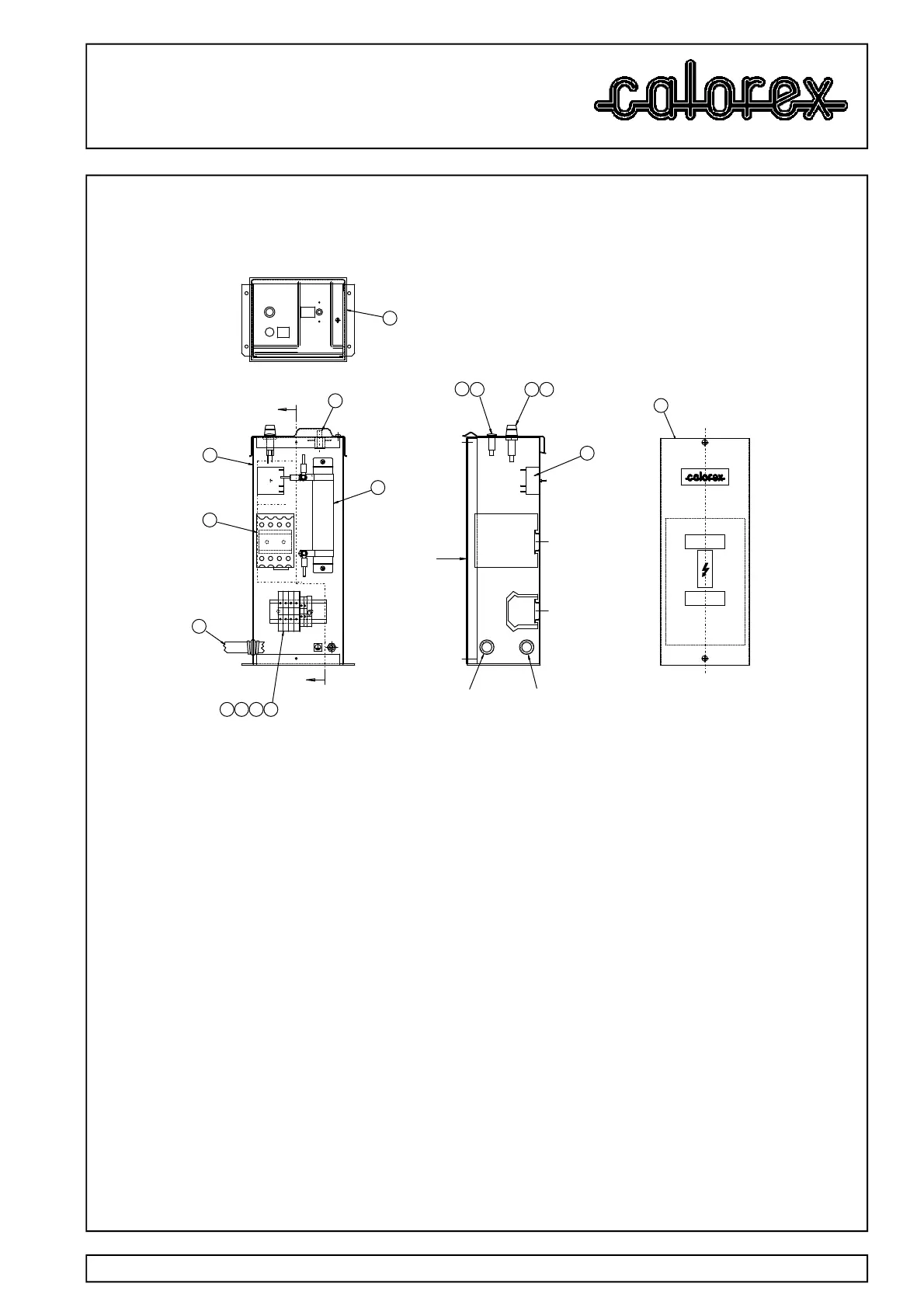

SOFT START FOR PPT22ALXS & PPT22ALYS
MAIN ASSEMBLY SOFTSTART FOR PPT22ALXS/ALYS
ITEM NO. PART No. DESCRIPTION QUAN UNITS
1 SD625950 ELECTRIC BOX S/START 1 off
2 SD626050 LID 1 off
10 SD083450 RESISTOR 4,5 OHMS 1 off
11 SD612053 CONTACTOR 25A 3+1N/O AUX 1 off
12 SD083350 DELAY TIMER 0.5 SEC 240vac 1 off
13 SD103253 THERMAL CUTOUT MANUAL RESET 1 off
14 SD159852 PILOT LIGHT AMBER 240v 1 off
15 SD626102 LOOM ASSY 1 off
16 SD626601 INTERNAL LOOM 1 off
31 SD217151 SEALING GASKET 1 off
33 SD403650 TERM BLOCK WDU6 4 off
34 SD403850 TERMINAL BLOCK BARRIER WAP 2.5 1 off
35 SD403950 END BRACKET (EW35) 8.5mm 1 off
36 SD403750 TERMINAL BLOCK WDU4 2 off
40 SD034850 FUSE HOLDER SINGLE BAYONET 1 off
41 SD035353 FUSE 1/4 x 1 1/4 1A 1 off
44 SD229852 WEATHERSHIELD 1 off
