Calorex PPT12 - Electric Box Assy Ppt22 Blx(S)

Technical Manual
PPT8/12/16/22LX/LY SLIMLINE
Page 50
SD638160 ISSUE 22d
®
Calorex Heat Pumps Ltd. · The Causeway, Maldon, Essex CM9 4XD, UK

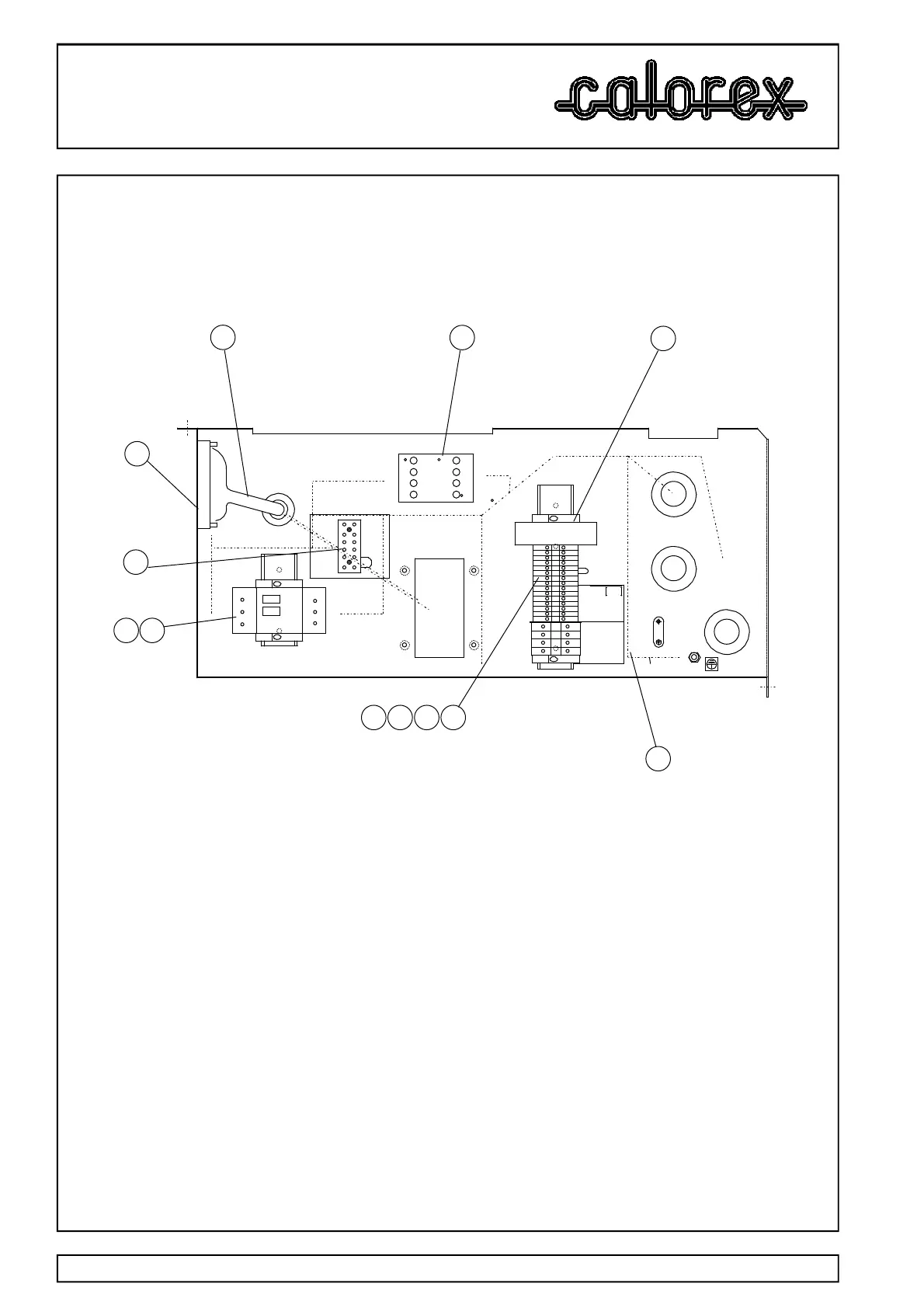

ASSY No SA639107 AT ISS 2 (11/09/2012). ELECTRIC BOX ASSY PPT22BLX(S)
ITEM NO. PART No. DESCRIPTION QUAN UNITS
3 SD612052 CONTACTOR 18A 3+1N/O AUX 1 off
4 SD611550 MOTOR STARTER O/LOAD 1.6-2.5A 1 off
5 SD614450 PHASE PROTECTION RELAY 1 off
6 SD409350 TERM BLOCK WDU 2.5N 15 off
7 SD403950 END BRACKET (EW35) 8.5mm 4 off
8 SD403850 TERMINAL BLOCK BARRIER WAP 2.5 1 off
9 SD403650 TERM BLOCK WDU6 4 off
12 SD630911 EARTH LOOM 1 off
13 SD616403 WIRING LOOM 3 PHASE 1 off
32 SD296650 TERM BLOCK BRASS 8 WAY (EARTH) 1 off
33 SD072650 TERMINAL BLOCK 6 WAY 1 off
ELECTRIC BOX ASSY PPT22BLX(S)
3
13
12
9 7 8 6
152 2
33
47
2
5
32
EARTH BLOCK
1 3 5 13 2 4 6 14
NO NO
A1 A2
121314155 6 7 8 9
'Y' VRSN
ONLY
REVERSING
VALVE
WATER FLOW
SWITCH
FAN CAP
FAN N
FAN L
161718191011
N
L2 L1
L3
1 3 5
2 64
14 11
L1 L2 L3
