Calorex PPT12 - Electric Box Assy Ppt8 Aly(S)

Page 51
Calorex Heat Pumps Ltd. · The Causeway, Maldon, Essex CM9 4XD, UK
Technical Manual
PPT8/12/16/22LX/LY SLIMLINE
SD638160 ISSUE 22d
®
ASSY No SA639108 AT ISS 1 (15/02/2013). ELEC BOX ASSY PPT8ALY(S)
ITEM NO. PART No. DESCRIPTION QUAN UNITS
3 SD612052 CONTACTOR 18A 3+1N/O AUX 1 off
4 SD406350 TERMINAL BLOCK WDU16 2 off
5 SD409350 TERM BLOCK WDU 2.5N 15 off
6 SD403950 END BRACKET (EW35) 8.5mm 2 off
7 SD158551 CAPACITOR 55uf 470V 50Hz+/-5% 1 off
9 SD216550 FUSE HOLDER 1 off
10 SD035350 FUSE 3A 2 off
11 SD073150 HARD START CAPACITOR 1 off
12 SD609811 LOOM ASSY PPT8/12 ALX/ALY 1 off
33 SD630911 EARTH LOOM 1 off
34 SD296650 TERM BLOCK BRASS 8 WAY (EARTH) 1 off
35 SD403851 TERMINAL BLOCK BARRIER WAP 16-35 1 off
36 SD072650 TERMINAL BLOCK 6 WAY 1 off

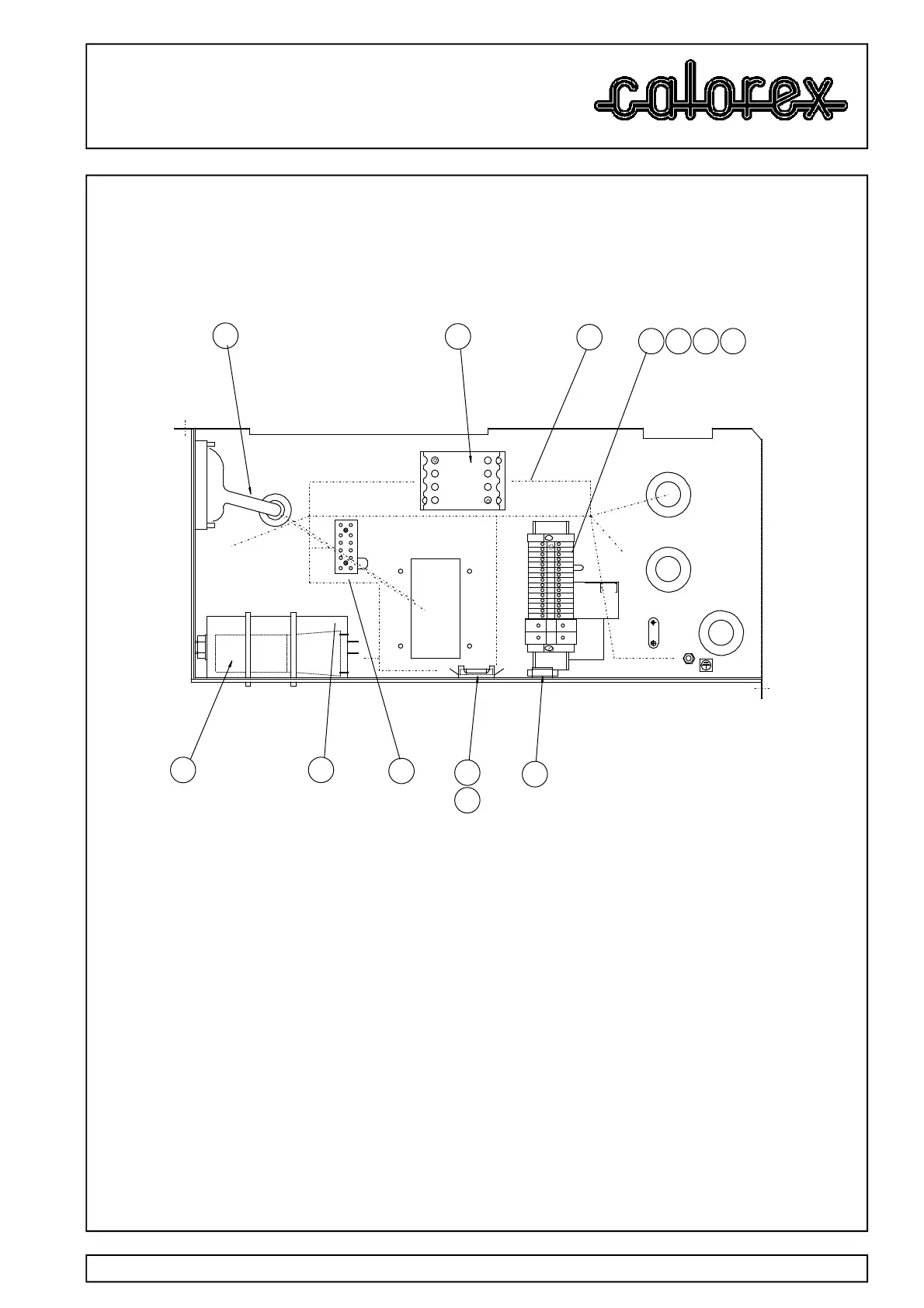

ELECTRIC BOX ASSY PPT8ALY(S)
3
10
9
10
33
4 6 35 5
152 2
7
36
EARTH BLOCK
1 3 5 13 2 4 6 14
NO NO
A1 A2
121314 15
N
L
5 6 7 8 9
'Y' VRSN
ONLY
REVERSING
VALVE
WATER FLOW
SWITCH
FAN CAP
FAN N
FAN L
161718 191011
12
11
HARD START CAPACITOR
(WHEN FITTED)
NEATLY COIL LEAD TO
TOP COVER INSIDE BOX
(800mm LONG)
COMPRESSOR
CAPACITOR
