Calorex PPT12 - Electric Box Assy Ppt12 Bly(S)

Page 55
Calorex Heat Pumps Ltd. · The Causeway, Maldon, Essex CM9 4XD, UK
Technical Manual
PPT8/12/16/22LX/LY SLIMLINE
SD638160 ISSUE 22d
®

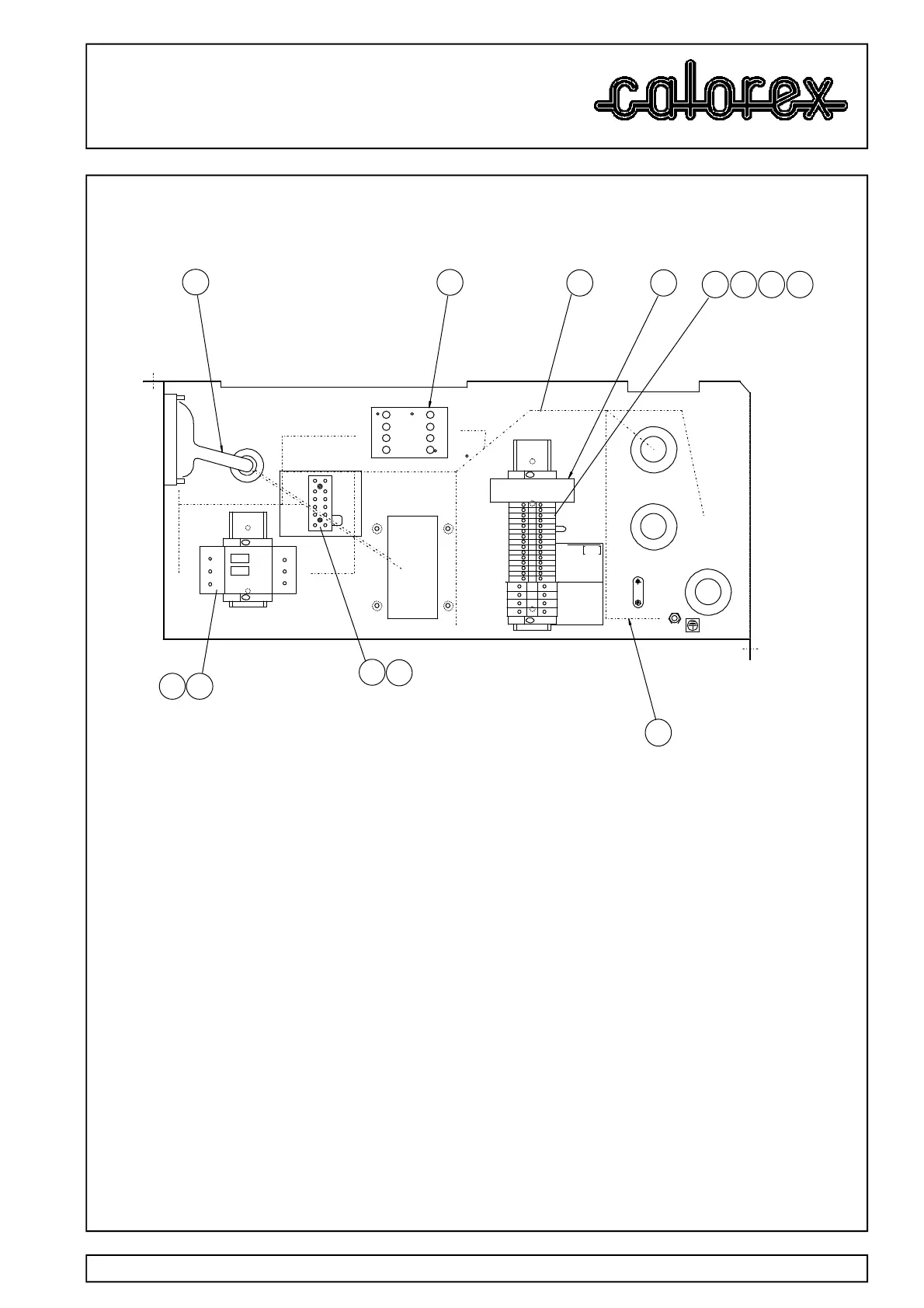

ASSY No SA639112 AT ISS 1 (03/04/2013). ELECTRIC BOX ASSY PPT12BLY(S)
ITEM NO. PART No. DESCRIPTION QUAN UNITS
3 SD612050 CONTACTOR 9A 3+1 N/O AUX 1 off
4 SD611550 MOTOR STARTER O/LOAD 1.6-2.5A 1 off
5 SD614450 PHASE PROTECTION RELAY 1 off
6 SD409350 TERM BLOCK WDU 2.5N 15 off
7 SD403950 END BRACKET (EW35) 8.5mm 4 off
8 SD403850 TERMINAL BLOCK BARRIER WAP 2.5 1 off
9 SD403650 TERM BLOCK WDU6 4 off
11 SD630911 EARTH LOOM 1 off
12 SD616403 WIRING LOOM 3 PHASE 1 off
30 SD296650 TERM BLOCK BRASS 8 WAY (EARTH) 1 off
31 SD072650 TERMINAL BLOCK 6 WAY 1 off
SA636112
ELECTRIC BOX ASSY PPT12BLY(S)
NEATLY COIL LEAD TO
TOP COVER INSIDE BOX
(800mm LONG)
3
12
11
9 7 8 6
154 2
47
2
5
EARTH BLOCK
1 3 5 13 2 4 6 14
NO NO
A1 A2
121314155 6 7 8 9
'Y'
VRSN
ONLY
REVERSING
VALVE
WATER
FLOW
SWITCH
FAN
CAP
FAN
N
FAN
L
161718 191011
N
L2 L1
L3
1 3 5
2 64
1411
L1 L2 L3
30
31
12
