Calorex PPT12 - Electric Box Assy Ppt12 Aly(S)

Technical Manual
PPT8/12/16/22LX/LY SLIMLINE
Page 52
SD638160 ISSUE 22d
®
Calorex Heat Pumps Ltd. · The Causeway, Maldon, Essex CM9 4XD, UK
ASSY No SA639109 AT ISS 1 (07/05/2013). ELECTRIC BOX ASSY PPT12ALY(S)
ITEM NO. PART No. DESCRIPTION QUAN UNITS
3 SD612053 CONTACTOR 25A 3+1N/O AUX 1 off
4 SD406350 TERMINAL BLOCK WDU16 2 off
5 SD409350 TERM BLOCK WDU 2.5N 15 off
6 SD403950 END BRACKET (EW35) 8.5mm 2 off
7 SD486650 CAPACITOR FOR COMP 60uF 470V 1 off
8 SD216550 FUSE HOLDER 1 off
9 SD035350 FUSE 3A 2 off
10 SD073150 CAPACITOR, HARD START 1 off
11 SD609811 LOOM ASSY PPT8/12 ALX/ALY 1 off
32 SD630911 EARTH LOOM 1 off
33 SD296650 TERM BLOCK BRASS 8 WAY (EARTH) 1 off
34 SD403851 TERMINAL BLOCK BARRIER WAP 16-35 1 off
35 SD072650 TERMINAL BLOCK 6 WAY 1 off

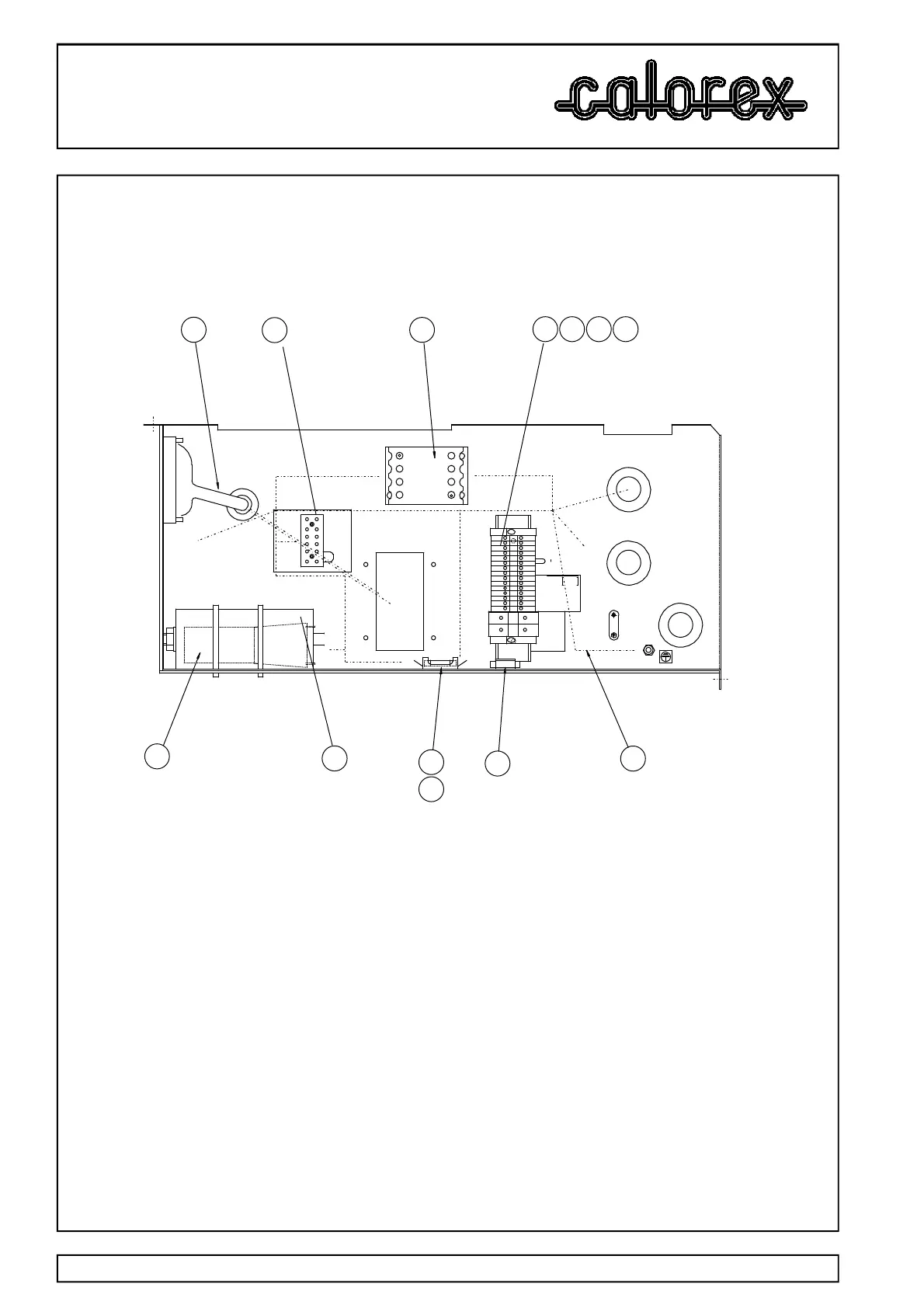

ELECTRIC BOX ASSY PPT12ALY(S)
3
11
9
10
8
9
7
32
4 6 34 5
152 2
35
HARD START CAPACITOR
(WHEN FITTED)
EARTH BLOCK
1 3 5 13 2 4 6 14
NO NO
A1 A2
12 13 14 15
N
L
5 6 7 8 9
'Y' VRSN
ONLY
REVERSING
VALVE
WATER FLOW
SWITCH
FAN CAP
FAN NFAN L
16 17 18 1910 11
