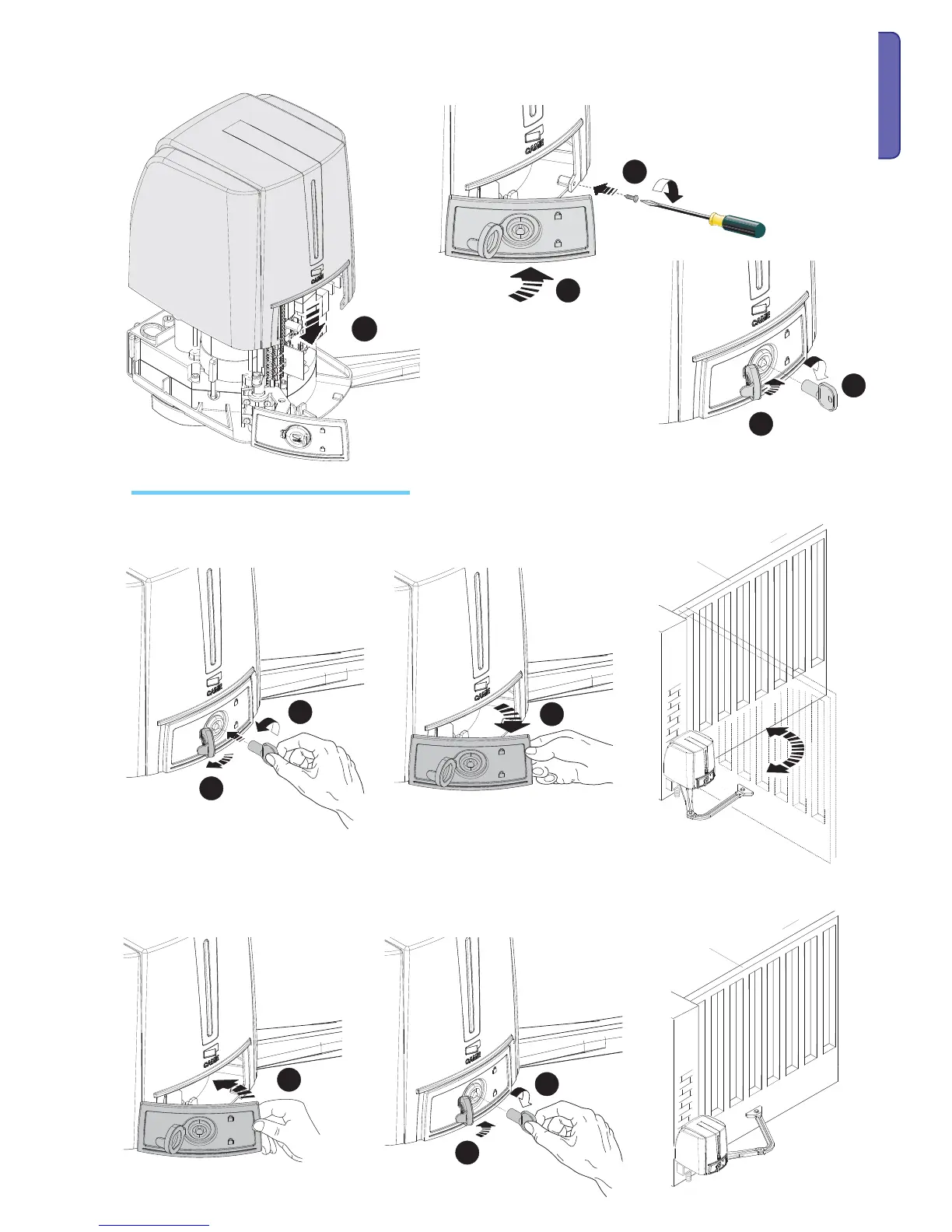

RELEASE - Remove the protective cap from the lock Œ . Insert the trilobe key and turn it anti-
clockwise . Open the hatch and activate the release override lever Ž .
Manual release override and blocking of the gearmotor
BLOCK - Close the release override hatch . Insert the trilobe key and turn it clockwise . Insert the
protective cap 
.
After making the electrical connections and necessary programming, fi
t the cover onto the gearmotor and fasten it . Close the hatch Ž, block the
gearmotor using the key and fi t the protective ca
p .
Note: when fi
tting the cover, be careful with the cable connecting the FA001 card to the electronic card.
