Mounting the mechanical endstops (if no mechanical strike plates are included)

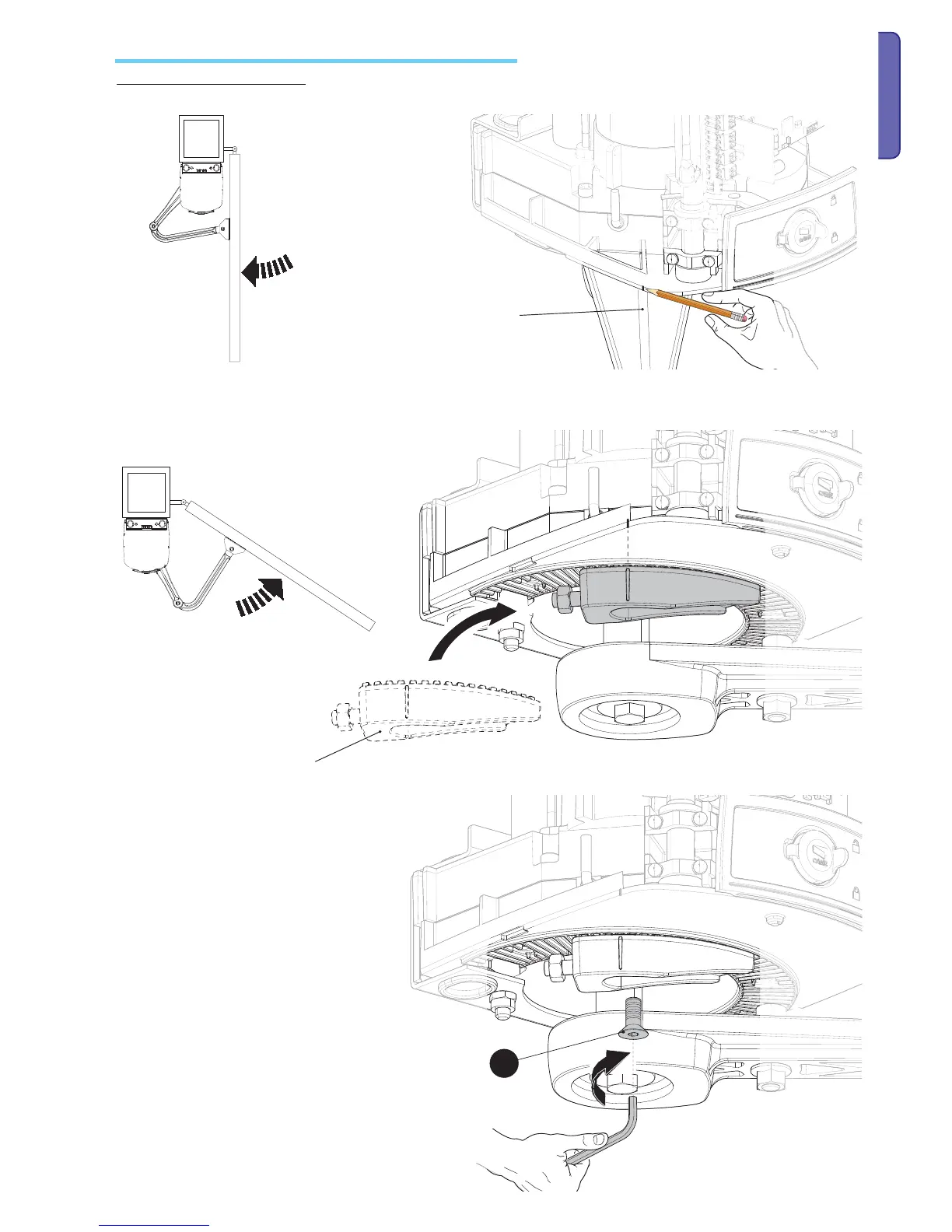

Manually close the leaf. Insert the mechanical stop as shown. The mark on the case must match the groove on the stop.
Fasten the stop using the bolt 󱤗.
Mechanical endstop
Centre of the arm
For the opening mechanical endstops .
With the gearmotor released, completely open the leaf, manually. Mark the case near the centre of the arm.
