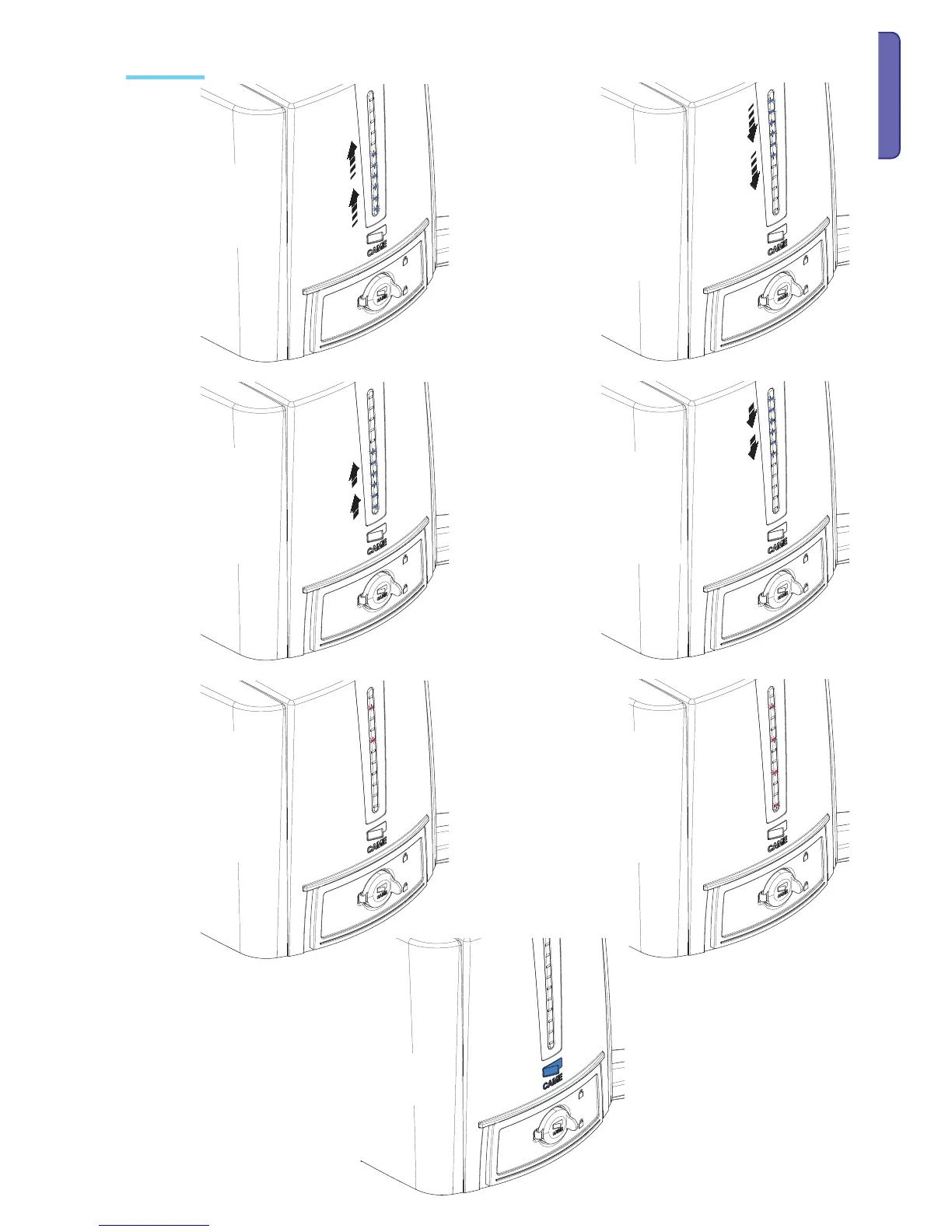

LED signal light
- QUICK switching-on
of th
e blue LEDs -
UPWARDS, signals the
leaves are opening.
- SLOW switching-on of
blue LEDs - UPWARDS,
signals that the leaves
are in opening slow
down.
- Red flashing LEDs 1
and 2, signal encoder
malfunction, call for
assistance.
- Red flashing LEDs 1, 2,
3 and 4, signal that the
normally closed (N.C.)
contacts are open (e.g.
photocells, stop button).
- QUICK switching-on
of the blue LEDs -
DOWNWARDS, signals
that the leaves are
closing.
- SLOW switching-
on of blue LEDs -
DOWNWARDS, signals
that the leaves are in
closing slow down.
- The CAME logo stays lit
always.
