CAME FA40230 User Manual

d
e
a
b
f
g
h
f
g
i
h
c
p.
10
10 - Manual code:
119 D W 02
119DW 0 2 ver.
2.0
2.0 06/2012 © CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.A. to notify said changes.
ENGLISH

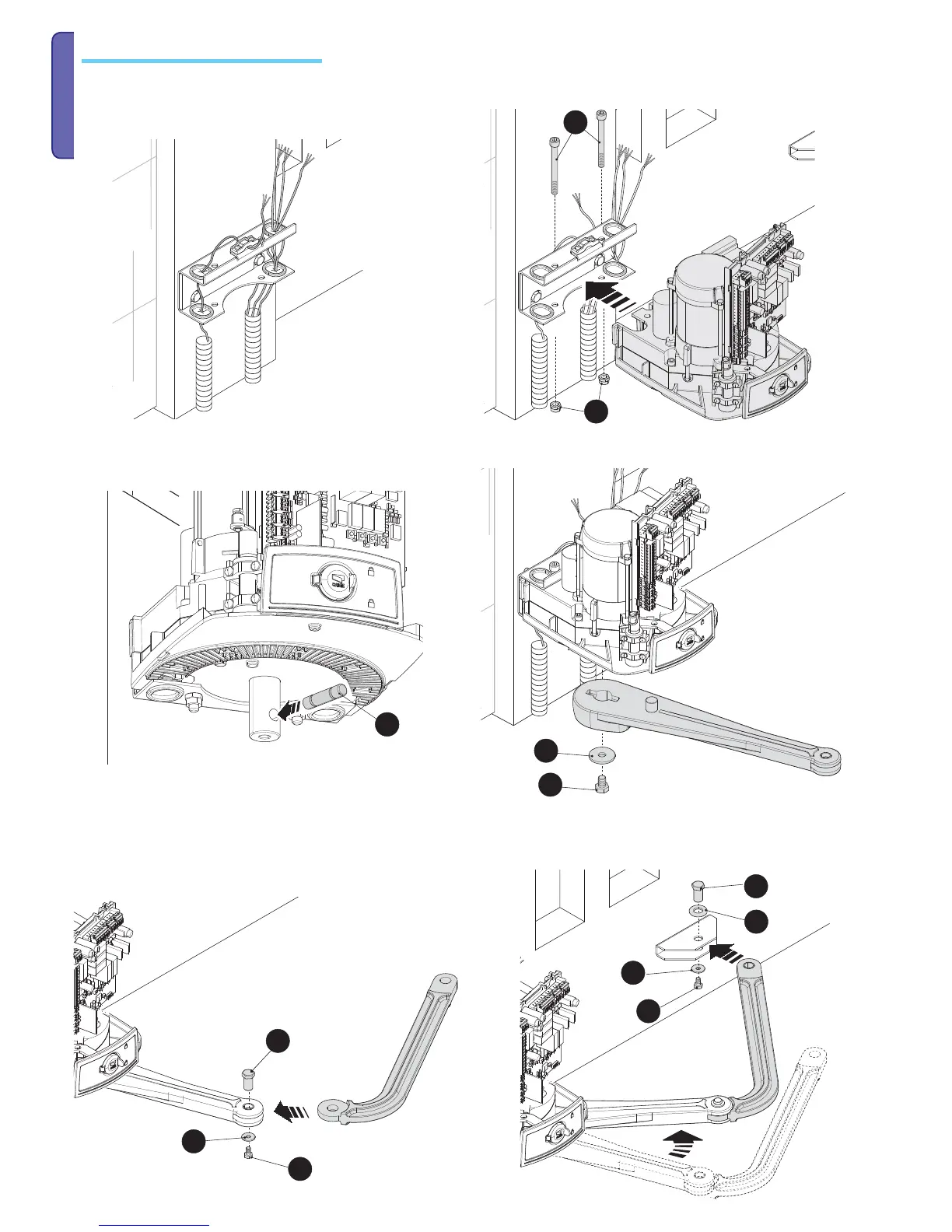

Fit plug 󱤐into the gearmotor shaft hole. Fasten the transmission arm to the shaft with slow-shaft washer 󱤑and the bolt 󱤒.
Fasten the drive arm to the transmission arm with the pin, bolt and washer (󱤓󱤔󱤕).
Release the gearmotor (see paragraph manual release override and block of the gearmotor), fasten the drive arm to the gate bracket as shown in the
drawing(󱤓󱤖󱤔󱤕).
Set up the required electrical cables threading them through the cable glands and blocking them to the gate post fastening U bracket. Insert the
gearmotor into the bracket and fasten it with nuts and bolts (󱤎 󱤏).
Installing the gearmotor and transmission arms

CAME FA40230 Specifications

General

Brand	CAME
Model	FA40230
Category	Gate Opener
Language	English
