CAME FA40230 User Manual

CANCELLI AUTOMATICI
R700
CANCELLI AUTOMATICI
R800
10 11 ES TS 1 2 3 3P 4 5 7 CX CY
+ENC1-
+ENC2-
S1 GND
A B
AF
CAME
ACCESS CONTROL
p.
19
19 - Manual code:
119 D W 02
119DW 0 2 ver.
2.0
2.0 06/2012
© CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.A. to notify said changes.
ENGLISH

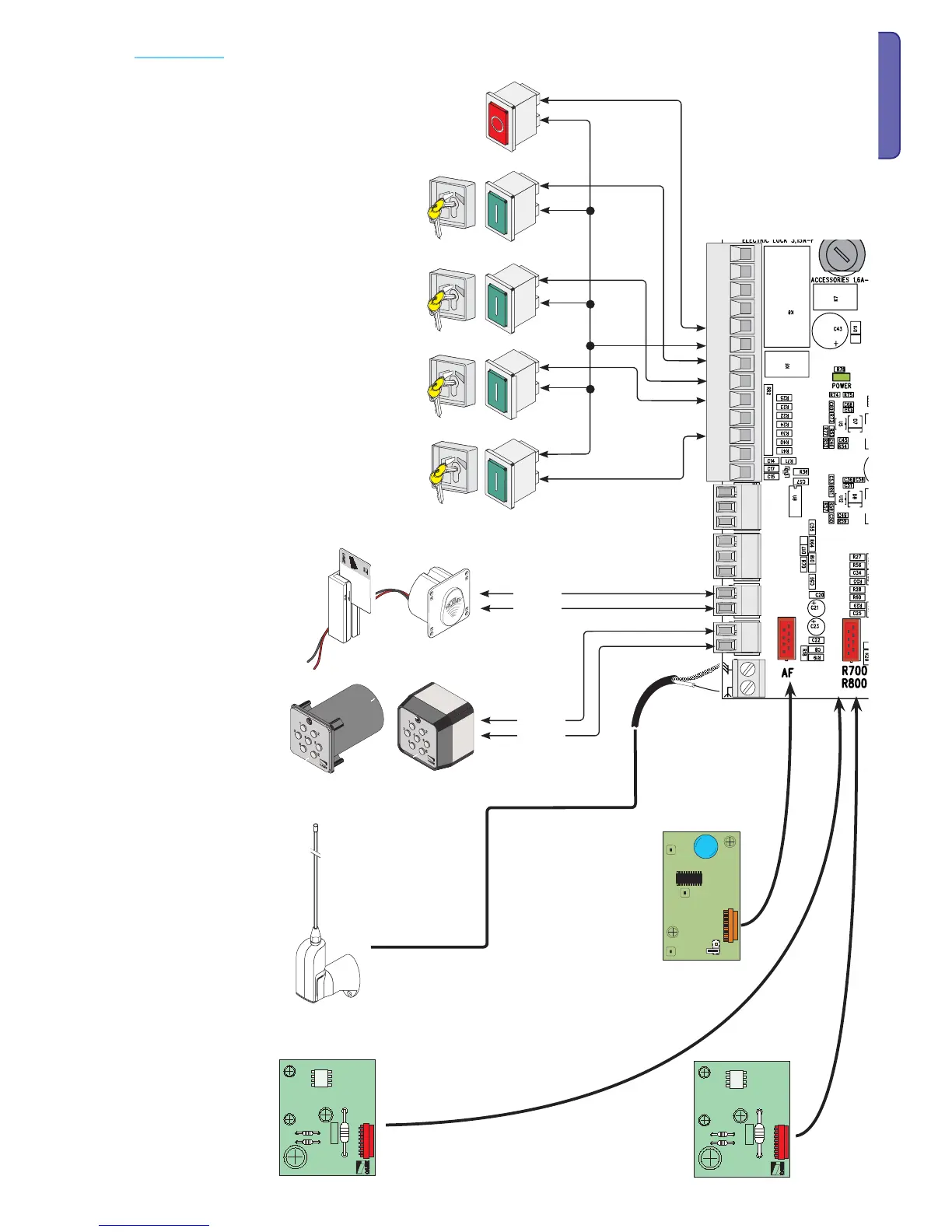

Command devices
Stop button (N.C. contact.). Gate stop button that excludes the automatic
closing cycle, to resume movement press the command button or use
another command device.
N.B.: if contact is unused, select 0 (Deactivated) from the F 1
function.
Opening device (N.O. contact)
Command device (N.O. contact). Commands for opening
and closing the gate, see feature F 7.
Device for partial or pedestrian opening (N.O. contact).
Command for opening a leaf for pedestrian passages.
Closing device (N.O. contact)
N.B.: plug in the (R700) coding card
for the (TSP00) sensor or the (LT001)
card reader to be recognised.
Antenna with RG58 cable for
remote controls.
N.B.: insert the R800
decoding board to have
the S6000/S7000 keypad
selector recognised.
AF remote control card.
Red
Black
White
Blue
(N.O.) contact. for command device
(Transponder or card reader with
R700 board).
(N.O.) contact. for command
device (keypad selector with
R800 board).
