2.0 06/2012
© CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.A. to notify said changes.
ENGLISH

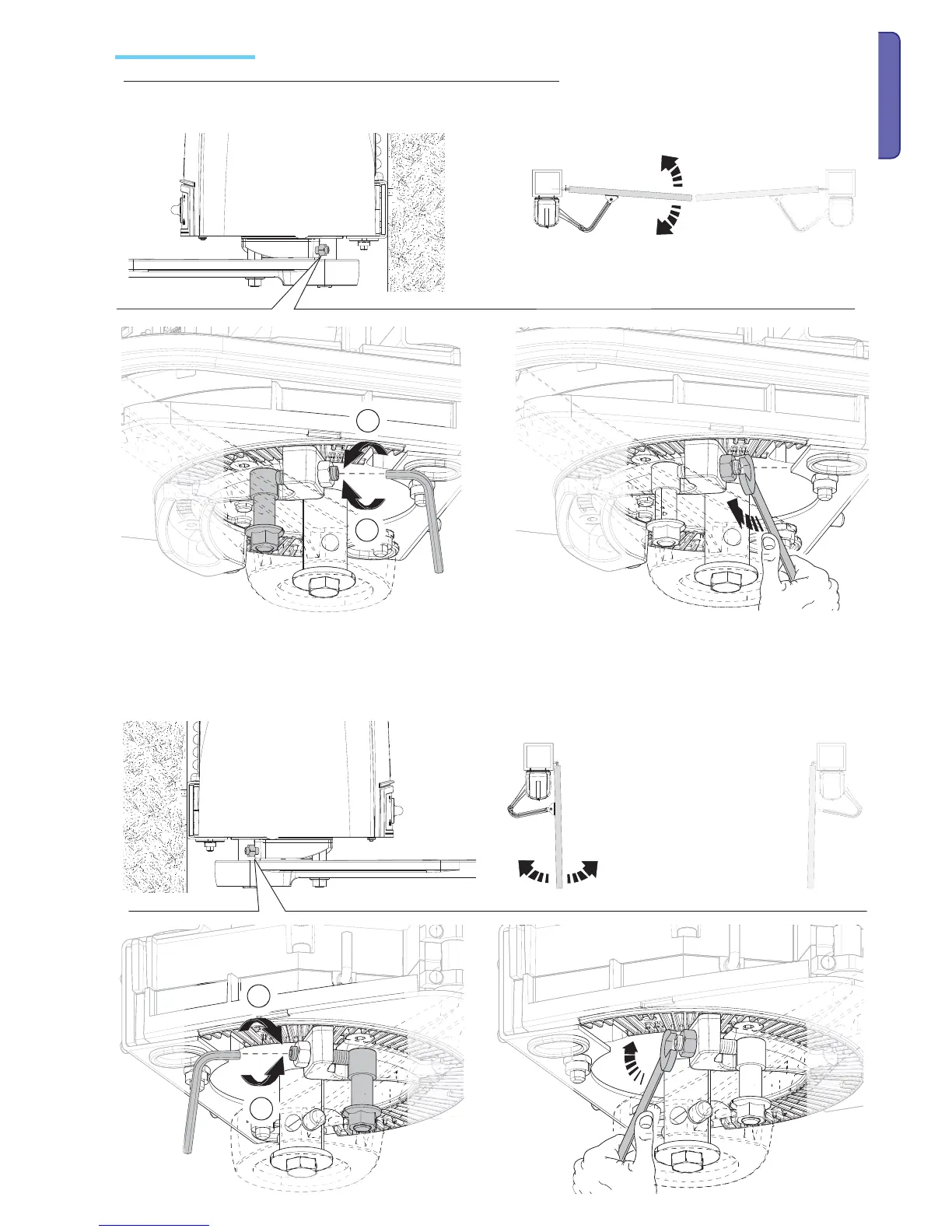

Adjusting the limit switches
In the same way, adjust the opening limit-switch by turning the grub screw of the other stop (see drawing).
Adjusting the closing and opening endstop points of left-side gearmotors (internal view).
With the gearmotor released and the gate leaf closed, adjust the closing limit-switch grub screw by turning it either clockwise or anti clockwise. Fasten
the grub screw using the nut (see drawing).
