CAME FA40230 User Manual

24V 12V 0
U V W X Y E
L1T L2T CT
L N
10 11 ES
24V 12V 0
10 11 ES TS 1 2 3 3P 4 5 7 CX CY
U V W X Y E
L2T L1T
1 2 3 4
0 12 24
p.
18
18 - Manual code:
119 D W 02
119DW 0 2 ver.
2.0
2.0 06/2012 © CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.A. to notify said changes.
ENGLISH

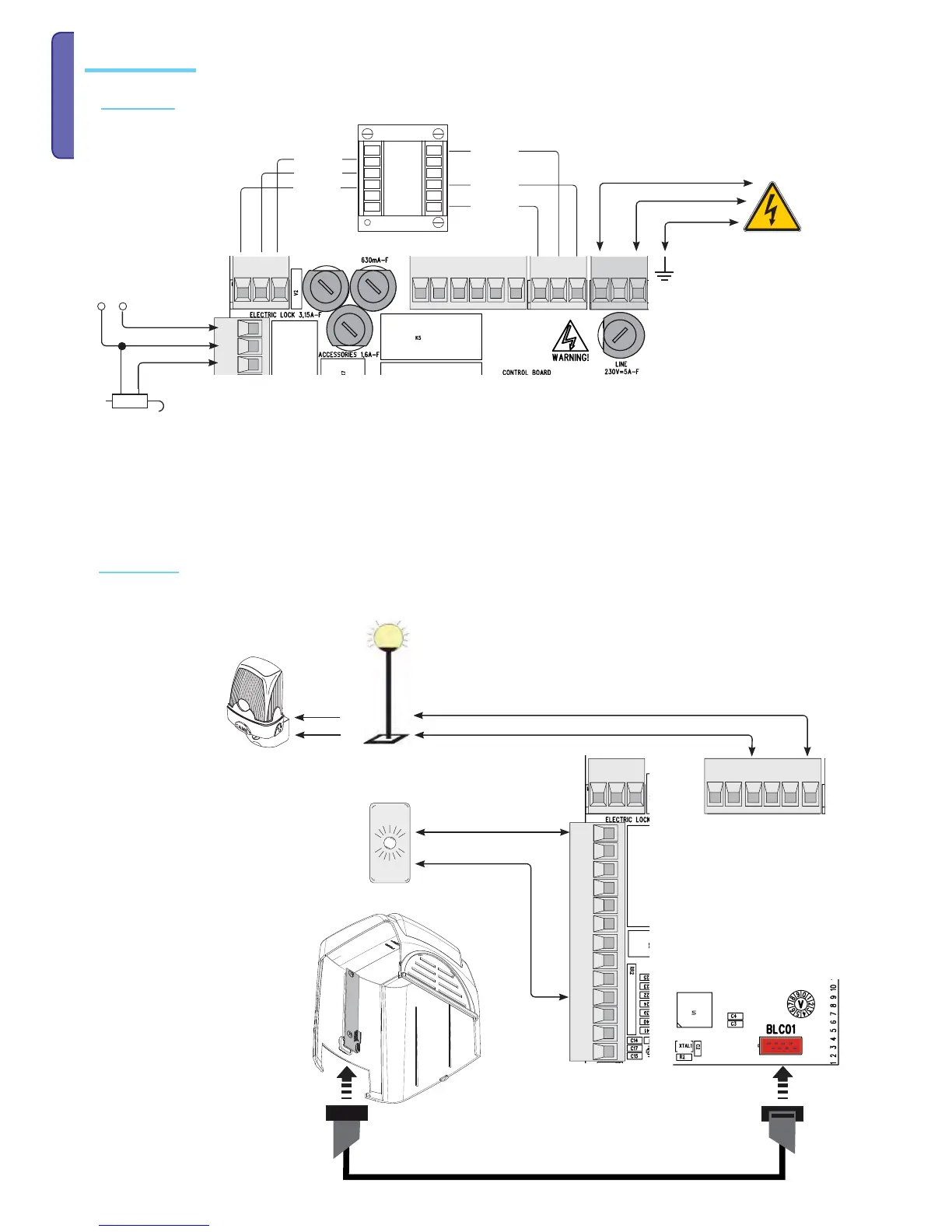

Electrical connections
Power supplies
Terminals for powering the
24V A
C accessories
Overall allowed power: 50 W
Power supply at 230
V AC, Frequency 50 /
60 Hz
12 V - 15 W max. Electro-lock
FA001 board. Signals the gate movement
and slow down phases, see signal LED light
paragraph.
Gate open warning light (Contact rated for: 24 V - 3 W
Max.). Signals gate status, see feature F 10.
Movement Flasher (con-
tact rated for: 230 V - 25
W Max.). Flashes while
gate opens and closes.
Warning devices
Cycle or courtesy lamp (contact rated for: 230 V - 25 W Max).
Aux
iliary connection to freely position outdoor lamp, to enhance lighting when par-
king or driving off.
Cycle: it stays lit from the moment the lead starts opening until it is completely closed
(including the automatic closing time).
Courtesy: stays lit for a set time of 180 seconds.
Transformer
Black
Red
White
Orange
Purple
Blue
