U V W X Y E
+ ENC1 - + ENC2 -
FA40230FA40230CB
U V W X Y E
+ ENC1 - + ENC2 -
FA40230FA40230CB
FA40230CBFA40230
FA40230CBFA40230
U V W X Y E
+ ENC1 - + ENC2 -
U V W X Y E
+ ENC1 - + ENC2 -
FA40230CB
p.
20
20 - Manual code:
119 D W 02
119DW 0 2 ver.
2.0
2.0 06/2012 © CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.A. to notify said changes.
ENGLISH
Gearmotor with encoder
Encoder wire colours:
+ = Wh
ite
ENC = Brown
- = green
Encoder wire colours:
+ = White
ENC = Brown
- = green

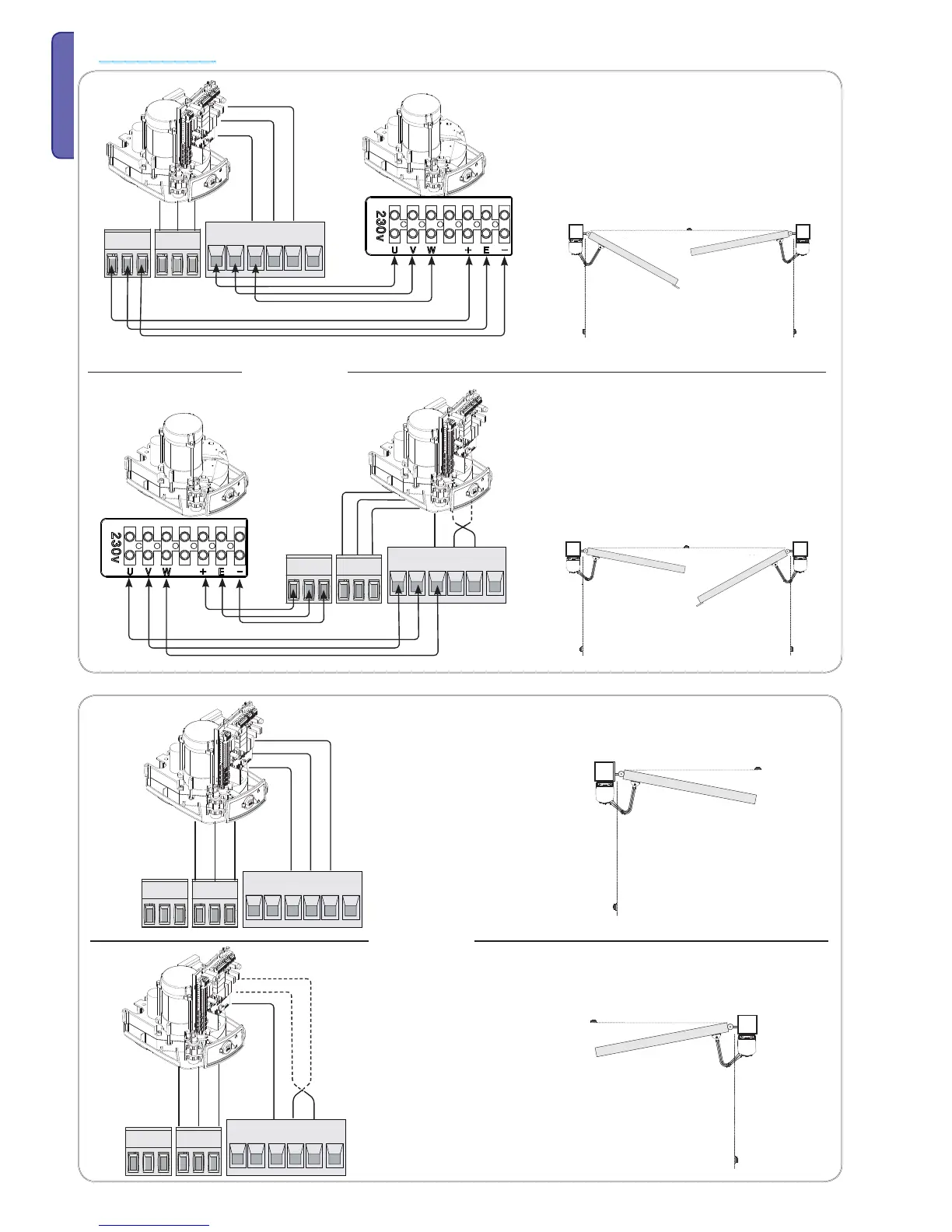

Default setting for electrical connections:
operator installed on the left and gearmotor
installed on the right (internal vie
w) with operator
closing delay.
Electrical connections:
gearmotor installed on the left and operator
installed on the right (internal view) with operator
closing delay.
Default setting for electrical connections:
operator installed on left side (internal view)
Electrical connections:
operator installed on right side (internal view)
