DF with control card for DFI
connections

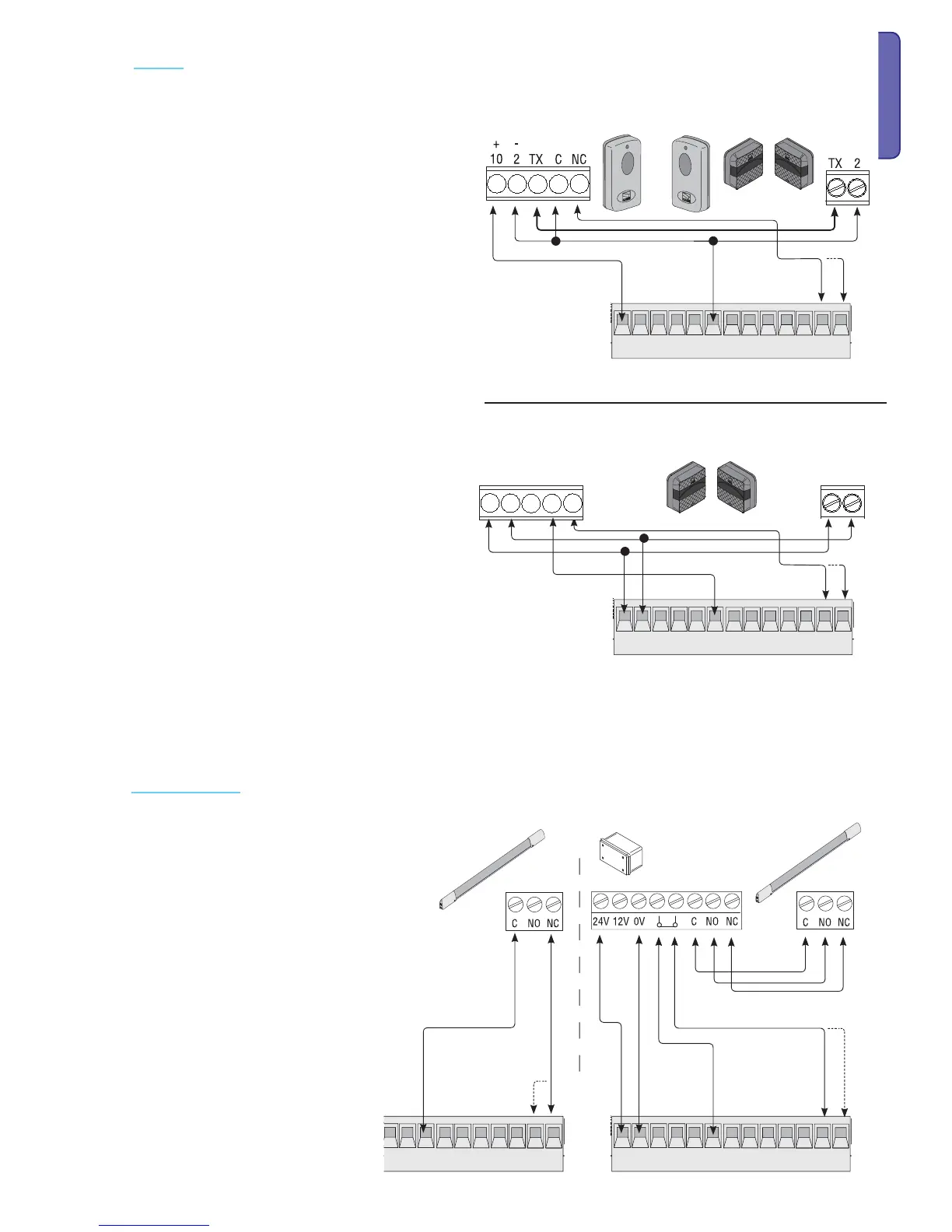

Confi gure contact CX or CY (N.C.), input for sensitive-
safety-edge type devices, that are EN 12978 standards
compliant. See CX input functions (Function F2) or CY
(Function 3) in:
- C7 reopening when closing, while the gate is closing,
opening the contact will invert movement until it is
completely opened;
-C8 reclosing when opening, while the gate is opening,
opening the contact will invert movement until it is
completely closed.
N.B.: if contacts CX and CY are unused, they should
be deactivated when programming.
Photocells
Confi gure contact CX or CY (N.C.), input for
safety devices such as photocells, compliant with EN 12978
standards.
See CX input functions (Function F2) or CY (Function 3) in:
- C1 reopening when closing, while the gate is closing, opening
the contact will invert movement until it is completely opened;
- C2 reclosing when opening, when leaves are opening,
opening the contact will trigger inversion of movement until
completely closed;
- C3 partial stop, leaves stop if moving with consequent
triggering of automatic closing (if automatic closing feature
is inserted);
- , obstacle stand-by , stops the leaves if they are moving and
resumes movement after obstacle is removed.
N.B.: if contacts CX and CY are unused, they should be deac-
tivated when programming.
Photocells
DIR
Photocells
DELTA-S
Photocells
DELTA
Sensitive safety edges
