CAME FA40230 User Manual

4
9
19
14
11
5
12
13
17
8
10
15
16
7
6
14
15
16
18
3
2
20
21
24
22
1
23
200
235
230
173
100
81,5
40
120
60
18
p.
5
5 - Manual code:
119 D W 02
119DW 0 2 ver.
2.0
2.0 06/2012
© CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.A. to notify said changes.
ENGLISH

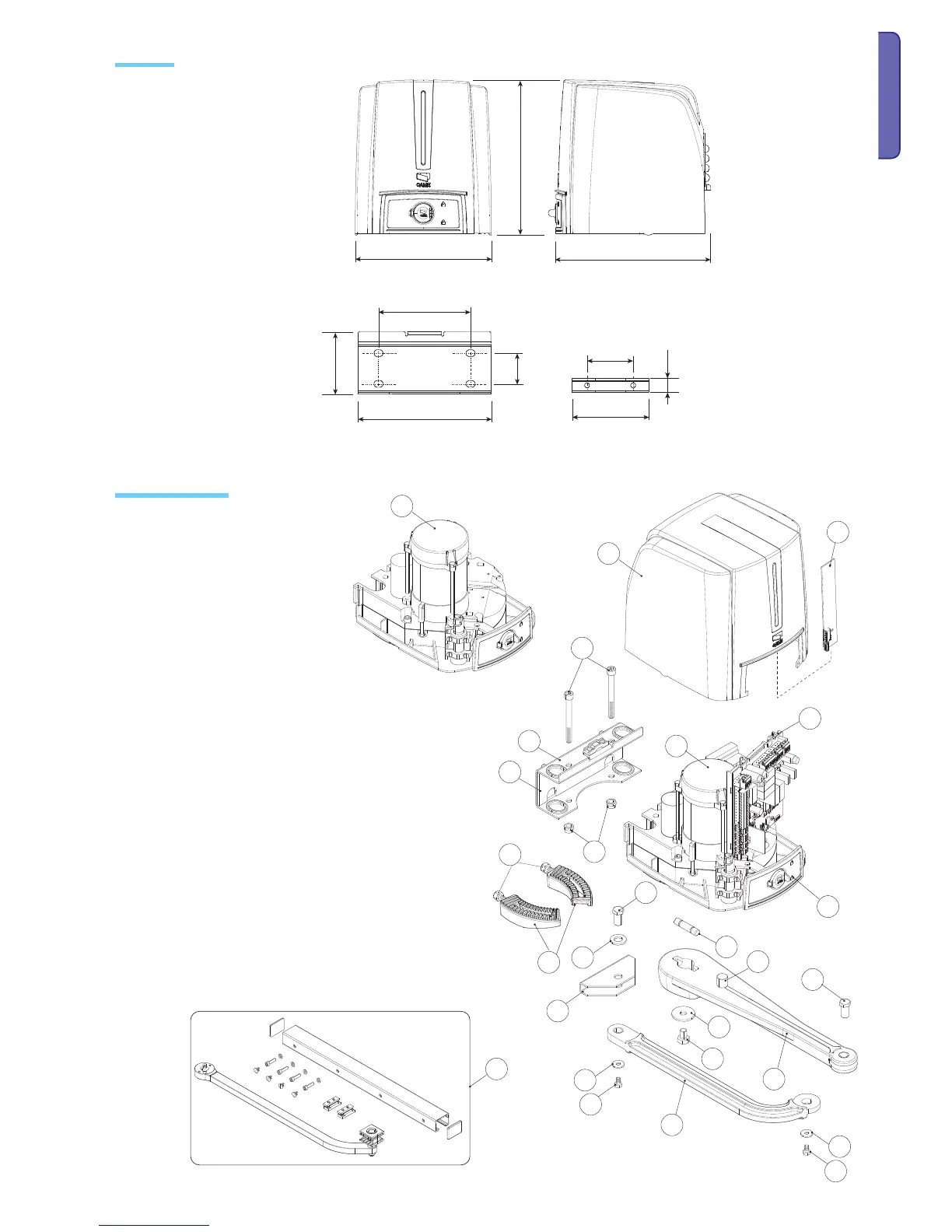

Main component parts
1. Cover
2. FA40230 gearmotor
3. FA40230CB gearmotor
4. ZF4 electronic board
5. Post-fastening bracket
6. Transmission arm
7. Drive arm
8. Gate-fastening bracket
9. Release hatch
10. Mechanical endstops.
11. UNI5931 M8x80 gearmotor fastening bolts
12. UNI7474 M8 nuts
13. limit-switch adjusting grub screws
14. Arm pin
15. UNI6593 Ø6 washer
16. UNI5739 M6x10 bolt
17. UNI6592 ø12 washer
18. Rubber shim
19. Ø10 plug
20. Slow shaft washer
21. UNI5739 M10x14 bolt
22. FA001 LED card
23. Transmission arm pin
24. Straight arm with 001STYLO-BD slide guide (optional
accessory)
Gearmotor
F
astening bracket
Dimensions

CAME FA40230 Specifications

General

Brand	CAME
Model	FA40230
Category	Gate Opener
Language	English
