ENGLISH

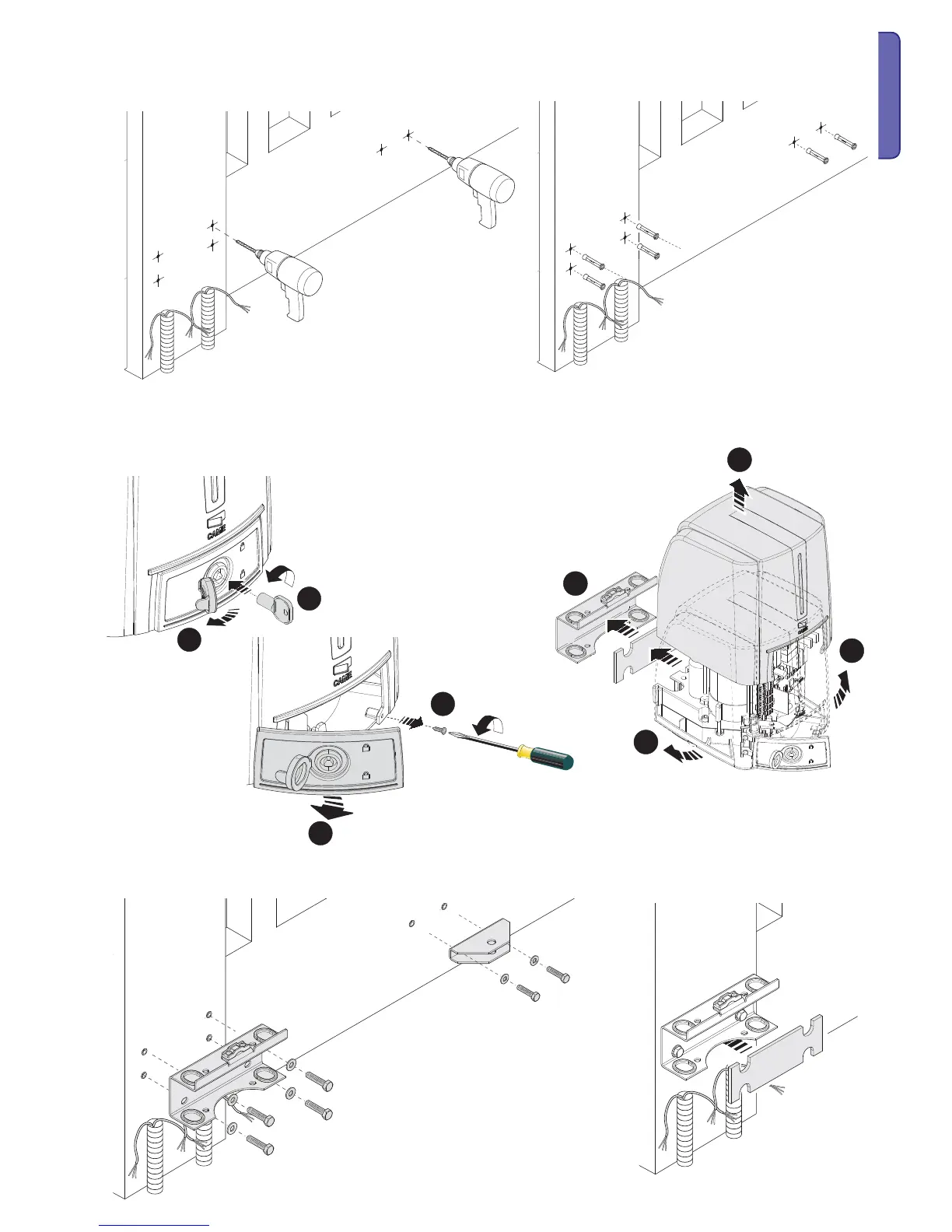

Mark the fastening points for fastening the bracket to the post and for the fastening bracket to the gate. The centre distances of the bracket holes are
shown in the paragraph about dimensions. Drill the fastening hole points, insert the plugs or use suitable inserts to hold the brackets.
Note: the illustrations are indicative. It is up to the installer to decide on the best solution depending on the thickness of the gate wing.
Before installing the operator, remove the gearmotor cover. Remove the cap protecting the release override hatch lock, fi t the key into the lock and turn it
(Π().
Open the ha
tch and turn the screw that fastens the cover to the gearmotor (Ž ().
Lift the cover slightly from the sides ().
Remove the gearmotor fastening bracket ().
F
asten the brackets with suitable screws. Insert the rubber shim into the post fastening bracket.
